Security handles for exterior doors FSB 7382 ZA ALU

Product code
MB00001312
All prices include VAT
From €224.37
From €224.37
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Aluminium security handles for exterior doors with cylinder guard FSB 7382 ZA
Manufacturer - FSB (Germany)

    • solid steel sub-construction with high intruder resistance
    • elegant FSB design backplate in various finishes

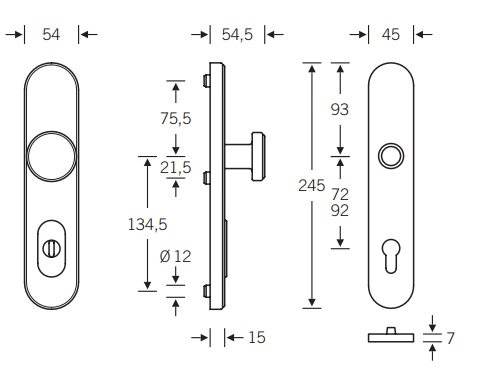

    • exterior backplate size: 246 x 54 mm, thickness: 15 mm
    • interior backplate size: 245 x 45 mm, thickness: 7 mm
    • centre distance: 72 mm / 92 mm
    • spindle: 8 mm / 10 mm
    • fixed supporting lugs: Ø 12 mm
    • connecting concealed screws
    • standard door thickness: 40-45 mm / 65-69 mm / 75-79 mm / 88-92 mm
    • cylinder protrusion for backplates with cylinder guard: 8-16 mm
    • standard set with handle model FSB 1107 on the inside; may be combined with any other FSB handle model in matching finish (on request)
    • ES1 / WK2 security grade
    • corresponds with DIN 18257 requirements, security grade 2/4 according to DIN EN 1906 and DIN V ENV 1627-1630 requirements
    • handle FSB 1107 length: 136 mm
    • mounting template available for precise drilling for fastening through the door (rent or purchase)
    • material aluminium anodised:
      • F1-natural aluminium tone
      • F2-new silver tone
      • S4-bronze tone, textured matt
      • S5-medium dark bronze tone
      • S7-dark bronze tone
      • S8-black
      • powder-coated in black (RAL9005), white (RAL9016), anthracite (RAL7016) or grey-brown (RAL8019) tone.


If you wish to order a colour that is not available in our online shop, please select the relevant item and quantity to order, indicate the colour in a comment and complete your order. We will send you the information regarding the estimated delivery time and price.
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Security handle set handle/handle S2, PZ/92,15 mm, black RAL9005
    Security handle set handle/handle S2, PZ/92,15 mm, black RAL9005
    Code: SB00002206
    Art. Nr.: 2 73 7382 02512 F1M
    Price:
    From €224.37
    In Stock: 0 kit
backplate/rose shape round
backplate/rose size 54 x 246 mm (ārējā uzlika); 45 x 245 mm (iekšējā uzlika)
cylinder guard yes
cylinder guard changeable
centre distance PZ 72 / 92 mm
centring lug diameter 12 mm
compatibility standard German (DIN)
construction safety backplates
construction lever handles on both sides
distance from rose surface to outer edge of handle 58 mm
door direction when ordering please indicate door swing direction
door thickness 40-45 mm / 65-69 mm / 75-79 mm / 88-92 mm
fastening type stable, connected, concealed screws
fastening type stable, connected, concealed screws
fastening type connecting bolts, accessible from inside of door
fire safety related fireproof model available
handle length 136 mm
handle square spindle size 8 / 10 mm
installation template available for sale or rent
leaf material for wooden and metal doors
Manufacturer FSB
material aluminium anodised blasted
material: sub-construction solid steel
outer backplate thickness 15 mm
purpose for exterior doors and doors with increased intruder resistance requirements
security class ES1
