Multi-point lock with hooks for apartment doors KFV AS2502
Manufacturer - KFV

    • multi-point lock with 3 locking points
    • all locking components are operated by key
    • suitable for both left and right hand doors
    • anti-intruder protection with multiple bolts
    • compatible with standard door hardware
    • standardised routing template

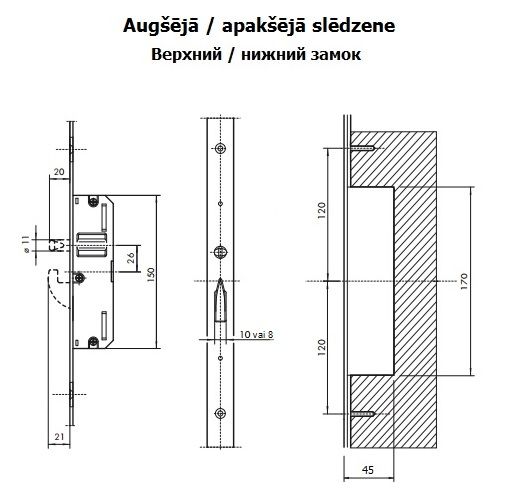

    • main lock compatible with profile cylinder and has 2 auxiliary locks on either side, with hooked bolts
    • spindle depth D: 55 mm, 65 mm
    • centre distance: 72 mm
    • key-retractable latch, double throw bolt projection: 20 mm
    • main lock with lined holes for screws up to M6 - for fixing backplate into its place
    • handle spindle square: 8 mm
    • all locking components are bright nickel-plated, all lock cases - galvanised and closed
    • face plate width: 20 mm
    • available finishes: light galvanised
    •

Security features
    • hooked bolts prevent intruders from prising the door open and secure high back-pressure protection
    • tempered steel elements notably improve lock durability
    • main lock deadbolt is secured against sawing and thus hinders break-in attempts

Advantages
    • high security with solid hooked bolts
    • door tightening ensures an optimal seal to prevent draughts
    • the tight seal provides sound and heat insulation
    • smooth latch-lever mechanism is easy to use
    • the lock retains its perfect functionality even after prolonged and intensive use
    • the patented technology guarantees easy and accurate fitting
    • the hooks lock from the bottom up thus preventing the door from warping and securing tight sealing

Areas of use
    • for apartment buildings
    • for DIN frames

Set
Separate strike plates:
  • central 15-530E + upper/lower 3615-530Q/31
  • central 19-503 V + upper/lower 3619-503V-31
  • central SLK 881-083 A /DZM 402-00031 +  upper/lower SLK 2600-267-2W/31

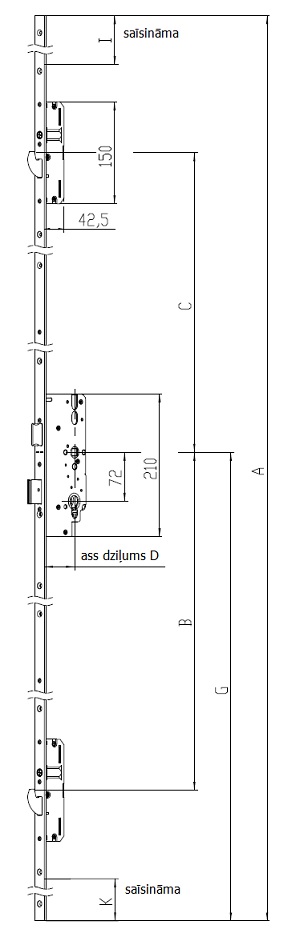

Milling sizes
Cutter type  A
Total length
 (mm)
 B
Distance from handle centre to lower part centre (mm)
 C
Distance from handle centre to upper part centre (mm)
 G
Distance from handle centre to bottom (mm)
 I
Max face plate shortening from top (mm)
 K
Max face plate shortening from bottom (mm)
 B001  2170  760  730  1020  290  130
 B003  2400  760  980  1020  270   130
 B298  2170  760  605  1020   415  130







All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. AS-2502-QF 55/72-20-8, B001, brightly galvanized
    AS-2502-QF 55/72-20-8, B001, brightly galvanized
    Code: SB00003935
    Art. Nr.: 49 490117
    Price:
    From €129.95
    In Stock: 10 pc.

Additional products

  • Products
  • Price
  • In Stock
  • Quantity
  1. 8035-45-F-20/31 Face plate extension for multi-locks AS, 20x3x400 mm, light galvanized
    8035-45-F-20/31 Face plate extension for multi-locks AS, 20x3x400 mm, light galvanized
    Code: SB00003300
    Art. Nr.: 49 119274
    Price:
    From €15.69
    In Stock: 9 pc.
bolt projection 20 mm
centre distance PZ 72 mm
class as per EN 12209 (DIN 18251) class 3 according to DIN 18251-3 / class 6 according to EN 12400
compatibility standard German (DIN)
door direction universal use for DIN right and left hand doors
face plate width 20 mm
face plate finish gaiši cinkota
face plate length 2170-2400 mm
face plate shape square
fire safety option for fire safety doors available on request
handle square spindle size 8 mm
installation type mortise
latch key-retractable (central lock)
latch type bolts (round bolts)
leaf material for wooden, metal and framed doors
load capacity high
lock bolt double turn (central lock)
lock case galvanised closed
lock cutter type B001 / B003 / B298
lock operation mechanical
lock operation type with key
lock type multi-point lock for hinged doors
locking elements polished nickel-coated
locking function PZ - with profile cylinder hole
Manufacturer KFV
number of locking points 3
possible spindle depth 55/65 mm
purpose for exterior doors
round bolt diameter 11 mm
round bolt projection 20 mm
sound insulation yes
