118.13 Profix 2 NORMAL CLOSED electric strike 10-24V without latch release

Product code
SB00009120
Art. Nr.
8 118.13
All prices include VAT
From €62.96
In Stock. Available: 8 pcs.
  • Buy 10 for €59.81 each and save 5%
Would like different processing and/or package?
pc.
The selected product is currently out of stock.
NORMAL CLOSED electric strike 10-24V without latch release 118.13 ProFix® 2
Manufacturer: EFF-EFF

    • voltage: 10-24 V AC/DC
    • retrofittable EMS for all standard doors and standard locks
    • adjustable (3 mm) static radius latch, adjustment step 0.5 mm
    • compact size, suitable for all door types
    • symmetrical shape
    • universal for left and right hand doors
    • tested in 250.000 continuous test cycles

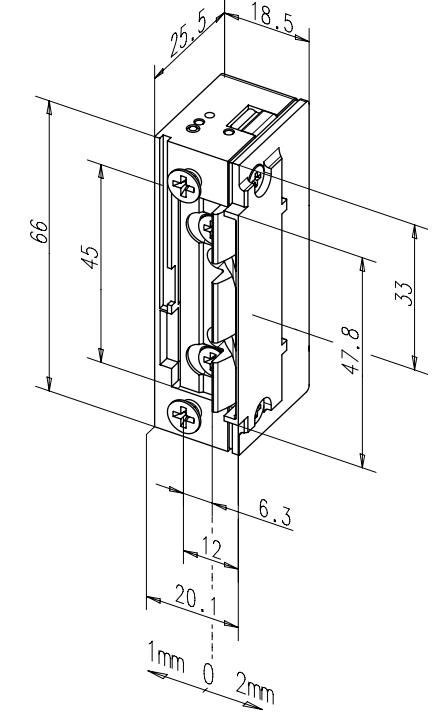

    • casing height: 66 mm; width: 16 mm; depth: 25.5 mm
    • resistance: 3750 N
    • operational temperature range from -15°C to +40°C
    • vertical and horizontal installation available
    • maximum pressure resistance for sealed doors when connected to relevant voltage:
      • AC 12V = 200N
      • AC 24V = 250N
      • DC 12V = 50N
      • DC 24V = 200N
    • material - zinc alloy

anti-intruder security 3750 N
body dimensions 66 x 16 x 25.5 mm
door direction universal use for DIN right and left hand doors
electric strike type NORMAL CLOSED without release
fire safety not suitable for fire safety doors
installation type horizontal or vertical
latch adjustable and lockable
maximum pressure resistance when AC 24V 250 N
maximum pressure resistance when AC 12V 200 N
maximum pressure resistance when DC 24V 200 N
maximum pressure resistance when DC 12V 50 N
Manufacturer EFF-EFF
material zinc alloy
operational temperature range -15°C līdz +40°C
product type electric strike
supply voltage 10-24 V AC/DC
