Wall ventilator with heat recovery AEROTUBE AZ/WRG smart

Wall ventilator with heat recovery AEROTUBE AZ/WRG smart
with G3 filter, heat recovery and sound absorption
Manufacturer - SIEGENIA-AUBI (Germany)

• • innovative and economical solution with heat recovery during air supply/extraction
  • all functional elements are positioned in the pipe which gives the casing a discreet design and provides controlled, custom-adjusted ventilation at a high level of comfort
  • convenient, state-of-the-art control via a free mobile app
  • controlled, noiseless improvement of air quality in living areas
  • automatic control of ventilation and air humidity according to changes in room conditions
  • prevents accumulation of moisture and growth of mould
  • ensures a healthy climate in rooms without compromising security: ventilation is possible also when residents are away and windows are shut
  • up to 90% heat recovery (AEROTUBE WRG smart)
  • temperature and humidity sensors

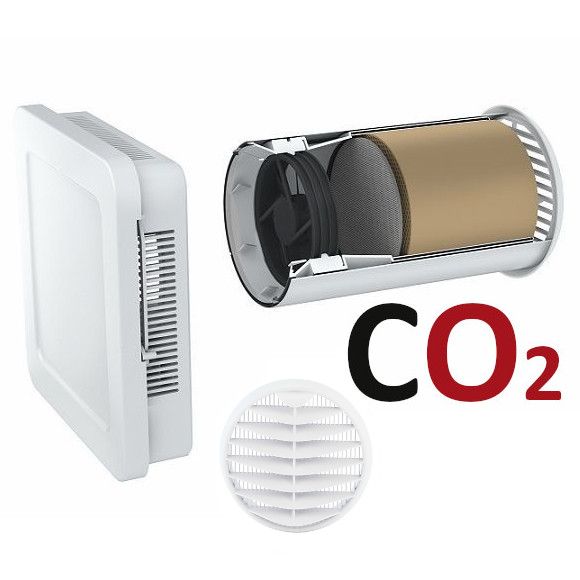

  • optionally available with CO₂ regelation
  • sound absorption depending on model: up to 35 dB (WRG smart)
  • in combination with a vent duct, sound absorption increases by 4 dB
  • air supply and extraction with the motor of the ventilator

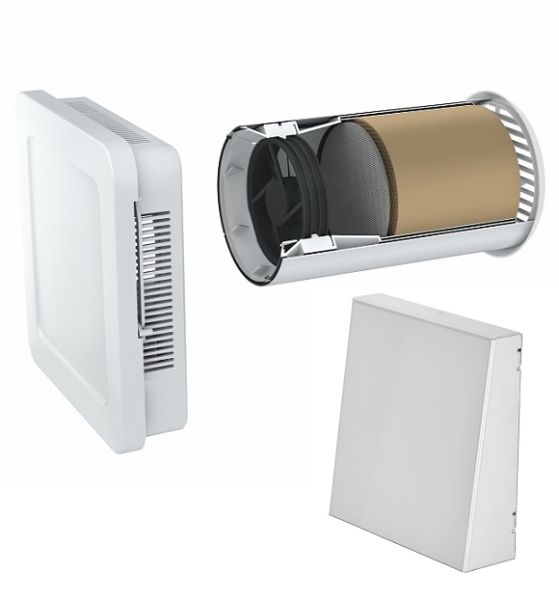

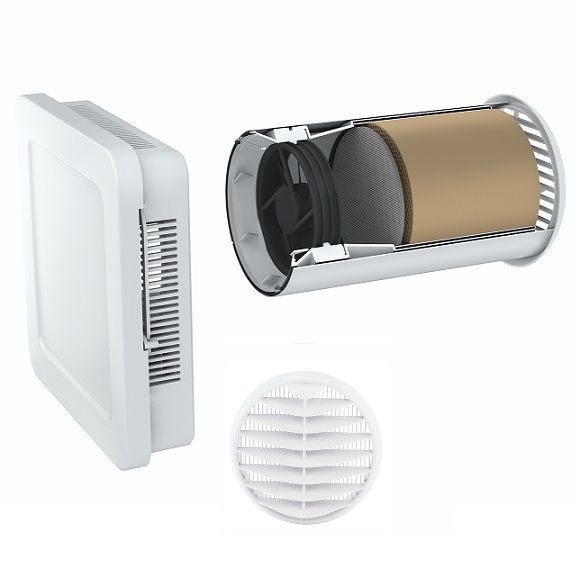

  • all functional elements are positioned in the pipe
  • special construction openings with adjustable cover flaps
  • remote control available via the free SI Comfort App on a smartphone or a tablet
  • suitable for both renovated and new buildings
  • with manual lock or optionally with electric lock
  • intelligent networking without a separate cable
  • the air direction can also be assigned after the installation
  • 3 ventilation modes to select on your device
  • setup of continuous ventilation control via mobile app
  • efficient automatic humidity control
  • combined 2 device setup available with operation across rooms
  • dimensions: 279 x 279 x 63 mm, standard colour: white
  • pipe length: 500 mm
  • pipe diameter: 160 mm
  • suitable for external walls of thickness up to 500 mm, minimum wall thickness 270 mm
  • air throughput up to 45 m3/h (WRG smart); 58 m3/h (AZ smart)
  • energt label A+ (WRG smart)
  • device self-noise: up to 46 dB(A)
  • filter: G3
  • indicates on the device and in the app when a filter change is required
  • LED status indicator
  • compatible with vent duct EPP

---

Installation

• the device requires a supply voltage of 230V
• Ø162 mm milling in wall

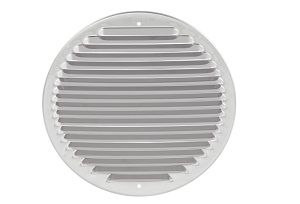

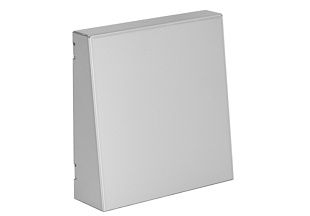

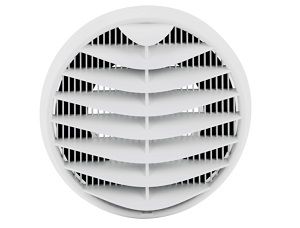

• device set includes a weather grille in white finish

Models

• AEROTUBE WRG smart: ventilation device with switchable air supply and extraction modes with heat recovery (supply/extraction cycle switches every minute)
• AEROTUBE AZ smart: ventilation device, used as an air supply or air extraction unit

---

Heat recovery process:
Extraction:

• The heat from the extracted air is collected in ceramic storage containers.
• Air direction changes from extraction to supply within the one-minute cycle.

Supply

• Heat is returned to the supplied air

---

Functions

• controlled ventilation
• AEROTUBE WRG smart: switchable air supply and extraction modes with heat recovery
• AEROTUBE AZ smart: used as an air supply or air extraction unit
• coarse dust filter
• sound absorption
• humidity control

Advantages

• options for various ventilation requirements, using a single device or a pair
• high energy efficiency, the automatic ventilation control adjusts airflow to room conditions
• healthy room climate and protection against moisture damage to the building
• heat recovery up to 90% (Aerotube WRG), air supply/extraction with ventilator or on the basis of the natural pressure differential
• discreet design that takes up little space - all functional elements are positioned in the pipe
• high comfort in use due to remote control via smartphone or tablet
• convenient installation in both renovated and new buildings
• manual locking or electric locking (with smart device)
• intelligent networking without a separate cable
• air direction may be assigned after installation
• efficient humidity control

---

---

AEROTUBE modes of operation

---

VIDEO: AEROTUBE application




VIDEO: AEORTUBE WRG smart. Change of filter.
