Module SIEGENIA IO

Product code
MB00009316
All prices include VAT
From €288.54
From €288.54
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.

Module IO / IO-smart for connecting SIEGENIA solutions with external devices

Manufacturer - SIEGENIA (Germany)

  • connects external products with SIEGENIA devices and SIEGENIA Comfort App
  • suitable for external devices and systems from various manufacturers
  • intended to integrate SIEGENIA solutions into third-party systems or to integrate third-party drives into the SIEGENIA world, for example: using SIEGENIA access control system for operating garage doors or automated doors, or for using external intercom system to operate SI-BUS type motorised door drive
  • compatible with GENIUS, AS 3500, AS 3600 and AS 3600 with A-Öffner
  • compact design for surface mounting or incorporation
  • installation in standard cavity wall boxes and flush-mounted boxes
  • 2 SI-BUS interfaces for digital, encrypted communication
  • operation and control via SIEGENIA Comfort App: with WLAN chip in IO smart module or via the connected SIEGENIA access control system

Module variants:

IO module: external device connection with SIEGENIA drives / external drive operation with SIEGENIA access control systems
IO smart module: with WLAN chip- external system connection with SIEGENIA drives and control via SIEGENIA Comfort App

Technical data
  • operating voltage: 19 V DC - 32 V DC
  • power consumption: 1.2 W
  • switching capacity of outputs: <1000 mA
  • switching capacity of outputs: 24 V C
  • encryption: AES 128 Bit
  • 2 potential-free inputs
  • 2 potential-free outputs
  • protection class: IP20
  • safety grade: III
  • WLAN frequency (IO smart): 802.11 b/g/n, 2.4 GHz, 150 MBps


INSTRUCTIONS and ADDITIONAL INFORMATION



ANALOGUE connection and SIEGENIA Comfort App IO module smart + A-Öffner 2.2
Device coupling in analogue connection is not possible or necessary!


All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity

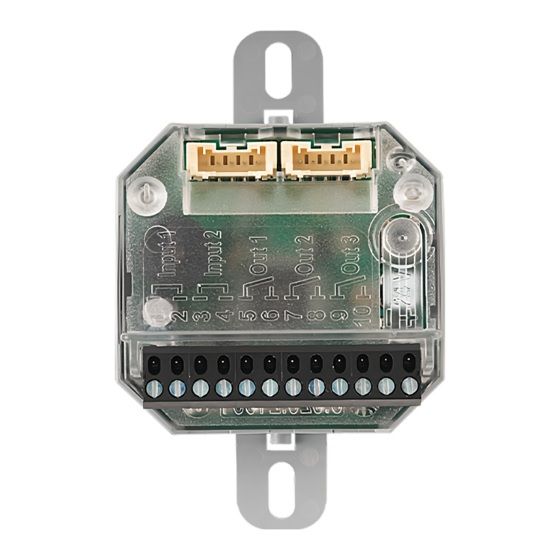

  1. Module IO
    Module IO
    Code: SB00019831
    Art. Nr.: 3510886
    Price:
    From €288.54
    In Stock: 0 pc.

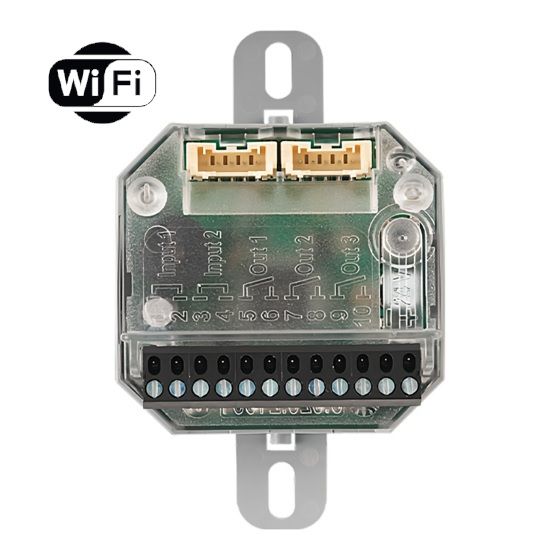

  2. Module IO SMART
    Module IO SMART
    Code: SB00020196
    Art. Nr.: 3510884
    Price:
    From €336.39
    In Stock: 1 pc.
Wi-Fi 802.11 b/g/n, 2.4 GHz, 150 MBps
Bluetooth No
body dimensions 48.4 x 50.4 x 31.5 mm
bundling options AS-3500, AS-3600, Genius, drive A-Öffn
Datu pārraide Wi-Fi (IO smart)
device control via SIEGENIA Comfort App (SMART)
Ieeju skaits 2
installation type flush-mounting / surface mounting
IP rating IP20
Izeju skaits 2
Kodēšana AES 128 Bit
Manufacturer SIEGENIA
nominal current consumption 1.2 W
operating voltage 19 V DC - 32 V DC
