Door closer DC700 with guide rail G195
Product code
DC700-G195-1
From €235.35
Questions and answers

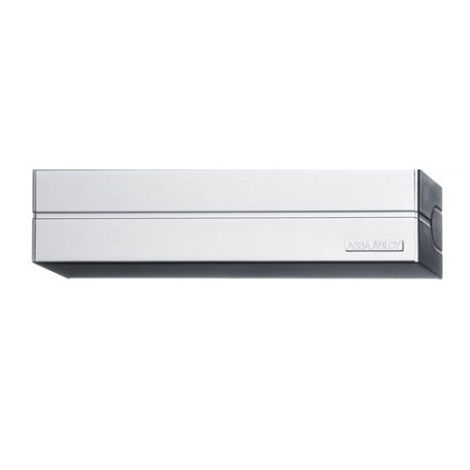

Door closer ABLOY DC700 with guide rail G195
Ražotājs - ABLOY
- CamMotion® technology ensures lower resistance to opening
- modern and compact design
- certified according to DIN EN 1154, sizes 3-6
- suitable for smoke and fire safety doors (combined with integrated concealed mounting plate)
- suitable for both left and right hand doors
- complies with barrier-free building requirements according to DIN 18040 and DIN SPEC 1104 / CEN TR 15984
- may be adapted to almost any door or frame installation type
- height-adjustable (2mm) guide rail G195 with concealed fastening screws
- 4 installation types: hinge side or opposite hinge side; standard (leaf) or frame installation
- axis continuously height adjustable up to 14 mm
- front adjusted closing speed, latching action and opening restrictor
- thermodynamic valves ensure that the performance is consistent and unaffected by variations in temperature
- adjustable closing force EN 3-6
- door leaf width up to 1400 mm
- max opening angle: 160º
- adjustable range for both opening restrictor and latching action
- same size versions with and without mounting plate
- closing speed: continuous adjustment 170°-10°
- latching action: continuous adjustment 10°-0°
- opening restrictor: continuous adjustment from 75°
- max door opening angle with door closer hinge side: approx. 170°
- max door opening angle with door closer opposite hinge side: approx. 120°
- closer profile size (length x height x depth): 272 x 64 x 58 mm
- standard colour: silver tone EV1
- clolurs on request: white RAL9016, brown RAL8014, black RAL9005, stainless steel look and others
Auxiliary tools
Hold-open device A152
- mechanical hold-open device for doors that sometimes need to be secured in the open position
- suitable for ABLOY door closers with guide rail
- easy fitting into guide rail G893
- max hold-open angle: 120º
- adjustable holding force
- not suitable for use in fire and smoke safety doors
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
Durvju aizvērējs DC 700 EN3-6, sudraba tonīCode: SB00009259Art. Nr.: DC700_120200Price:From €217.80In Stock: 4 pc. -
G195 guide rail, installed from outside, silver toneCode: SB00009668Art. Nr.: DCG195----EV1Price:From €17.55In Stock: 4 pc.
-
A104 mounting bracket for guide rail, silver toneCode: SB00009263Art. Nr.: DCA104-----EV1-Price:From €10.61In Stock: 0 pc.
-

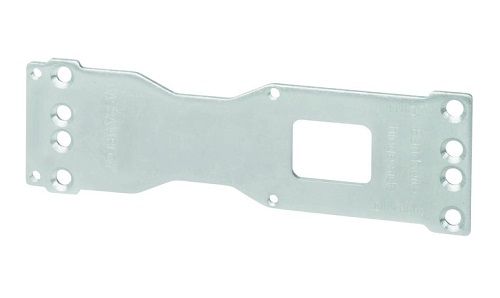

A120 mounting plateCode: SB00009660Art. Nr.: DCA120-------40Price:From €5.20In Stock: 0 pc.
-
DC153 opening restrictor for guide railCode: SB00009638Art. Nr.: DC153_000500Price:From €12.10In Stock: 4 pc.
-
A152 HOLD-OPEN device for guide rail DC893Code: SB00009637Art. Nr.: DC152_000500Price:From €17.23In Stock: 0 pc.
| Manufacturer | ABLOY |
|---|---|
| Series | DC700 |
| closer operating type | hydraulic closer |
| closer type | with a track |
| track type | G195 |
| application | for hinged doors |
| installation type | to be screwed on door leaf/frame |
| Vērtņu skaits | 1 vērtne |
| fire safety | suitable for fire safety doors |
| closing force | size 3-6 according to EN 1154 |
| closing force adjustment | continuous control with valve |
| back check | hydraulically adjustable |
| maximum single leaf width | up to 1400 mm |
| latching action | adjustable with valve |
| hold open | built-in |
| doorstop | built-in |
