Heavy duty butt hinges BSW RD 818/89
Manufacturer - BSW (Germany)
Installation
Manufacturer - BSW (Germany)
-
- rounded, non-lift-off butt hinges for heavy doors
- suitable for both left and right hand doors
- rounded shape
- self-lubricating bearing technology
- removable axle
- offset roller shaft: Ø15 mm
- hinge size: 89 x 89 mm
- max load capacity 140 kg (2 hinges per leaf)
- material thickness: 3 mm
- screws: 4,5x40 mm

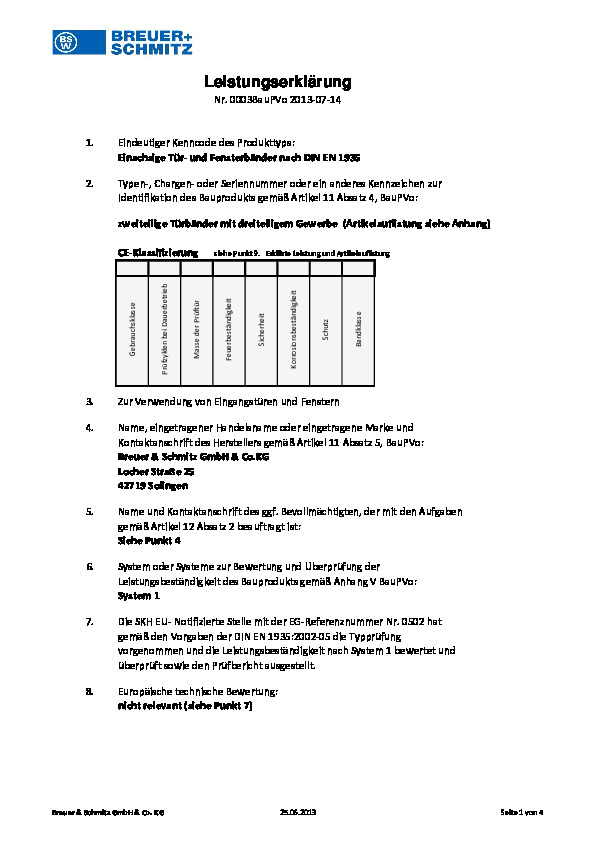

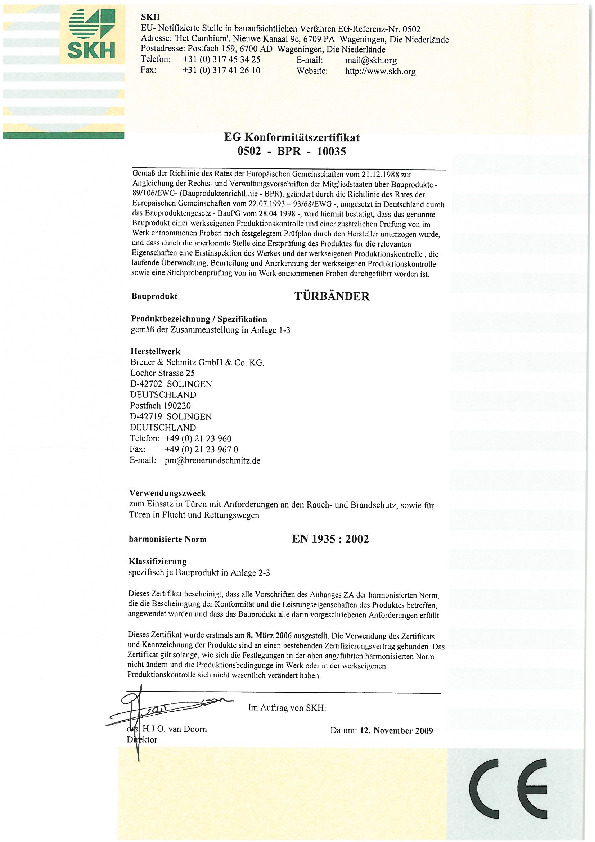

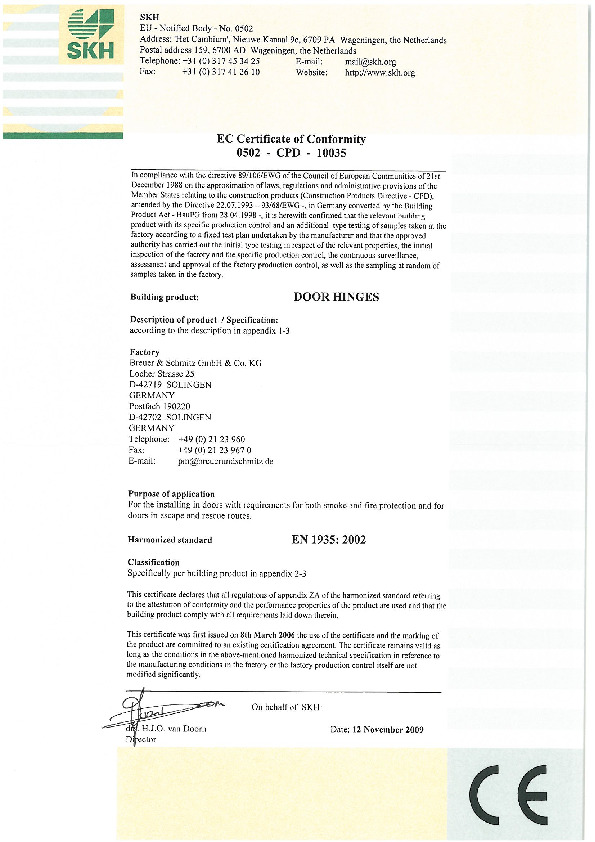

- complies with EN 1935 requirements, CE certificate approved
- material:
-
-
- stainless steel, matt (STD)
- steel, galvanised (GV)
-
Installation
- All maximum load data indicated in the Technical Data refer to the use of two hinges on a door set of 2000 x 1000 x 40mm. To calculate the adjusted leaf weight that represents its actual load and determines the choice of hinges, please bear in mind the following additions:
- use of door closer: +37%
- automatic operator: +50%
- door stop (>60% of door width): +50%
- extra wide door per cm (up to 120cm total width): +1,5%
- In order to choose appropriate hinges for wider doors and in case of other inquiries please contact our specialists.
- Using a third hinge generally does not increase the maximum load, as it often is placed in the middle between the top and the bottom hinge to prevent the door leaf from warping or to create a symmetrical look. We recommend installing a third hinge 350 mm below the top hinge for extra wide doors or if using a door closer or automatic operator, to support the top hinge.
- To achieve the maximum load it is preconditional that:
-
- the hinges are fixed in line precisely and professionally;
- the screws used for installation are those recommended by the manufacturer;
- the frame is stable and firmly fixed to the wall.
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
Hinge RD 818 89x89 mm, stainless steel, right/leftCode: SB00000274Art. Nr.: 818000890891620Price:From €17.13In Stock: 49 pc.
| width | 89 mm |
|---|---|
| adjustment | not adjustable |
| anti-corrosion resistance | class 4 according to EN 1935 - very high |
| anti-intruder protection | no |
| base assortment | Yes |
| class as per EN 1935 | class 4 |
| corner radius | R10 |
| door construction | for non-rebated doors |
| door direction | universal use for DIN right and left hand doors |
| fastening elements | must be ordered separately |
| fire safety | suitable for fire and smoke safety doors |
| groove for leaf seal | no |
| height | 89 mm |
| hinge shape | rounded |
| hinge type | heavy duty hinge |
| knuckle diameter | 15 mm |
| leaf maximum weight | 140 kg |
| leaf material | wood |
| load capacity | high |
| maintenance | not required (self-lubricating bearings) |
| Manufacturer | BSW |
| material thickness | 3 mm |
| material | steel / stainless steel |
| suitable for aluminium frames | suitable |
| suitable for industrial frames | suitable |
| suitable for steel frames | suitable |
| suitable for timber frames | suitable |
