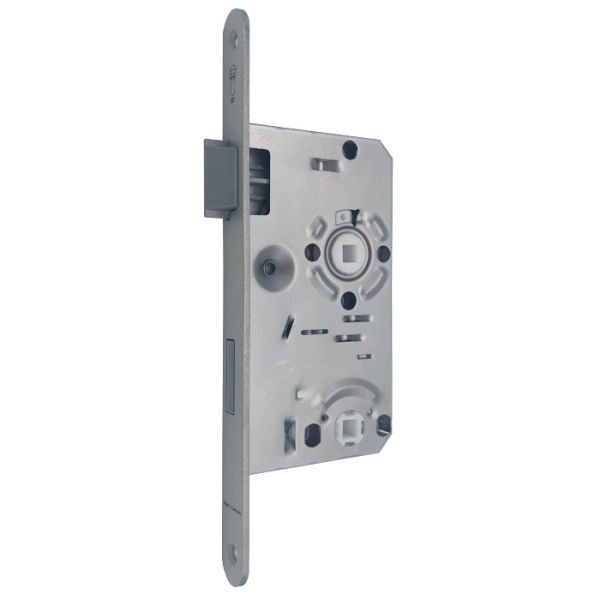

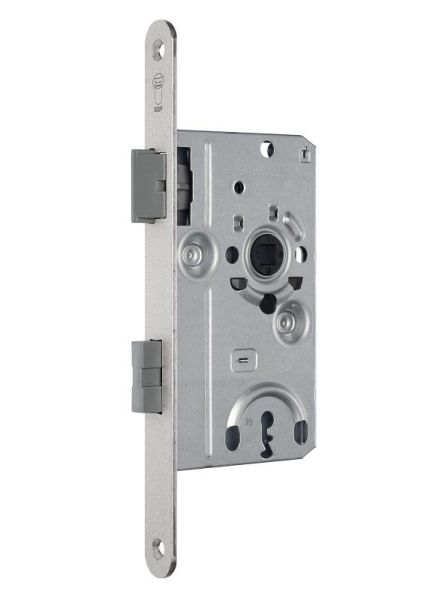

Mortise lock SSF Si 10
Product code
MB00000057
All prices include VAT
From
€5.00
Only %1 left
Mortise lock SSF Si 10
Manufacturer – SSF-
- grade 1 lock for light interior doors
- closed galvanised lock case
- additional protection for mechanism in handle and lock part
- locking types: BB and WC
- unchangeable opening direction
- spindle square hole diameter: 8 mm
- polyamide handle hole, latch and bolt
- spindle depth D: 55 mm
- centre distance for BB locks: 72 mm, for WC locks: 78 mm
- brightly galvanised key
- face plate - rounded, titanium tone
- standard face plate width 20 mm
- classification code according to EN 12209 (Si 10 BB) : 1 H 4 0 0 B 1 B D 2 0
- available finishes: varnished titanium tone
-
- face plate width - 18 / 24 mm
- rectangular face plate shape
Dokumentācija
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
Mortise lock Si 10 BB 55/72, titanium laquered, LHCode: SB00002721Art. Nr.: V1001 01/101GPrice:From €5.00In Stock: 24 pc. -
Mortise lock Si 10 BB 55/72, titanium laquered, RHCode: SB00002722Art. Nr.: V1001 01/102GPrice:From €5.00In Stock: 16 pc.
-
Mortise lock Si 10 WC 55/78, titanium laquered, LHCode: SB00002723Art. Nr.: A1001 81/101GPrice:From €5.00In Stock: 38 pc.
-
Mortise lock Si 10 WC 55/78, titanium laquered, RHCode: SB00002724Art. Nr.: A1001 81/102GPrice:From €5.00In Stock: 25 pc.
| Manufacturer | SSF |
|---|---|
| lock type | single-point lock for hinged doors |
| lock operation | mechanical |
| installation type | mortise |
| purpose | for interior doors |
| leaf material | for wooden and metal doors |
| load capacity | low |
| class as per EN 12209 (DIN 18251) | class 1 according to EN 12209 |
| fire safety | not suitable for fire safety doors |
| compatibility standard | German (DIN) |
| possible spindle depth | 55 mm |
| door direction | when ordering please indicate door swing direction |
| locking function | BB / WC |
| centre distance BB | 72 mm |
| centre distance WC | 78 mm |
| lock case | galvanised closed |
| latch material | polyamide |
| lock bolt material | polyamide |
| bolt projection | 11 mm |
| lock bolt | single turn |
| sound insulation | no |
| handle square spindle size | 8 mm |
| face plate shape | rounded |
| face plate width | 18 / 20 / 24 mm |
| face plate length | 235 mm |
| face plate finish | titāntonis lakots |
