Heavy duty hinges OBJECTA 2541/160
Manufacturer - BaSys (Germany)
Manufacturer - BaSys (Germany)
-
- height: 160 mm
- roll diameter: 22 mm
- material thickness: 4 mm
- screws: Spax 5
- patented axle technology which allows hinges to be easily changed even on doors that are already hung
- security pin prevents removal of hinge axle, effectively increasing the level of anti-intruder protection
- maintenance-free ball bearing technology with self-lubricating connecting receivers
- increased sliding surface of ball bearings ensure excellent level of functional quality
- complies with DIN EN 1935:2002 requirements
- max load: 170 kg (2 hinges)
- material: stainless steel
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-

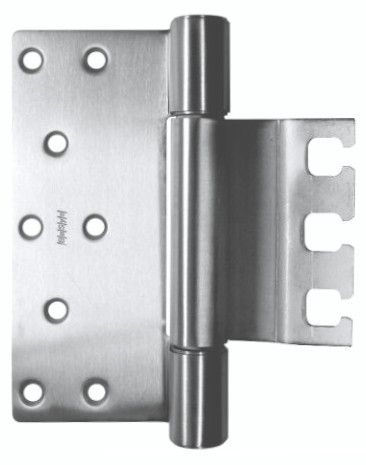

2541/160/56-4 heavy duty hinge for timber and aluminium profiles, st. steelCode: SB00016197Art. Nr.: 039093Price:From €83.71In Stock: 4 pc.
| adjustment | not adjustable |
|---|---|
| anti-corrosion resistance | class 4 according to EN 1935 - very high |
| anti-intruder protection | optional safety pin |
| base assortment | Yes |
| bundling options | 3-D receivers VX 65 mm |
| class as per EN 1935 | class 4 |
| corner radius | R3 |
| door construction | for non-rebated doors |
| door direction | universal use for DIN right and left hand doors |
| fastening elements | must be ordered separately |
| fire safety | suitable for fire and smoke safety doors |
| groove for leaf seal | no |
| height | 160 mm |
| hinge shape | rectangular |
| hinge type | heavy duty hinge |
| knuckle diameter | 22 mm |
| leaf maximum weight | 170 kg |
| leaf material | wood+ALU |
| load capacity | very high |
| maintenance | not required (self-lubricating bearings) |
| Manufacturer | BASYS |
| material thickness | 4 mm |
| material | stainless steel |
| suitable for aluminium frames | suitable |
| suitable for industrial frames | suitable |
| suitable for steel frames | suitable |
| suitable for timber frames | suitable |
