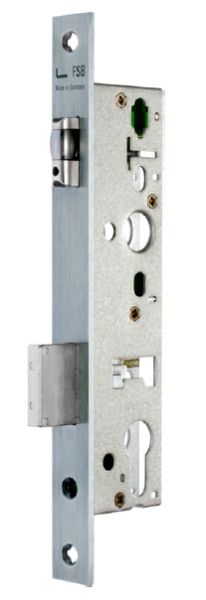

Narrow rolling latch mortise lock Serie 02 RoF
Product code
MB00000263
All prices include VAT
From
€49.44
Only %1 left
Narrow profile rolling latch mortise lock Serie 02 RoF
Manufacturer – SSF-
- drilled-through hole for backplate installation above spindle hole
- bearing shells
- lock type: PZ
- corresponds with DIN 18 251-2, grade 3 technical requirements
- suitable for interior and exterior doors with low to high usage
- spindle depth D: 30 / 35 / 40 / 45 mm
- centre distance: 92 mm
- adjustable rolling latch 2 - 9 mm
- single turn deadbolt with 21 mm throw
- galvanised, top and bottom closed lock case
- nickel-plated latch and bolt
- classification code according to EN 12209: 3C500C3BA20
- face plate: stainless steel
- rectangular face plate
- face plate width: 16 / 20 / 24 mm
Lock types available on request:
- face plate: 20 or 22 mm
- distance D: 25, 30, 50 mm
- U-shape face plate for locks with distance D: 29 / 34 / 39 / 44 mm
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
Framed door rolling latch lock 02, PZ 35/16, st.steelCode: SB00002886Art. Nr.: 100141Price:From €50.94In Stock: 0 pc. -
Framed door rolling latch lock 02, PZ 35/24, st.steelCode: SB00002887Art. Nr.: 100830Price:From €49.44In Stock: 2 pc.
-
Framed door rolling latch lock 02, PZ 45/16, st.steelCode: SB00002888Art. Nr.: 101113Price:From €49.44In Stock: 0 pc.
| Manufacturer | SSF |
|---|---|
| lock type | roller latch |
| lock operation | mechanical |
| installation type | mortise |
| purpose | for interior doors / for exterior doors |
| leaf material | for framed doors |
| load capacity | high |
| class as per EN 12209 (DIN 18251) | class 3 according to EN 122209 / DIN 18251 |
| fire safety | not suitable for fire safety doors |
| compatibility standard | German (DIN) |
| possible spindle depth | 30/35/40/45 mm |
| door direction | adaptable to leaf direction |
| locking function | PZ - with profile cylinder hole |
| centre distance PZ | 92 mm |
| latch material | nickel-coated |
| latch | roller latch, adjustable 2-9 mm |
| lock bolt material | nickel-coated |
| bolt projection | 21 mm |
| lock bolt | single turn |
| sound insulation | no |
| handle square spindle size | 8 mm |
| face plate shape | square |
| face plate width | 16 / 24 mm |
| face plate length | 245 mm |
| face plate finish | nerūsējošais tērauds |
