Concealed hinges TECTUS TE 540 3D

Concealed hinges TECTUS TE 540 3D

Manufacturer - SIMONSWERK (Germany)

The long-term load resistance has been tested for 1,000,000 operating cycles

• completely concealed hinge system for unrebated heavy-duty doors
• for timber, steel or aluminium frames
• 3-dimensional adjustability: side (+/- 3 mm), depth (+/- 1 mm) and height (+/- 3 mm)
• suitable for both left and right hand doors
• opening angle: 180°
• height: 200 mm
• milling Ø: 24 mm
• max load: 120 kg (leaf 1000 x 2000 mm with 2 hinges; distance between 1st and 2nd hinge reference line: 1435 mm)
• min. door thickness: 40 mm
• may be adjusted without removing the door from its frame
• equal cutter size for leaf and frame parts
• maintenance-free bearings
• CE and IFT certified, UL certified
• available finishes:
  • satin chrome look F1

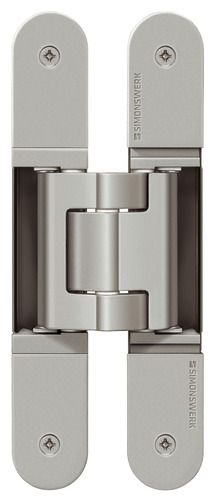

  • satin nickel finish F2
  • polished brass (SW 030)
  • polished nickel (SW 038)
  • satin brass (SW 047)
  • satin nickel (SW 144)
  • RAL 9016 white (SW 070)
  • RAL 9005 matte black (SW 107)
  • stainless steel finish (SW 126)
  • bronze metallic finish (SW 168)
  • light bronze finish (SW 175)
  • dark bronze finish (SW 176)

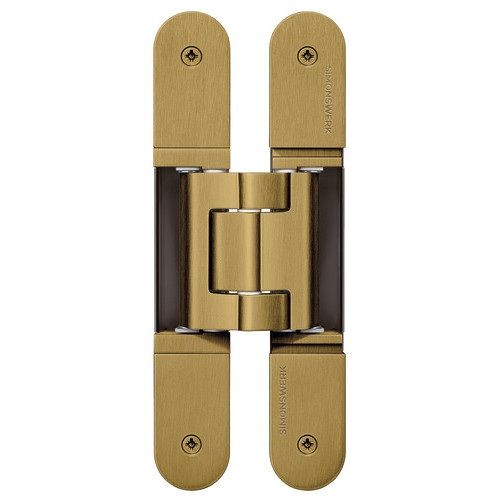

  • NEW! SW 169 antique brass, hairline

Classification code according to DIN EN 1935
4 7 6 1 1 ^*1 1 13
*depending on surface finish

Montāžas instrukcija

Assembly description and milling calculation TECTUS 540

Dokumentācija

IFT certificate of operation for TECTUS hinges

Declaration of performance TECTUS 2 850143 0 00000
