Electric strike EFF EFF 118E.13 A71

Product code
MB00009302
EFF-EFF
main product photo
All prices include VAT
From €72.78
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Fast delivery
Delivery by our transport, a courier, or to a parcel locker
Consultations
with industry profesionals
Book a consultation
Secure payments
Online banking, credit cards, REVOLUT,
Google Pay / Apple Pay / Click to Pay
Service
Manufacturers' catalogues, product documentation etc.

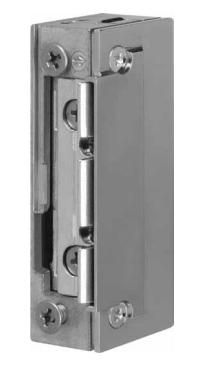

NORMAL CLOSED electric strike 118E.13 Profix2 10-24V AC/DC with latch release

Manufacturer: EFF-EFF (Germany)

    • mortise EMS for all standard doors and standard locks
    • power supply: 10-24 V AC/DC
    • daytime latch
    • adjustable (3mm) static radius latch Profix, adjustment step 0.5 mm
    • compact size, suitable for all types of doors
    • universal for left and right hand doors
    • symmetrical shape
    • casing height: 66 mm, width: 20.1 mm, depth: 25.5 mm
    • tested in 250,000 continuous test cycles
    • resistance: 3750 N
    • operational temperature range from -15°C to +40°C
    • vertical and horizontal installation available
    • maximum pressure resistance for sealed doors when connected to relevant voltage:
      • AC 12V = 200N
      • AC 24V = 250N
      • DC 12V = 50N
      • DC 24V = 200N
    • not suitable for use outdoors
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. 118E.13 Profix 2 NORMAL CLOSED electric strike 10-24V with latch release
    118E.13 Profix 2 NORMAL CLOSED electric strike 10-24V with latch release
    Code: SB00009127
    Art. Nr.: 118E.13---------A71
    Price:
    From €72.78
    In Stock: 8 pc.

Additional products

  • Products
  • Price
  • In Stock
  • Quantity
  1. Mēlīte 118 sērijas Profix2 sprūdam
    Mēlīte 118 sērijas Profix2 sprūdam
    Code: SB00009124
    Art. Nr.: 118.130011 40
    Price:
    From €7.14
    In Stock: 5 pc.
Manufacturer EFF-EFF
Series Eff-Eff 118
electric operation type NORMAL CLOSED (Fail Secure)
strike latch Profix2 / TOP
weather resistance not suitable for outdoor use
daytime latch yes
door direction universal use for DIN right and left hand doors
constant voltage 12V DC
increased PRELOAD with relevant power supply
supply voltage 10-24 V
anti-intruder security 3750 N
maximum pressure resistance when AC 12V 200 N
maximum pressure resistance when AC 24V 250 N
maximum pressure resistance when DC 12V 50 N
maximum pressure resistance when DC 24V 200 N
adjustment adjustable latch
operational temperature range -15°C to +40°C
body dimensions 66 x 20.1 x 25.5 mm
fire safety not suitable for fire safety doors
Certified according to EN 13637 for emergency exit no
