Grade 2 mortise lock Vi22 in bulk packaging
Product code
MB00010079
All prices include VAT
From
€7.26
Only %1 left

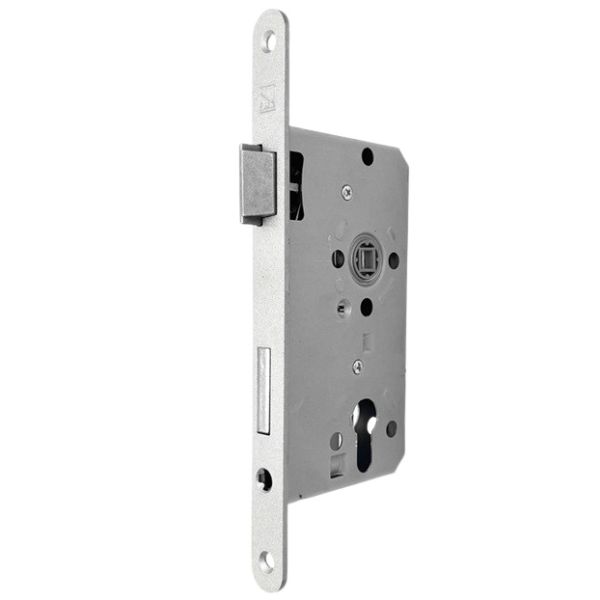

Mortise lock Vi22 in bulk packaging
Manufacturer - SAG
- grade 2 PZ mortise lock for low-use interior doors
- supplied in bulk (without individual packaging)
- closed galvanised lock case
- galvanised cast metal latch and bolt
- 8 mm square spindle follower
- steel handle follower with polyamide bearing bushes
- additional protection for mechanism in handle and lock sections
- backset: 55 mm
- centre distance: 72 mm
- bright nickel-plated key
- key-operated latch with a double key turn
- silve-coloured rounded faceplate
- faceplate widht: 20 mm
- please specify the door handing (left- or right-hand) when ordering.
- classification code according to EN 12209: 2 L 4 0 0 B 2 B C 2 0
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
Vi22 mortise lock PZ 55/20/8/72, silver, LEFT, bulk packagingCode: SB00030246Art. Nr.: 17464W0.55L.150Price:From €7.26In Stock: 100 pc. -
Vi22 mortise lock PZ 55/20/8/72, silver, RIGHT, bulk packagingCode: SB00030247Art. Nr.: 17464W0.55R.150Price:From €7.26In Stock: 100 pc.
| Manufacturer | SAG |
|---|---|
| lock type | single-point lock for hinged doors |
| lock operation | mechanical |
| installation type | mortise |
| purpose | for interior doors |
| leaf material | for wooden and metal doors |
| load capacity | middle |
| class as per EN 12209 (DIN 18251) | class 2 according to EN 12209 |
| fire safety | not suitable for fire safety doors |
| Compatibility standard | German (DIN) |
| possible spindle depth | 55 mm |
| door direction | when ordering please indicate door swing direction |
| locking function | PZ / BB / WC / BAC |
| centre distance PZ | 72 mm |
| centre distance BB | 72 mm |
| centre distance WC | 78 mm |
| lock case | galvanised closed |
| latch material | cast galvanised metal |
| latch | key-retractable (PZ) |
| lock bolt material | cast, galvanised metal |
| bolt projection | 20 mm |
| lock bolt | double utrn (PZ) |
| sound insulation | Soft-Lock latch (additional equipment) |
| handle square spindle size | 8 mm |
| bundling options | may be combined with rolling latch KFV 115B |
| face plate shape | rounded |
| face plate width | 20 mm |
| face plate length | 235 mm |
| face plate finish | Nerūsējošais tērauds / titāntonis lakots / brunēti krāsota / matēts misiņš, melna krāsota |
