ALUMINIUM security handles with CYLINDER GUARD for framed doors KRONOS 2000 K22 ZA ALU
Product code
KRONOS2000-K22-ZA-ALU
Aluminium handle with knob for framed doors KRONOS 2000 ZA K22
Manufacturer - DIECKMANN (Germany)
Manufacturer - DIECKMANN (Germany)
-
- fixed lever handles
- inactive cranked door knob on the outside
- protective cylinder guard
- stable interior and exterior backplate with concealed screws
- interior handle with integrated spring
- suitable for both left and right hand doors
- stable, massive sub-construction
- concealed triple connecting M6 screws
- exterior backplate has punched steel plate for protection against drilling
- click-on cover backplates with stable fixation on backplate side
- metal supporting lugs on exterior backplate Ø10
- backplate length: 246 mm, width: 35 mm
- exterior backplate thickness: 15 mm
- interior backplate thickness: 10 mm
- centre distance: 92 mm
- spindle square: 8 mm
- handle length: 148 mm
- total width of door knob: 93 mm
- distance from backplate surface to handle surface: 59 mm
- distance from backplate surface to door knob surface: 50 mm
- suitable for door thickness: from 68 mm to 107 mm (when ordering, please select fastening set according to door thickness)
- material aluminium anodised:
-
-
- natural aluminium (F1) tone
- bronze tone (F4)
- dark brown (F5)
- stainless steel (F9) tone
- white (F12)
-
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-

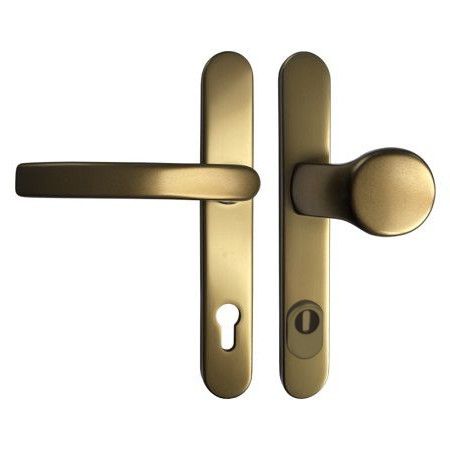

KRONOS 2000 security handle set with knob K22 and cylinder guard, 8/92mm, alum. bronze tone F4Code: SB00020126Art. Nr.: 2000/2045/04Price:From €70.00In Stock: 0 set
-

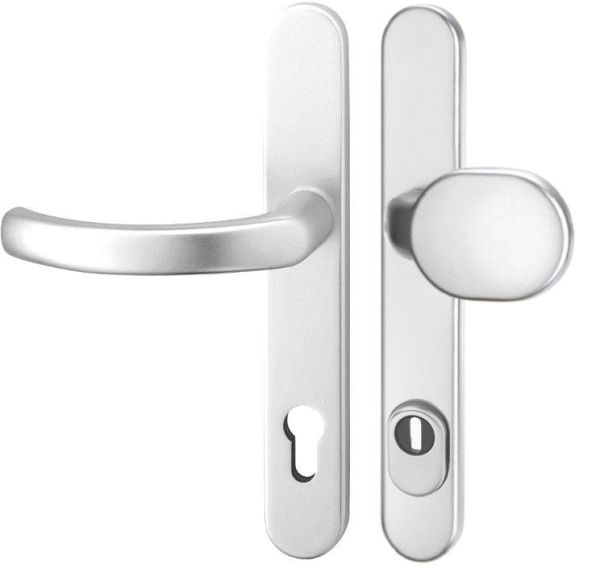

KRONOS 2000 security handle set with knob K22 and cylinder guard, 8/92mm, alum. natural tone F1Code: SB00020966Art. Nr.: 2000/2045/01Price:From €62.15In Stock: 3 set
-

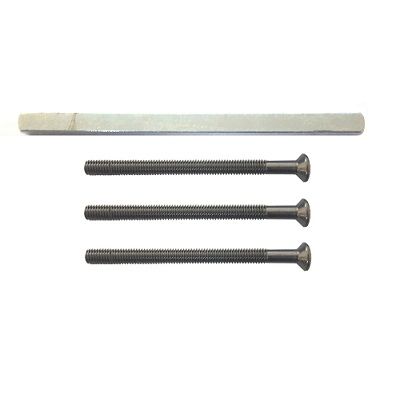

Fastening set No.41 for Kronos handle/knob set, DB 68-72mm. DIECKMANNCode: SB00020323Art. Nr.: 9000/0041/00Price:From €2.94In Stock: 3 kit
-
Fastening set No.51 for Kronos handle/knob set, DB 73-77mm. DIECKMANNCode: SB00020325Art. Nr.: 9000/0051/00Price:From €2.94In Stock: 1 kit
-
Fastening set No.61 for Kronos handle/knob set, DB 78-82mm. DIECKMANNCode: SB00020326Art. Nr.: 9000/0061/00Price:From €2.94In Stock: 9 kit
-
Fastening set No.71 for Kronos handle/knob set, DB 83-87mm. DIECKMANNCode: SB00020336Art. Nr.: 9000/0071/00Price:From €2.94In Stock: 3 kit
-
Fastening set No.81 for Kronos handle/knob set, DB 88-92mm. DIECKMANNCode: SB00020329Art. Nr.: 9000/0081/00Price:From €2.94In Stock: 2 kit
-
Fastening set No.94 for Kronos handle/knob set, DB 103-107mm. DIECKMANNCode: SB00020332Art. Nr.: 9000/0094/00Price:From €2.94In Stock: 2 kit
Manufacturer | DIECKMANN |
---|---|
material | aluminium anodised |
purpose | for exterior doors and doors with increased intruder resistance requirements |
leaf material | for wooden and metal doors |
construction | lever handle / inactive door knob |
security class | not classified |
cylinder guard | yes |
fire safety | not suitable for fire safety doors |
door thickness | 68-107 mm |
compatibility standard | German (DIN) |
door direction | universal use for DIN right and left hand doors |
centre distance PZ | 92 mm |
backplate/rose size | 36 x 245 mm |
backplate/rose shape | round |
outer backplate thickness | 15 mm |
inner backplate thickness | 10 mm |
handle length | 148 mm |
handle square spindle size | 8 mm |
door knob shape | oval |
centring lug diameter | 10 mm |
fastening elements | must be ordered separately |
