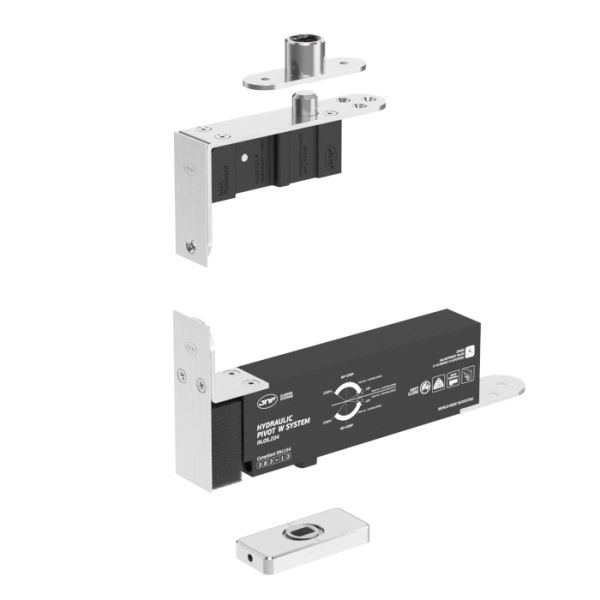

100 Edge Hydraulic pivot with closing system IN.05.204.HO

Hydraulic pivot IN.05.204.HO

Manufacturer - JNF (Portugal)

100 EDGE is number 1 when the project calls for elegance in a compact format and maximum passage efficiency. Installed at the edge of the door, with a fixed axis at 80mm, it enables a clear opening of 1000mm, ideal for spaces where every millimeter matters.

• hydraulic pivot hinge system with an adjustable closing mechanism
• suitable for single- and double-leaf wooden, metal, and aluminum doors without a rebate
• min. door thickness: 40 mm and
• max. door width: 1000 mm
• internationally patented design
• maximum load capacity: 100 kg
• built-in adjustable Soft Close mechanism
• adjustable closing speed: fast/slow
• integrated hold-open system at a 90º angle in both directions
• rotation: +120º / -120º
• door adjustment system: +/-3 mm in all directions in the horizontal plane; Hold-Open position +/- 4°
• installation on the floor without damaging the floor surface
• backset: 80 mm
• material: stainless steel EN 1.4301 (AISI 304)
• available finishes:
  • satin

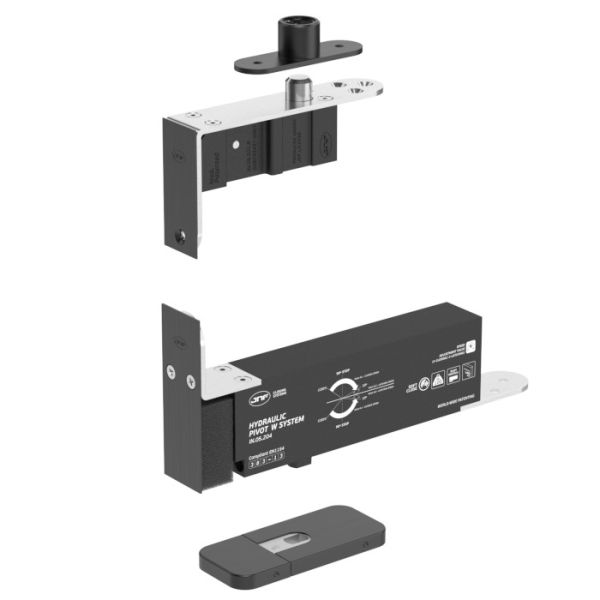

  • PVD TITANIUM black (TB)
  • PVD TITANIUM gold (TB)
  • PVD TITANIUM copper (TCO)
  • PVD TITANIUM chocolate (TCH)
