ATHMER PORTI 5318 opening restrictor for glass doors with metal and aluminium frame
Product code
MB00000852
All prices include VAT
From
€121.82
From
€121.82
Only %1 left
Questions and answers

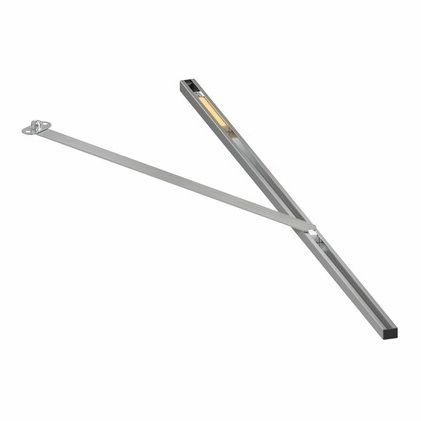

Opening restrictor for glass doors ATHMER PORTI 5318
Manufacturer - Athmer (Germany)
Important guidance:
When selecting door hinges, please take into account the extra load of the opening restrictor.
Use of the product in sandblasted glass doors is not recommended due to the increased risk of glass breaking.
Not suitable for use in wooden frames and swing doors.
Manufacturer - Athmer (Germany)
-
- suitable for all-glass doors with metal frame
- guide rail along full door leaf width for optimum force distribution
- discrete, elegant design
- upper frame clearance: 3.5 - 12 mm
- max opening angle: 120°
- glass type: VSG / ESG, thickness: 8 / 10 / 12 mm
- max door weight: 50 kg
- door width: 709 - 959 mm
- guide rail made of anodised aluminium
- galvanised steel lever, thickness 2 mm
- suitable for retrofitting
- standard length suitable for door width of 959 mm
- may be shortened as required
- suitable for use in rooms with underfloor heating
- tested permanent functionality in accordance with DIN EN 13126-5, grade 4 requirements
- material: aluminium
Important guidance:
When selecting door hinges, please take into account the extra load of the opening restrictor.
Use of the product in sandblasted glass doors is not recommended due to the increased risk of glass breaking.
Not suitable for use in wooden frames and swing doors.
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
PORTI opening restrictor for glass doorsCode: SB00006927Art. Nr.: 5318Price:From €121.82In Stock: 0 pc.
| Manufacturer | ATHMER |
|---|---|
| purpose | for interior doors |
| mode of operation | mechanical |
| installation type | to door leaf |
| maximum opening angle | 120° |
| body dimensions | 957 x 17 mm |
| stroke length | 400 mm |
| distance between frame and door leaf | 3.5 - 12 mm (augšā) |
| leaf width | Min. 709 mm |
| leaf material | glass |
| glass thickness | 8 / 10 / 12 mm |
| leaf maximum weight | 50 kg |
| case material | metal / aluminium |
| material | aluminium anodised |
