Spring-loaded hinge FRIDAVO 70814 No.42
Product code
MB00008826
All prices include VAT
From
€116.23
Only %1 left
Spring-loaded hinge FRIDAVO 70814 No.42
Manufacturer - Fridavo (Germany)-
- hinge height (mm): 200 mm
- leaf width (mm): 985 mm
- leaf height (mm): 2600 mm
- leaf thickness (mm): 45-50 mm
- maximum load (kg): 70 kg
- material:
-
-
- steel, galvanised
- stainless steel
-
Hinge parameters - size 42 (mm)
| A | B | C | D | E | F | G | H | I | J | K | L | M | N |
| 200,0 | 161 | 91 | 16 | 20,5 | 31 | 44 | 65,5 | 220 | 175 | 91 | 17 | 20 | 34 |
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-

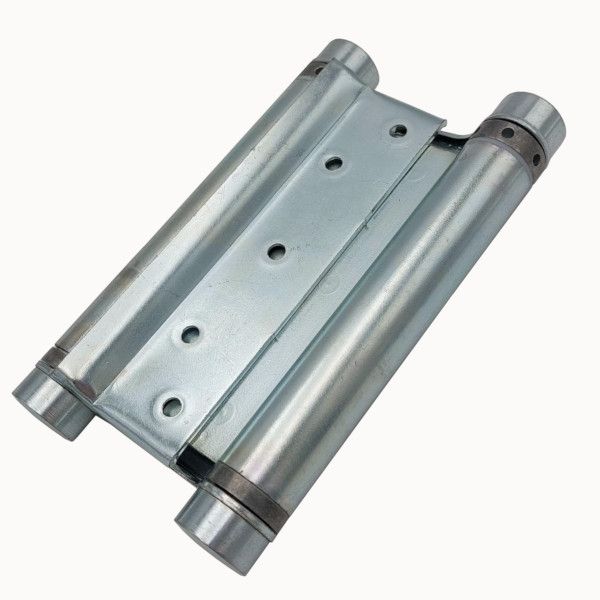

Hinges for double-leaf doors, 42/200, galvanisedCode: SB00009078Art. Nr.: 70814 42/200 verz.Price:From €116.23In Stock: 0 pāris -

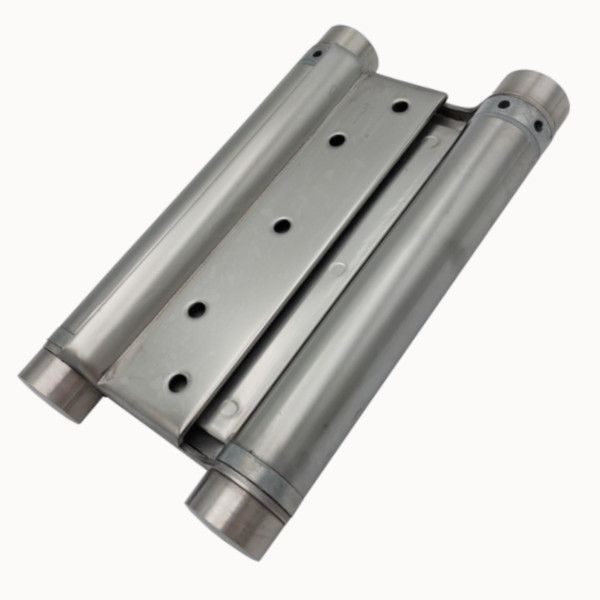

Hinges for double-leaf doors, 42/200, stainless steelCode: SB00009079Art. Nr.: 70814 42/200 NIROPrice:From €314.65In Stock: 0 pāris
| Manufacturer | FRIDAVO |
|---|---|
| hinge type | spring-loaded hinge |
| hinge shape | rectangular |
| door construction | for non-rebated doors |
| door direction | universal use for DIN right and left hand doors |
| class as per EN 1935 | not certified |
| fire safety | not suitable for fire and smoke safety doors |
| leaf height | 2600 mm |
| leaf thickness | 45 - 50 mm |
| leaf width | 985 mm |
| leaf material | wood |
| load capacity | middle |
| leaf maximum weight | 70 kg |
| suitable for aluminium frames | suitable |
| suitable for steel frames | suitable |
| suitable for industrial frames | suitable |
| suitable for timber frames | suitable |
| anti-corrosion resistance | not certified |
| adjustment | not adjustable |
| groove for leaf seal | no |
| anti-intruder protection | no |
| knuckle diameter | 34 mm |
| height | 200 mm |
| maintenance | recommended 1x a year |
| fastening elements | must be ordered separately |
| material | steel / stainless steel |
| Series | FRIDAVO |
