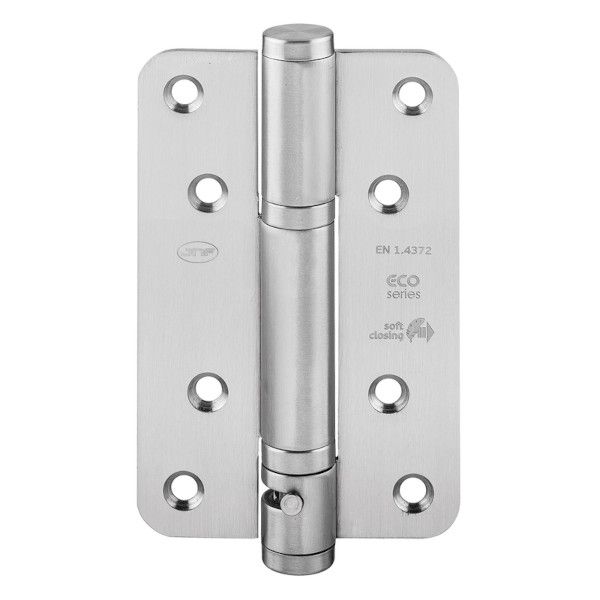

Spring hinge JNF IN.05.040 with soft closing and 90° fixation

Spring hinge JNF IN.05.040

Manufacturer - JNF (Portugal)

• spring hinge with two ballbearings
• integrated soft closing system
• adjustable spring power
• with 90° hold-open
• load capacity: 20 kg with 2 hinges / 40 kg with 3 hinges (door width up to 900 mm)
• dimensions: 82 x 125 mm
• roller diameter: 18 mm
• opening angle: 180°
• thickness: 3 mm
• material:
  • stainless steel EN 1.4372 (AISI 201) satinēts
  • stainless steel EN 1.4301 (AISI 304) PVD TITANUM black (TB)
  • stainless steel EN 1.4301 (AISI 304) PVD TITANUM gold (TG)
  • stainless steel EN 1.4301 (AISI 304) PVD TITANUM copper (TCO)

ATTENTION!

• The ECO series is manufactured from AISI 201 stainless steel with a low nickel content. Its corrosion resistance is suitable for standard environments, but it is not recommended for coastal areas or environments with high levels of pollution.
• The hinge load capacity is based on a 2.0 × 0.8 m door leaf fitted with three hinges. The load capacity is reduced when used with door closers, hold-open door closers, under intensive operating conditions, or with door widths exceeding 1000 mm. For heavier door leaves, a fourth hinge should be installed or hinges with a higher load capacity should be selected.
