Handle set DIECKMANN 1002/2703 PZ for balcony doors
Product code
MB00001731
All prices include VAT
From
€52.31
€55.67
From
€52.31
€55.67
Only %1 left
Questions and answers
Aluminium handle set DIECKMANN 1002/2703 PZ for balcony doors
Manufacturer - DIECKMANN (Germany)
Manufacturer - DIECKMANN (Germany)
-
- handle set for locking balcony doors
- suitable for standard cylinders
- stop-in positions at 90°
- exterior rose with cast steel sub-construction and fastening lugs Ø10 mm
- click-on plastic interior rose with Ø10 mm lugs
- concealed fastening
- suitable for wooden and plastic window frames
- 7/35 spindle square
- handle length: 133 mm
- handle rose size: 30 x 68 mm, thickness: 12,5 mm
- distance from casement surface to outer edge of handle: 51 mm
- distance between fastening centres: 43 mm
- set includes PZ roses for frames
- PZ rose size: 27 x 82 mm
- distance between fastening centres: 63 mm
- set includes fastening components for casement of 75 mm in thickness
- material:
-
-
- aluminium in silver (F1)
- bronze (F5)
- white (F12) tone
-
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-

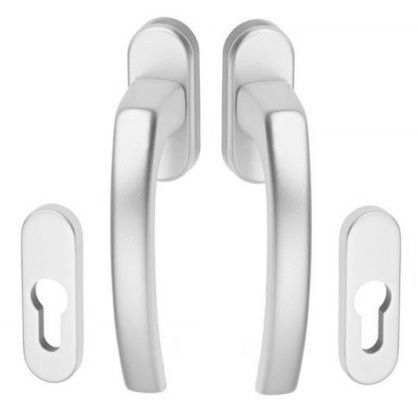

Handle/oval rose set for balcony doors, F12 whiteCode: SB00011079Art. Nr.: 1002/2703/12Price:From Special Price €52.31 was €61.54This price applies only to items in stock. For larger quantities price is calculated upon request.In Stock: 1 pc. -
Handle/oval rose set for balcony doors, F5 bronze toneCode: SB00011080Art. Nr.: 1002/2703/05Price:From Special Price €56.86 was €66.89This price applies only to items in stock. For larger quantities price is calculated upon request.In Stock: 2 pc.
-

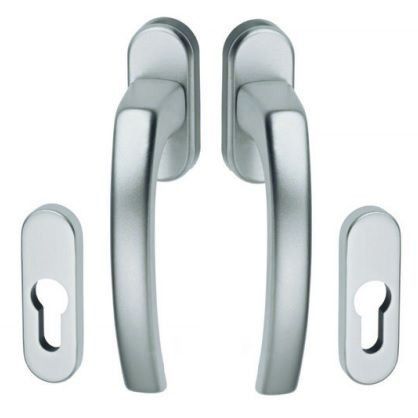

1002 Handle/oval rose PZ set for balcony doors, F1 silver, DB up to 75 mm. DIECKMANNCode: SB00011078Art. Nr.: 1002/2703/01Price:From €55.67In Stock: 0 pc.
| backplate/rose shape | oval |
|---|---|
| backplate/rose size | 30 x 68 mm |
| backplate/rose thickness | 12.5 mm |
| centring lug diameter | 10 mm |
| construction | lever handles on both sides |
| distance from leaf surface to outer edge of handle | 63.5 mm |
| durability in accordance with EN 13126 | not certified |
| fastening centre distance | 43 mm |
| fastening type | covered |
| function | locking |
| handle length | 133 mm |
| handle square spindle size | 7 mm |
| installation type | screw-on base with a click-on rose |
| key rose size | 27 x 82 mm |
| locking function | PZ - with profile cylinder hole |
| Manufacturer | DIECKMANN |
| material | aluminium anodised |
| material: sub-construction | solid steel |
| purpose | for balcony doors lockable on both sides |
| rose type | standard |
| shape | L-shape |
| spindle length | 35 mm |
| stop-in positions | 90° |
