HAWA FRONTSLIDE 100 MATIC hardware system for sliding shutters with motorized control

Product code
FRONTSLIDE-100-M
Hawa View catalogue of manufacturer
main product photo


From €1,768.00 was €1,779.86

Reset selection
FRONTSLIDE 100 MATIC roller set for 1 door   €152.24
Code: SB00023287
Art. Nr.: 25138
Out of stock. Estimated delivery time: 4 weeks.
Item non-returnable as it is made to the Buyer’s/Consumer's specifications
FRONTSLIDE 100 A track, anodized aluminum, length as required (price per 1 m)   €93.13
Code: SB00008552
Art. Nr.: 24798
Out of stock. Estimated delivery time: 4 weeks.
Item non-returnable as it is made to the Buyer’s/Consumer's specifications
Can be ordered in full packages of pcs.

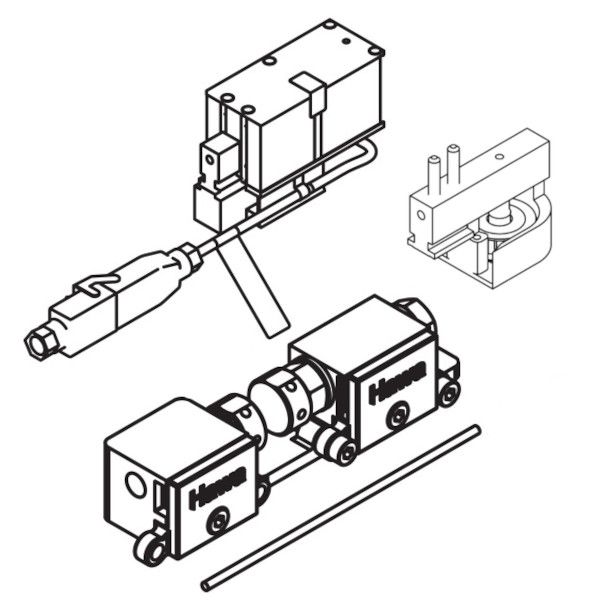

MOTRONIC 100 SMI drive with timing belt lock and direction change roller   €1,475.21
Code: SB00023288
Art. Nr.: 30521
Out of stock. Estimated delivery time: 4 weeks.
Item non-returnable as it is made to the Buyer’s/Consumer's specifications
Can be ordered in full packages of pcs.
Can be ordered in full packages of pcs.
HAWA Timing belt for sliding systems   €47.42

Price as configured €1,768.00

kit
The selected product is currently out of stock.
Fast delivery
Delivery by our transport, a courier, or to a parcel locker
Consultations
with industry profesionals
Book a consultation
Secure payments
Online banking, credit cards, REVOLUT,
Google Pay / Apple Pay / Click to Pay
Service
Manufacturers' catalogues, product documentation etc.

HAWA FRONTSLIDE 100 MATIC hardware system for sliding shutters with motorised control

Manufacturer - HAWA (Switzerland)

Whether you have wooden, aluminium or plastic shutters; whether the facade is large or small and whether you need protection against sunlight or restrict visibility, the wide range of HAWA FRONTSLIDE models offers the right solution for every need and every construction situation. It is your go-to solution for saving space and creating an expressive facade image with individual visual accents.

FRONTSLIDE MATIC 100 offers an automated shutter system control with a high-quality motor that requires no special maintenance and is recognised as the quietest motor of its kind on the market. The FRONTSLIDE MATIC motor can be integrated into the building automation system using the SMI interface. The automated system enables optimal use of daylight depending on each setting. The system is suitable for wooden and metal shutters weighing up to 100 kg.

  • combines functionality, proven quality and modern design
  • robust, CE-certified mechanism with high wind and corrosion resistance, suitable for outdoor use
  • system tested in 100,000 test cycles
  • takes up very little space, protects large glass facades from the sun and adverse weather conditions
  • freely adjustable protection against visibility and sunlight
  • wide range of options for facade design
  • system can be operated electronically from inside the room
  • guide rail technology ensures smooth sliding without vibration or noise
  • all system components are protected against corrosion and do not require special maintenance
  • easy installation
  • flawless functionality for many years


Technical data

  • hardware system for sliding shutters with a single leaf weighing up to 100 kg and automated control
  • integrates into the general home automation system and control via the SMI interface
  • suitable for wooden, PVC and metal shutters
  • with top roller suspension and top-mounted rail
  • installation on the ceiling or window lintel
  • can be individually closed/opened in any position; opening range: half the width of the opening
  • equipped with 2 plastic double roller mechanisms with stainless steel M8 suspension bolts
  • anodised aluminum rail, standard sizes: 3500 / 6000 mm or cut to individual size
  • anodised aluminum guide rail, standard sizes 6000 mm or cut to individual size
  • press-on decorative cover strip for the inside and/or outside of the rail in 2 finishes - colourless anodised or untreated, intended for varnishing
  • maximum weight of a single shutter leaf: 100 kg
  • maximum leaf height: up to 3200 mm
  • leaf width: 650 - 3750 mm
  • maximum leaf surface area: 6.24 m2
  • maximum system width: 7500 mm
  • leaf thickness: 28-50 mm
  • height adjustment: +/-2 mm
  • highest wind resistance level: grade 6 according to EN 13659
  • operating force: grade 1 according to EN 13659
  • corrosion resistance: grade 4 according to DIN EN 1670 (very high resistance, suitable for outdoor use in inland climates)


Motor technical data

  • motor type: HAWA MOTRONIC 100 SMI
  • glass fibre reinforced, durable timing belt with high tensile strength
  • shutters can be removed without removing the timing belt
  • safety system for stopping the motor in case of obstruction, protecting the hardware from possible damage
  • power supply: 100-240 VAC, 50/60 Hz, 30W
  • maximum starting voltage: 16 A
  • overvoltage protection category: II
  • protection class: I
  • operational temperature range: -20° C to +60° C
  • pollution degree: 1
  • electrical safety grade: IP 54
  • max. speed: 70 mm/s
  • max. force: 100 N (integrated overload protection)
  • switches and network equipment are not included in the set
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity

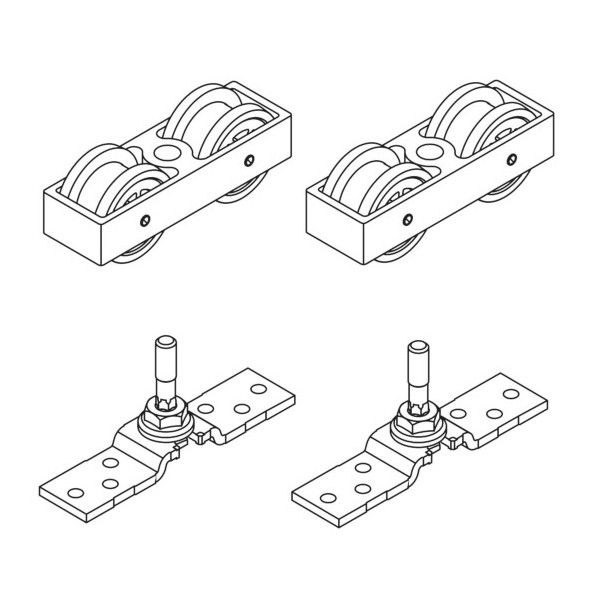

  1. FRONTSLIDE 100 MATIC roller set for 1 door
    FRONTSLIDE 100 MATIC roller set for 1 door
    Code: SB00023287
    Art. Nr.: 25138
    Price:
    From €152.24
    In Stock: 0 pc.
    Visma Quote

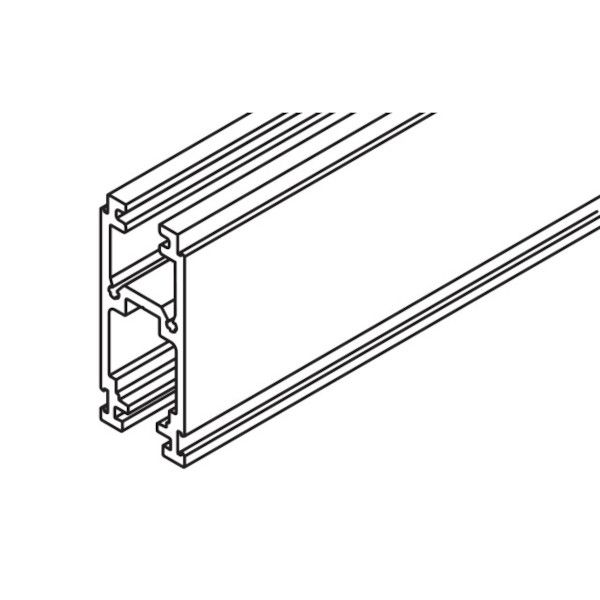

  2. FRONTSLIDE 100 A track, anodized aluminum, length as required (price per 1 m)
    FRONTSLIDE 100 A track, anodized aluminum, length as required (price per 1 m)
    Code: SB00008552
    Art. Nr.: 24798
    Price:
    From €93.13
    In Stock: 0 m
    Visma Quote
  3. MOTRONIC 100 SMI drive with timing belt lock and direction change roller
    MOTRONIC 100 SMI drive with timing belt lock and direction change roller
    Code: SB00023288
    Art. Nr.: 30521
    Price:
    From €1,475.21
    In Stock: 0 set
    Visma Quote

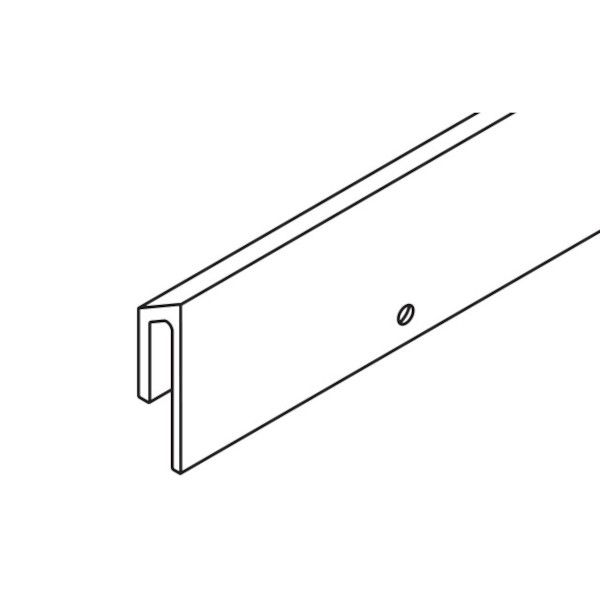

  4. FRONTSLIDE guide rail, wall-mounted, anodized aluminum, length as required (price per 1 m)
    FRONTSLIDE guide rail, wall-mounted, anodized aluminum, length as required (price per 1 m)
    Code: SB00008545
    Art. Nr.: 24462
    Price:
    From €30.00
    In Stock: 0 m
    Visma Quote

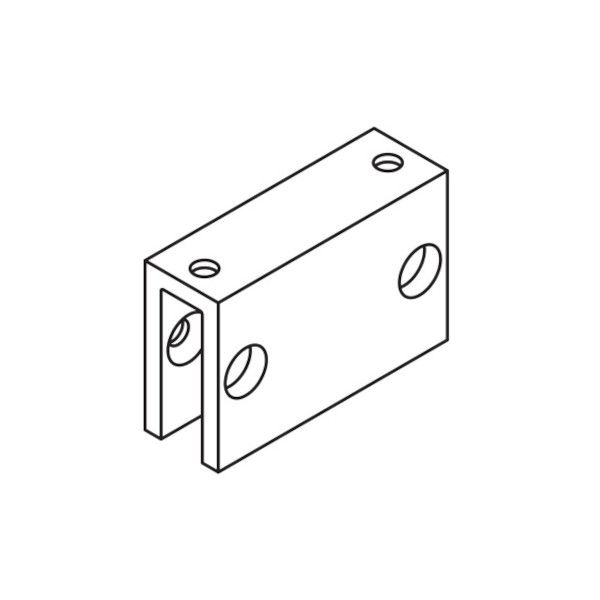

  5. FRONTSLIDE floor guide
    FRONTSLIDE floor guide
    Code: SB00008546
    Art. Nr.: 24542
    Price:
    From €25.66
    In Stock: 0 pc.
    Visma Quote

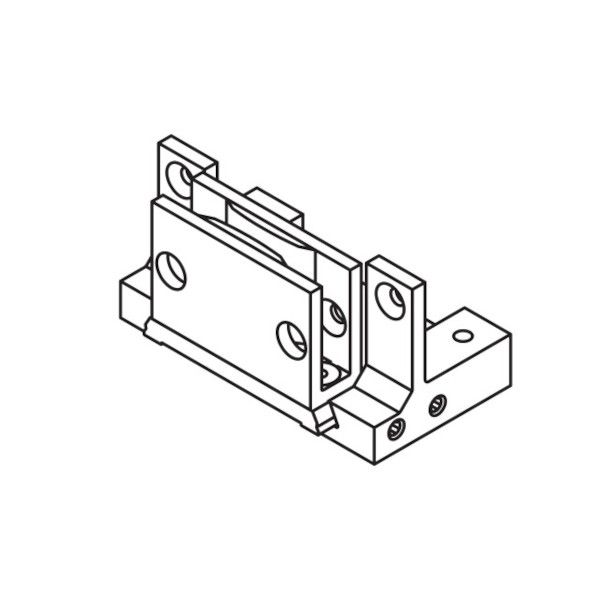

  6. FRONTSLIDE lower guide for wall guid rail, short
    FRONTSLIDE lower guide for wall guid rail, short
    Code: SB00008547
    Art. Nr.: 24543
    Price:
    From €57.08
    In Stock: 0 pc.
    Visma Quote

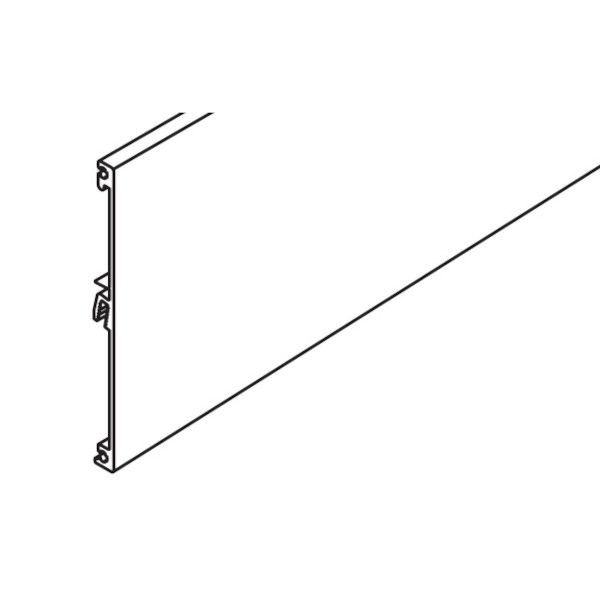

  7. FRONTSLIDE track side cover, anodized aluminum, length as required (price per 1 m)
    FRONTSLIDE track side cover, anodized aluminum, length as required (price per 1 m)
    Code: SB00008554
    Art. Nr.: 24809
    Price:
    From €54.93
    In Stock: 0 m
    Visma Quote
  8. FRONTSLIDE track side cover, aluminum pure, length as required (price per 1 m)
    FRONTSLIDE track side cover, aluminum pure, length as required (price per 1 m)
    Code: SB00023212
    Art. Nr.: 24811
    Price:
    From €38.32
    In Stock: 0 m
    Visma Quote

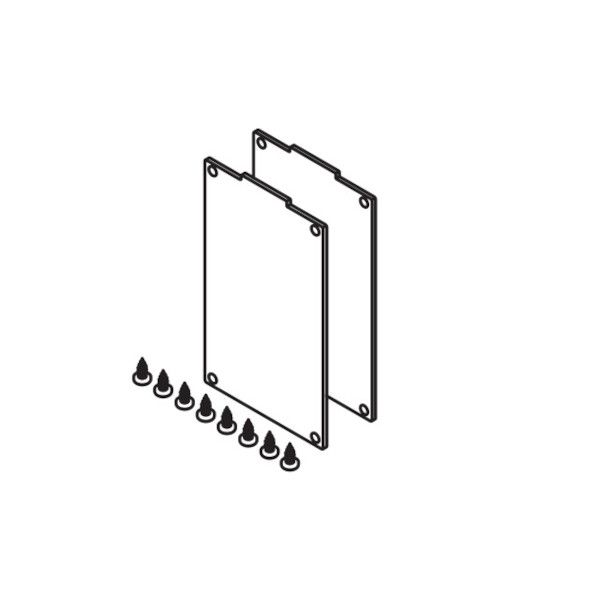

  9. FRONTSLIDE 100 end caps (pair) for ceiling-mounted track, anodized aluminum
    FRONTSLIDE 100 end caps (pair) for ceiling-mounted track, anodized aluminum
    Code: SB00023285
    Art. Nr.: 24813
    Price:
    From €56.94
    In Stock: 0 pāris
    Visma Quote
  10. FRONTSLIDE 100 end caps (pair) for ceiling-mounted track, anodized aluminum
    FRONTSLIDE 100 end caps (pair) for ceiling-mounted track, anodized aluminum
    Code: SB00023286
    Art. Nr.: 24815
    Price:
    From €51.75
    In Stock: 0 pāris
    Visma Quote

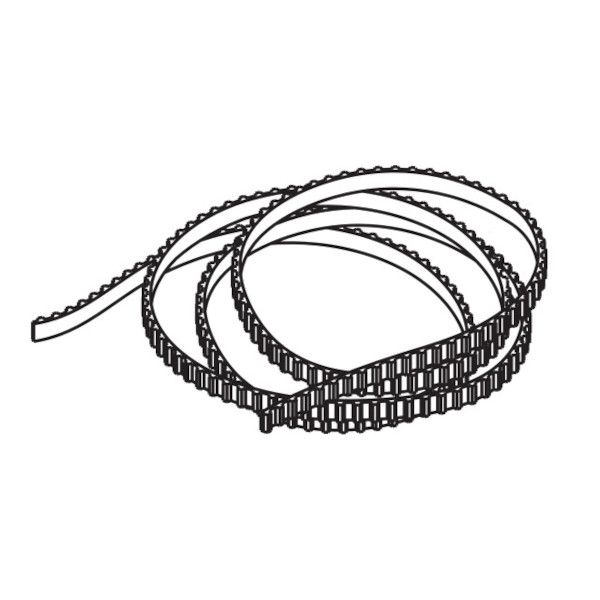

  11. Timing belt, 5 m, black
    Timing belt, 5 m, black
    Code: SB00008467
    Art. Nr.: 19667
    Price:
    From €109.71
    In Stock: 0 pc.
    Visma Quote
  12. Timing belt, 10 m, black
    Timing belt, 10 m, black
    Code: SB00008468
    Art. Nr.: 19668
    Price:
    From Special Price €175.35 was €219.19
    In Stock: 0 pc.
    Visma Quote
  13. Timing belt, 8 m, black
    Timing belt, 8 m, black
    Code: SB00008469
    Art. Nr.: 19682
    Price:
    From €175.39
    In Stock: 0 pc.
    Visma Quote
  14. Timing belt, 2.7 m, black
    Timing belt, 2.7 m, black
    Code: SB00008480
    Art. Nr.: 20208
    Price:
    From Special Price €47.42 was €59.28
    In Stock: 0 pc.
    Visma Quote
  15. Timing belt 15 m, black
    Timing belt 15 m, black
    Code: SB00019989
    Art. Nr.: 20370
    Price:
    From €328.88
    In Stock: 0 pc.
    Visma Quote
  16. Timing belt, 50 m, black
    Timing belt, 50 m, black
    Code: SB00023254
    Art. Nr.: 19669
    Price:
    From €1,116.79
    In Stock: 0 pc.
    Visma Quote

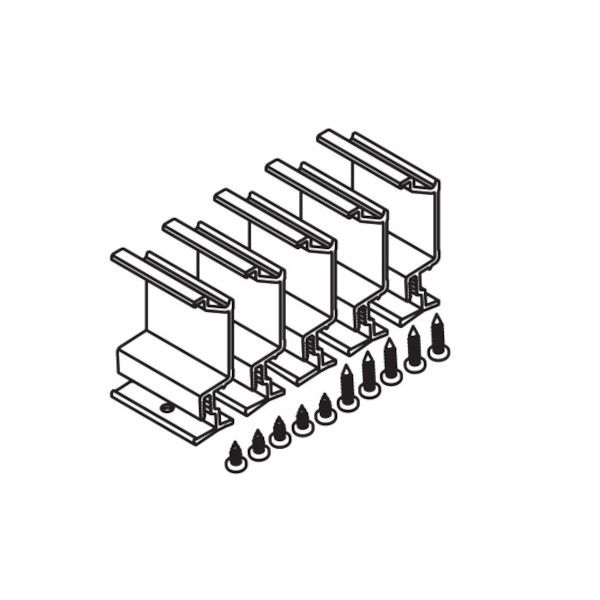

  17. Fastener set for track side cover (5 pcs.)
    Fastener set for track side cover (5 pcs.)
    Code: SB00008549
    Art. Nr.: 24767
    Price:
    From €49.34
    In Stock: 0 kit
    Visma Quote

Additional products

  • Products
  • Price
  • In Stock
  • Quantity
  1. FRONTSLIDE 100 A rail, anodized aluminum, 6000 mm
    FRONTSLIDE 100 A rail, anodized aluminum, 6000 mm
    Code: SB00023284
    Art. Nr.: 24797
    Price:
    From €393.18
    In Stock: 0 pc.
    Visma Quote
  2. FRONTSLIDE guide rail, wall-mounted, anodized aluminum, 6000 mm
    FRONTSLIDE guide rail, wall-mounted, anodized aluminum, 6000 mm
    Code: SB00008544
    Art. Nr.: 24460
    Price:
    From €125.90
    In Stock: 0 pc.
    Visma Quote
  3. FRONTSLIDE track side cover, anodized aluminum, 6000 mm
    FRONTSLIDE track side cover, anodized aluminum, 6000 mm
    Code: SB00023210
    Art. Nr.: 24808
    Price:
    From €226.56
    In Stock: 0 pc.
    Visma Quote
  4. FRONTSLIDE track side cover, aluminum pure, 6000 mm
    FRONTSLIDE track side cover, aluminum pure, 6000 mm
    Code: SB00023211
    Art. Nr.: 24810
    Price:
    From €160.64
    In Stock: 0 pc.
    Visma Quote

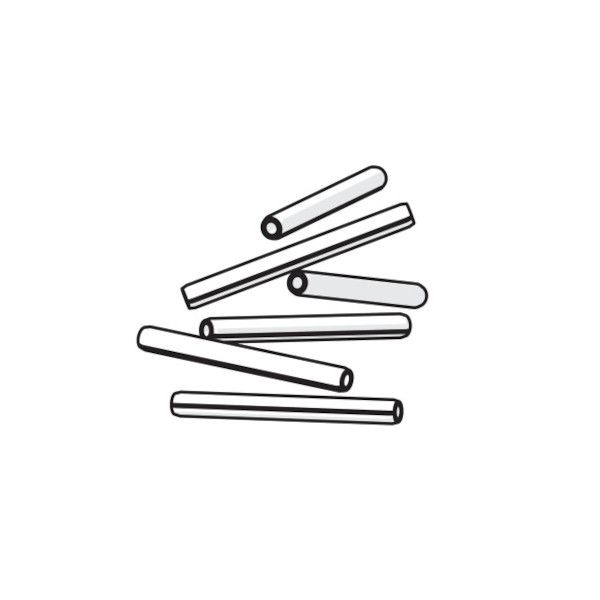

  5. Track connecting pins, set of 6, galvanized steel
    Track connecting pins, set of 6, galvanized steel
    Code: SB00023200
    Art. Nr.: 17221
    Price:
    From €16.19
    In Stock: 0 kit
    Visma Quote
Manufacturer Hawa
Design surface-mounted track
system type straight sliding door system
Series FRONTSLIDE
mode of operation motorised
purpose for exterior facades
shutter surface area max. 6,24 m²
opening range partial opening
number of door leaves 1 leaf
height adjustment +/-2 mm
installation type screw-on
leaf material wood/PVS/metal
operational temperature range -20° C to +60° C
total system width max. 7500 mm
opening and closing speed max. 70 mm/s
IP rating IP54
supply voltage 100-240 VAC / 50/60 Hz, 30 W
leaf maximum weight 100 kg
leaf height up to 3200 mm
leaf thickness 28-50 mm
leaf width 650-3750 mm
anti-corrosion resistance class 4 according to EN 1670 - very high
wind resistance class 6 according to EN 13659
