HAWA FRONTSLIDE 140 A hardware system for sliding shutters

Product code
FRONTSLIDE-140-A
Hawa View catalogue of manufacturer
main product photo

From €389.39

Reset selection

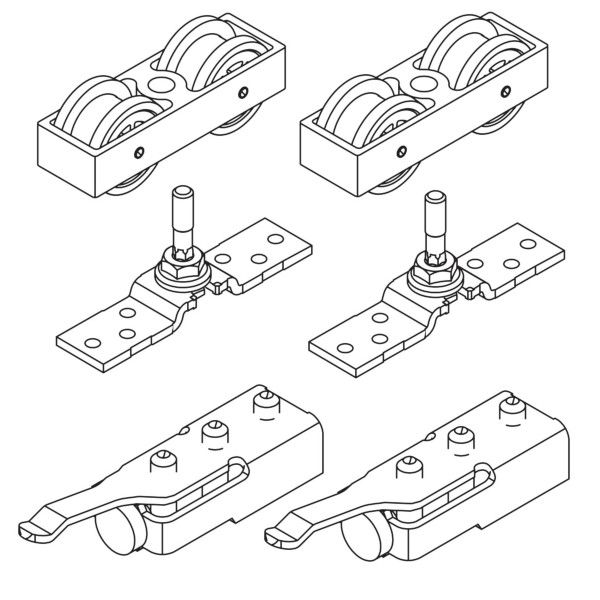

FRONTSLIDE 140 A roller set for 1 door   €280.10
Code: SB00023289
Art. Nr.: 25130
Out of stock. Estimated delivery time: 4 weeks.
Item non-returnable as it is made to the Buyer’s/Consumer's specifications
FRONTSLIDE 140 A track, anodized aluminum, length as required (price per 1 m)   €109.29
Code: SB00023290
Art. Nr.: 24800
Out of stock. Estimated delivery time: 4 weeks.
Item non-returnable as it is made to the Buyer’s/Consumer's specifications
Can be ordered in full packages of pcs.
Can be ordered in full packages of pcs.
Can be ordered in full packages of pcs.

Price as configured €389.39

kit
The selected product is currently out of stock.
Fast delivery
Delivery by our transport, a courier, or to a parcel locker
Consultations
with industry profesionals
Book a consultation
Secure payments
Online banking, credit cards, REVOLUT,
Google Pay / Apple Pay / Click to Pay
Service
Manufacturers' catalogues, product documentation etc.

HAWA FRONTSLIDE 140 A hardware system for sliding shutters

Manufacturer - HAWA (Switzerland)

Whether you have wooden, aluminium or plastic shutters weighing up to 140 kg; whether the facade is large or small, in a renovation project or a new development, HAWA FRONTSLIDE offers efficient protection against sunlight and unwanted visibility. It will withstand even a storm in either closed or open position, all the while creating an expressive facade image with individual visual accents.

  • combines functionality, proven quality and modern design
  • guide technology ensures smooth sliding without vibration or noise
  • freely adjustable protection against visibility and sunlight
  • wide range of options for facade design
  • takes up very little space, protects large glass facades from the sun and adverse weather conditions
  • easy installation
  • high load-bearing properties in all weather conditions
  • easy to open and close without leaning out of the window
  • all system components are cross-compatible
  • corrosion-resistant materials
  • flawless functionality for many years


Technical data

  • hardware system for sliding shutters with a single leaf weighing up to 140 kg
  • suitable for wooden, PVC and metal shutters
  • with top roller suspension and top-mounted rail
  • installation on the ceiling or window lintel
  • can be individually closed/opened in any position; opening range: half the width of the opening
  • equipped with 2 plastic double roller mechanisms with stainless steel M8 suspension bolts
  • anodised aluminum rail, standard sizes: 3500 / 6000 mm or cut to individual size
  • anodised aluminum guide rail, standard sizes 6000 mm or cut to individual size
  • press-on decorative cover strip for the inside and/or outside of the rail in 2 finishes - colourless anodised or untreated, intended for varnishing
  • maximum weight of a single shutter leaf: 140 kg
  • maximum leaf height: up to 3200 mm
  • leaf width: 500 - 3750 mm
  • maximum leaf surface area: 9.6 m2
  • maximum system width: 7500 mm
  • leaf thickness: 28-50 mm
  • height adjustment: +/-2 mm
  • highest wind resistance level: grade 6 according to EN 13659
  • operating force: grade 1 according to EN 13659
  • corrosion resistance: grade 4 according to DIN EN 1670 (very high resistance, suitable for outdoor use in inland climates)
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. FRONTSLIDE 140 A roller set for 1 door
    FRONTSLIDE 140 A roller set for 1 door
    Code: SB00023289
    Art. Nr.: 25130
    Price:
    From €280.10
    In Stock: 0 set
    Visma Quote
  2. FRONTSLIDE 140 A track, anodized aluminum, length as required (price per 1 m)
    FRONTSLIDE 140 A track, anodized aluminum, length as required (price per 1 m)
    Code: SB00023290
    Art. Nr.: 24800
    Price:
    From €109.29
    In Stock: 0 m
    Visma Quote
  3. FRONTSLIDE guide rail, wall-mounted, anodized aluminum, length as required (price per 1 m)
    FRONTSLIDE guide rail, wall-mounted, anodized aluminum, length as required (price per 1 m)
    Code: SB00008545
    Art. Nr.: 24462
    Price:
    From €30.00
    In Stock: 0 m
    Visma Quote
  4. FRONTSLIDE floor guide
    FRONTSLIDE floor guide
    Code: SB00008546
    Art. Nr.: 24542
    Price:
    From €25.66
    In Stock: 0 pc.
    Visma Quote
  5. FRONTSLIDE lower guide for wall guid rail, short
    FRONTSLIDE lower guide for wall guid rail, short
    Code: SB00008547
    Art. Nr.: 24543
    Price:
    From €57.08
    In Stock: 0 pc.
    Visma Quote
  6. FRONTSLIDE lower guide for wall guid rail, long
    FRONTSLIDE lower guide for wall guid rail, long
    Code: SB00019588
    Art. Nr.: 24544
    Price:
    From €62.38
    In Stock: 0 pc.
    Visma Quote
  7. FRONTSLIDE track side cover, anodized aluminum, length as required (price per 1 m)
    FRONTSLIDE track side cover, anodized aluminum, length as required (price per 1 m)
    Code: SB00008554
    Art. Nr.: 24809
    Price:
    From €54.93
    In Stock: 0 m
    Visma Quote
  8. FRONTSLIDE track side cover, aluminum pure, length as required (price per 1 m)
    FRONTSLIDE track side cover, aluminum pure, length as required (price per 1 m)
    Code: SB00023212
    Art. Nr.: 24811
    Price:
    From €38.32
    In Stock: 0 m
    Visma Quote
  9. FRONTSLIDE 140 end caps (pair) for ceiling-mounted track, anodized aluminum
    FRONTSLIDE 140 end caps (pair) for ceiling-mounted track, anodized aluminum
    Code: SB00023292
    Art. Nr.: 24817
    Price:
    From €62.34
    In Stock: 0 pāris
    Visma Quote
  10. FRONTSLIDE 140 end caps (pair) for ceiling-mounted track, anodized aluminum
    FRONTSLIDE 140 end caps (pair) for ceiling-mounted track, anodized aluminum
    Code: SB00023293
    Art. Nr.: 24819
    Price:
    From €56.56
    In Stock: 0 pāris
    Visma Quote
  11. Fastener set for track side cover (5 pcs.)
    Fastener set for track side cover (5 pcs.)
    Code: SB00008549
    Art. Nr.: 24767
    Price:
    From €49.34
    In Stock: 0 kit
    Visma Quote

Additional products

  • Products
  • Price
  • In Stock
  • Quantity
  1. FRONTSLIDE 140 A track, anodized aluminum, 6000 mm
    FRONTSLIDE 140 A track, anodized aluminum, 6000 mm
    Code: SB00023291
    Art. Nr.: 24799
    Price:
    From €453.12
    In Stock: 0 pc.
    Visma Quote
  2. FRONTSLIDE guide rail, wall-mounted, anodized aluminum, 6000 mm
    FRONTSLIDE guide rail, wall-mounted, anodized aluminum, 6000 mm
    Code: SB00008544
    Art. Nr.: 24460
    Price:
    From €125.90
    In Stock: 0 pc.
    Visma Quote
  3. FRONTSLIDE track side cover, anodized aluminum, 6000 mm
    FRONTSLIDE track side cover, anodized aluminum, 6000 mm
    Code: SB00023210
    Art. Nr.: 24808
    Price:
    From €226.56
    In Stock: 0 pc.
    Visma Quote
  4. FRONTSLIDE track side cover, aluminum pure, 6000 mm
    FRONTSLIDE track side cover, aluminum pure, 6000 mm
    Code: SB00023211
    Art. Nr.: 24810
    Price:
    From €160.64
    In Stock: 0 pc.
    Visma Quote
  5. Track connecting pins, set of 6, galvanized steel
    Track connecting pins, set of 6, galvanized steel
    Code: SB00023200
    Art. Nr.: 17221
    Price:
    From €16.19
    In Stock: 0 kit
    Visma Quote
Manufacturer Hawa
Design surface-mounted track
system type straight sliding door system
Series FRONTSLIDE
mode of operation manual
purpose for exterior facades
shutter surface area max. 9,6 m²
opening range partial opening
number of door leaves 1 leaf
height adjustment +/-2 mm
installation type screw-on
leaf material wood/PVS/metal
total system width max. 7500 mm
leaf maximum weight 140 kg
leaf height up to 3200 mm
leaf thickness 28-60 mm
leaf width 600-3750 mm
anti-corrosion resistance class 4 according to EN 1670 - very high
wind resistance class 6 according to EN 13659
