HAWA FRONTSLIDE 140 A SYMMETRIC [+MATIC] hardware system for simultaneously symmetrical sliding shutters

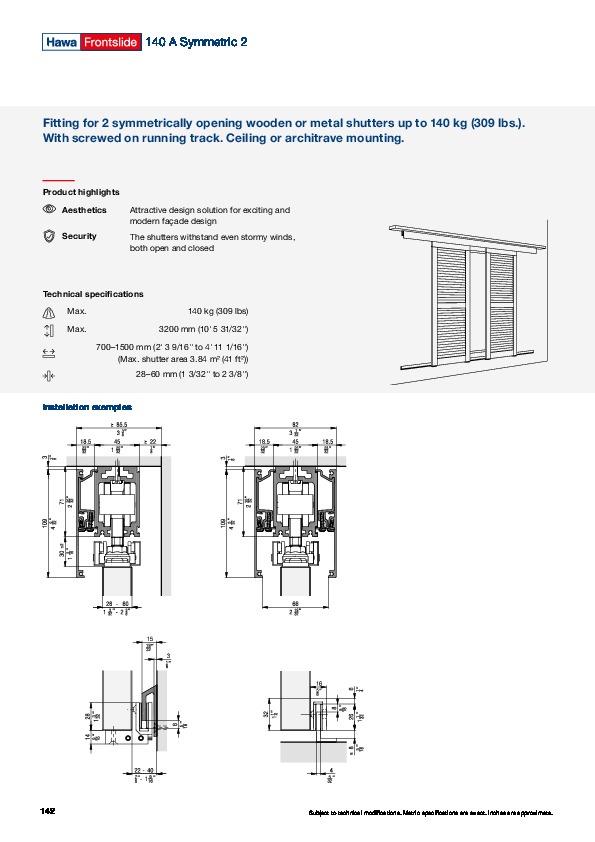

HAWA FRONTSLIDE 140 A SYMMETRIC hardware system for symmetrical sliding shutters

Manufacturer - HAWA (Switzerland)

Whether you have wooden, aluminium or plastic shutters; whether the facade is large or small and whether you need protection against sunlight or restrict visibility, the wide range of HAWA FRONTSLIDE models offers the right solution for every need and every construction situation. It is your go-to solution for saving space and creating an expressive facade image with individual visual accents.

FRONTSLIDE SYMMETRIC systems allow you to open 2 shutters weighing up to 140 kg simultaneously on opposite sides with a single hand movement. Manual and automated FRONTSLIDE SYMMETRIC versions are available. The automated versions offer automated shutter system control with a high-quality motor that requires no special maintenance and is recognised as the quietest motor of its kind on the market. The FRONTSLIDE MATIC motor can be integrated into the building automation system using the SMI interface. The automated system enables optimal use of daylight depending on each setting.

• combines functionality, proven quality and modern design
• robust, CE-certified mechanism with high wind and corrosion resistance, suitable for outdoor use
• system tested in 100,000 test cycles
• guide rail technology ensures smooth sliding without vibration or noise
• freely adjustable protection against visibility and sunlight
• wide range of options for facade design
• takes up very little space, protects large glass facades from the sun and adverse weather conditions
• easy installation and cross-compatibility of system components
• high load-bearing properties in all weather conditions
• easy manual opening and closing without leaning out of the window or electronic control from inside the room
• all system components are protected against corrosion and do not require special maintenance

Technical data

• hardware system for symmetrically sliding shutters with 2 leaves
• suitable for wooden and metal shutters

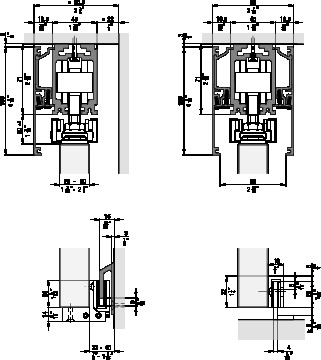

• with upper roller suspension and top-mounted rail
• installation on the ceiling or window lintel
• can be individually closed/opened in any position
• opening range: half the width of the opening
• equipped with 2 plastic double roller mechanisms with stainless steel M8 suspension bolts
• anodised aluminum rail, standard sizes: 3500 / 6000 mm or cut to individual size
• anodised aluminum guide rail, standard sizes 6000 mm or cut to individual size
• press-on decorative cover strip for the inside and/or outside of the rail in 2 finishes - colourless anodised or untreated, intended for varnishing
• glass fibre reinforced, durable timing belt with high tensile strength
• maximum weight of a single shutter leaf:
  • Frontslide 140 A Symmetric: 140 kg
  • Frontslide 140 Matic Symmetric: 100 kg
• maximum leaf height: up to 3200 mm
• leaf width:
  • Frontslide 140 A Symmetric: 700 - 1500 mm
  • Frontslide 140 Matic Symmetric: 750 - 1875 mm
• max. shutter leaf surface area:
  • Frontslide 140 A Symmetric: 3.84 m²
  • Frontslide 140 Matic Symmetric: 6.24 m²
• max. system width:
  • Frontslide 140 A Symmetric: 6000 mm
  • Frontslide 140 Matic Symmetric: 7500 mm
• leaf thickness: 28-60 mm
• height adjustment: +/-2 mm
• highest wind resistance level: grade 6 according to EN 13659
• operating force: grade 1 according to EN 13659
• corrosion resistance: grade 4 according to DIN EN 1670 (very high resistance, suitable for outdoor use in inland climates)

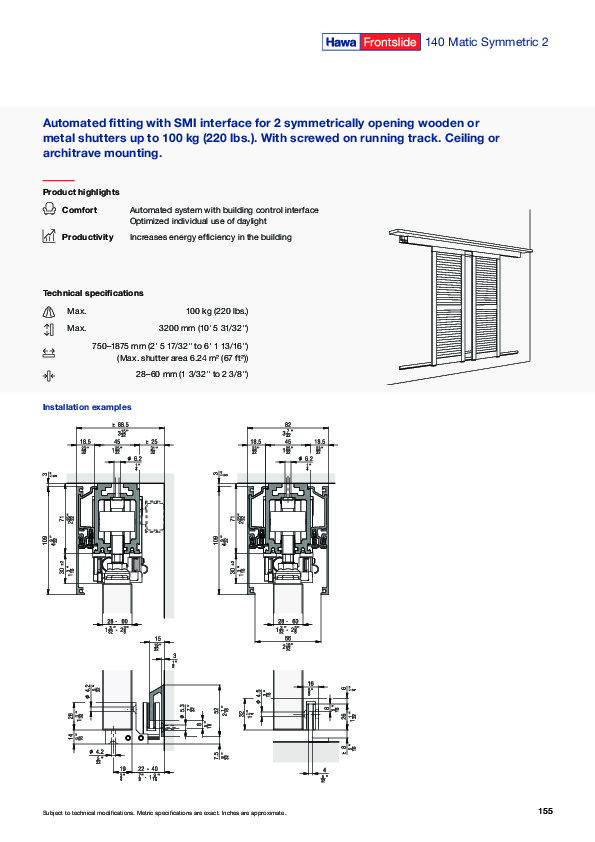

Motor technical data

• motor type: HAWA MOTRONIC 140 SMI
• glass fibre reinforced, durable timing belt with high tensile strength
• shutters can be removed without removing the timing belt
• safety system for stopping the motor in case of obstruction, protecting the hardware from possible damage
• power supply: 100-240 VAC, 50/60 Hz, 30W
• maximum starting voltage: 16 A
• overvoltage protection category: II
• protection class: I
• operational temperature range: -20° C to +60° C
• pollution degree: 1
• electrical safety grade: IP 54
• max. speed: 50 mm/s
• max. force: 100 N (integrated overload protection)
• switches and network equipment are not included in the set
