Sliding door lock with WC knob in round rose JNF 20.937
Sliding door lock with WC knob JNF 20.937
Manufacturer - JNF (Portugal)- mortise lock for sliding doors
- complies with EN12209 grade 2 requirements
- with hook bolt
- compatible with standard Euro cylinder
- set includes round roses with WC knob, stike plate and flush pull-out handle
- spindle depth: 50 mm
- lock profile depth: 68 mm
- distance between fastening centres: 38 mm
- rounded face plate: 16 x 157 mm
- door thickness: min. 35 mm
- knob spindle: 8 x 8 x 40 mm
- rounded face plate: 16 x 90 x 2 mm
- knob rose diameter: 60 mm
- milling depth for knob roses: 54 mm, depth: 10 mm
- pull-out handle: Ø30 mm
- milling diameter: 25 mm, depth: 19 mm
- hook bolt, face plate and strike plate are made of stainless steel EN 1.4301
- available finishes:
- nickel-plated, satin niķelēta
- bronze tone
Classification code according to EN12209:
2 | B | 4 | 0 | 0 | B | 2 | C | D | 0 | 0 |
- Products
- Price
- In Stock
- Quantity
-

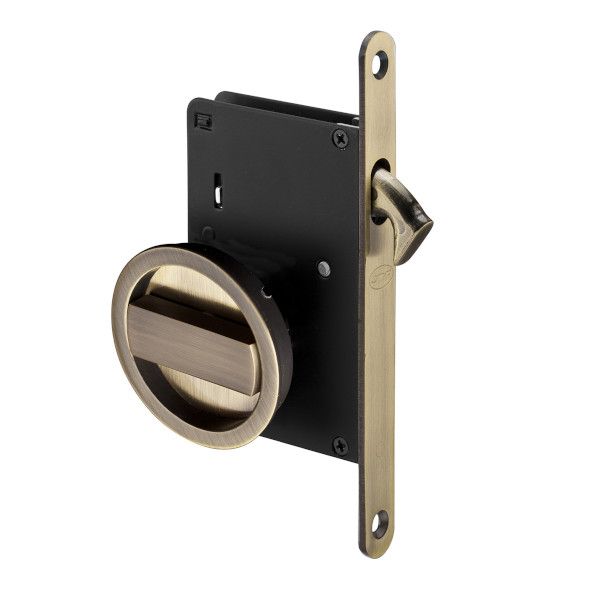

Lock for sliding doors 20.937 with WC knob, bronze tone (LB)Code: SB00022744Art. Nr.: 20937LBPrice:From €39.81In Stock: 1 kit
-

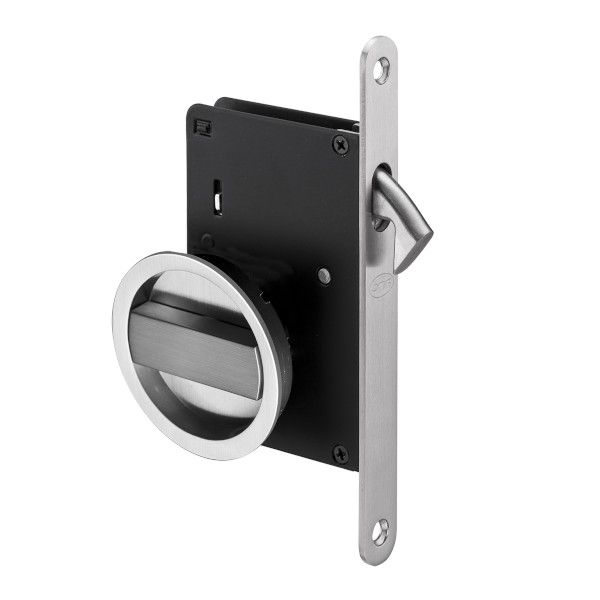

Lock for sliding doors 20.937 with WC knob, nickel-plated, satin (NS)Code: SB00013712Art. Nr.: 20937NSPrice:From €39.81In Stock: 0 kit
Manufacturer | JNF |
---|---|
lock type | lock for sliding doors |
lock operation | mechanical |
purpose | for interior doors |
leaf material | wood |
load capacity | middle |
class as per EN 12209 (DIN 18251) | class 2 according to EN 12209 |
fire safety | not suitable for fire safety doors |
compatibility standard | German (DIN) |
possible spindle depth | 50 mm |
door direction | universal use for DIN right and left hand doors |
total depth | 67,5 mm |
locking function | WC - with turning knob for WC and bathrooms |
lock bolt material | stainless steel |
lock bolt | hook |
door thickness | no 35 mm |
face plate shape | rounded |
face plate width | 16 mm |
face plate length | 157 mm |
backplate/rose size | Ø60 mm |
Uzliku/rozešu forma | Apaļa |
face plate finish | stainless steel |
