Concealed hinge INVISACTA IN300 PVC

Product code
IN300-PVC
OTLAV View catalogue of manufacturer

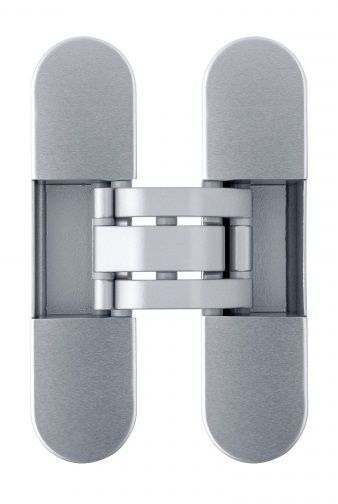

main product photo

From €17.24 was €19.08
Select a suitable hinge finish and add matching caps in the required number.
One hinge requires 4 caps.
Reset selection
Concealed hinge INVISACTA IN300 PVC   €16.52
Caps for INVISACTA IN300 PVC   €0.18

Price as configured €17.24

kit
The selected product is currently out of stock.
Fast delivery
Delivery by our transport, a courier, or to a parcel locker
Consultations
with industry profesionals
Book a consultation
Secure payments
Online banking, credit cards, REVOLUT,
Google Pay / Apple Pay / Click to Pay
Service
Manufacturers' catalogues, product documentation etc.

Concealed hinge INVISACTA IN300 PVC
Manufacturer - OTLAV (Italy)

    • ideal solution for modern doors
    • may be leaf or frame-mounted
    • suitable for non-rebated wooden doors
    • 3-dimensional adjustability: side (+/- 1 mm), depth (+/- 1 mm) and height (+/- 2 mm)
    • suitable for both left and right hand doors)
    • maximum load capacity: 60 kg (2 hinges per leaf)
    • size: 120 x 30 mm
    • Ø 12 mm
    • depth of the milling in the frame: 21 mm
    • high level of durability, ensured by the 7 joint hinges and durable nylon receiver
    • opening angle: 180°
    • compatible with PVC caps (4 pc. needed for 1 hinge)
    • material metal alloy ZAMAK:
      • black
      • silver tone

Montāžas instrukcijas un regulēšana
INVISACTA concealed hinge assembly diagram INVISACTA concealed hinge assembly diagram
IN300 assembly and adjustment instructions IN300 assembly and adjustment instructions

Dokumentācija
Certificate of Constancy of Performance for INVISACTA Hinges (EN) Certificate of Constancy of Performance for INVISACTA Hinges (EN)
Declaration of performance 542 IN300120H004 DE Declaration of performance 542 IN300120H004 DE
Declaration of Performance 542 IN300120H004 EN Declaration of Performance 542 IN300120H004 EN
Declaration of performance 542 IN300120H004 LV Declaration of performance 542 IN300120H004 LV

Tehniskā papildinformācija
Hinge assembly parameters and recommendations for choosing the number of hinges Hinge assembly parameters and recommendations for choosing the number of hinges
INVISACTA IN300 concealed hinge load chart INVISACTA IN300 concealed hinge load chart

All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Slēptā eņģe INVISACTA IN300 cinkota
    INVISACTA IN300 concealed hinge 30x120 mm, galvanised
    Code: SB00018789
    Art. Nr.: IN300120H004
    Price:
    From Special Price €16.52 was €18.36
    In Stock: 496 pc.
  2. INVISACTA IN300 concealed hinge 30x120 mm, black
    INVISACTA IN300 concealed hinge 30x120 mm, black
    Code: SB00018786
    Art. Nr.: IN3001209N02
    Price:
    From Special Price €18.79 was €20.87
    In Stock: 0 pc.
  3. INVISACTA IN300 concealed hinge 30x120 mm, silver
    INVISACTA IN300 concealed hinge 30x120 mm, silver
    Code: SB00018791
    Art. Nr.: IN300120V702
    Price:
    From Special Price €18.79 was €20.87
    In Stock: 220 pc.
  4. INVISACTA 3D concealed hinge cover, black PVC (4 pcs. required per hinge)
    INVISACTA 3D concealed hinge cover, black PVC (4 pcs. required per hinge)
    Code: SB00028531
    Art. Nr.: GC300P10Y202
    Price:
    From €0.18
    In Stock: 2180 pc.
    Can be ordered in full packages of 4 pcs.
  5. INVISACTA 3D concealed hinge cover, silver tone PVC (4 pcs. required per hinge)
    INVISACTA 3D concealed hinge cover, silver tone PVC (4 pcs. required per hinge)
    Code: SB00028532
    Art. Nr.: GC300P107102
    Price:
    From €0.18
    In Stock: 2260 pc.
    Can be ordered in full packages of 4 pcs.

Additional products

  • Products
  • Price
  • In Stock
  • Quantity
  1. Mounting plate for Invisacta IN300120, zinc plated
    Mounting plate for Invisacta IN300120, zinc plated
    Code: SB00018809
    Art. Nr.: NP120040H502
    Price:
    From €2.92
    In Stock: 0 pc.
    Visma Quote
Manufacturer OTLAV
hinge type concealed hinge
hinge shape rounded
door construction for non-rebated doors
door direction universal use for DIN right and left hand doors
class as per EN 1935 class 2
fire safety suitable for fire and smoke safety doors
leaf material wood
load capacity middle
leaf maximum weight 60 kg
suitable for aluminium frames suitable using additional mounting parts
suitable for steel frames suitable using additional mounting parts
suitable for industrial frames suitable using additional mounting parts
suitable for timber frames suitable
anti-corrosion resistance certified according to EN 1935 - depending on finish
adjustment adjustable
groove for leaf seal no
anti-intruder protection yes, protected hinge design
cutter diameter 24 mm
height 120 mm
maintenance not required (self-lubricating bearings)
installation template available for sale or rent
fastening elements must be ordered separately
material ZAMAK
