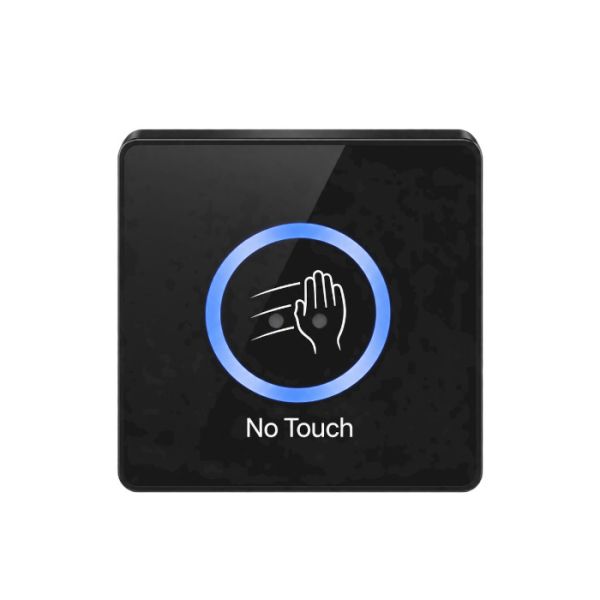

Cbutton 600 Infrared No Touch exit button

Cbutton 600 Infrared No Touch exit button

Manufacturer - Secukey

• contactless exit button for access control doors
• operating principle: Infrared sensor
• mechanical life: 50 000 times
• switch combination: 1NO1NC
• installation: surface mounted
• sensor distance adjustable: 3-10 cm
• material: ABS plastic
• LED indicator
• protection rating: IP66 waterproof (optional)
• power supply: 12–24 V
• max. voltage: 24 V
• max. current: 3 A
• output contact: NO\NC\COM
• colour: black
• dimensions: 86 × 86 × 15 mm
• optional function: timer delay 5s / 10s

ATTENTION!

The touchless door opening sensor operates using infrared (IR) radiation. The sensor emits invisible infrared light and detects its reflection from a nearby object, such as a hand.

A bare hand usually reflects this radiation sufficiently well for the sensor to detect it and activate the door opening mechanism.

However, glove materials may absorb or scatter infrared radiation, especially if the gloves are dark-coloured or made from certain types of fabric. In such cases, the sensor may not receive a sufficiently strong reflected signal, and the door opening mechanism will not be activated.

Important: This is a characteristic of infrared sensor technology and does not necessarily mean that the sensor is defective.

If the sensor does not respond to a gloved hand, it is recommended to move the hand closer to the sensor or check whether the sensor's sensitivity can be adjusted.
