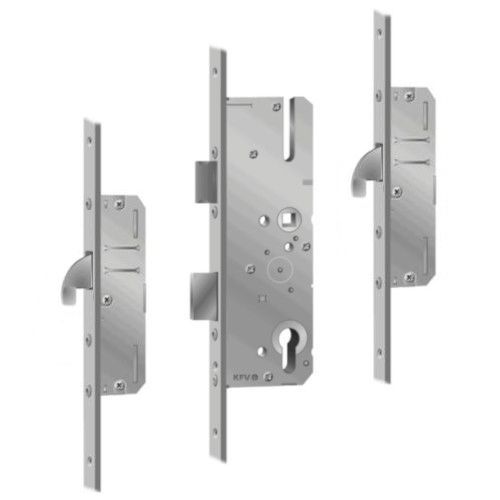

Multipoint lock with hook bolts KFV AS4500

Multipoint lock with hook bolts KFV AS4500

Manufacturer - KFV

• exterior door lock with 3 locking points – main latch bolt and additional downward-locking hook bolts
• all locking elements and handle operation activated by the door handle
• downward-locking hook bolts ensure high operational reliability even for doors prone to sagging, while also increasing door security by making it more difficult to force the door out of the frame
• high thermal insulation and optimal sealing
• universal application for both right-hand and left-hand doors
• burglar resistance with multipoint locking
• anti-pressure and anti-sawing protection
• noise and thermal insulation ensured by tightly pulled transmission mechanism
• compatible with standard door hardware
• unified milling: W000
• handle-operated locking
• bright zinc-plated faceplate with main lock and 2 auxiliary locks
• main lock prepared for profile cylinder, latch cannot be retracted with key, bolt throw: 15 mm
• main lock with reinforced screw holes up to M6 for fixing escutcheons
• 2 auxiliary locks positioned above and below the main lock, equipped with hook bolts locking from top to bottom, bolt throw: 20 mm
• all locking elements bright nickel-plated, all lock cases closed zinc-plated
• centre distance: 72 mm
• backset: 55 mm
• handle spindle: 8 mm
• compatible with standard escutcheons and profile cylinders according to DIN 18254
• finish: bright zinc-plated (faceplate)
