Multi-point lock for emergency exit/panic doors KFV 960 EE/EP/PE
Manufacturer - KFV

    • 5 locking points - main lock bolt and auxiliary lock round bolts and hooked bolts
    • long matt stainless steel face plate with main lock and 2 auxiliary locks
    • face plate type - flat rectangular/rounded or U-shape
    • flat face plate width: 16 mm, 24 mm
    • U-shape face plate size: 6 x 22/24 x 6 mm
    • main lock suitable for cylinder
    • latches for E function locks are key-retractable
    • main lock with lined holes for screws up to M6 - for fixing backplate into its place
    • 2 auxiliary locks, located on both sides of the main lock
    • round bolt diameter: 11 mm, projection: 20 mm
    • hooked bolt projection: 21 mm
    • centre distance attālums: 72 / 92 mm
    • spindle depth : 35 - 65 mm
    • handle spindle: 9 mm
    • all emergency exit functions have single central lock type
    • all auxiliary lock cases have the same size
    • suitable also for fire safety doors
    • adjustable security level
    • adjustable door swing direction and exit direction, one lock suits any direction
    • available finishes: stainless steel (face plate)

Lock types
    • EE960 - corresponds with EN 179 technical requirements for emergency exit doors, set includes: lever handle
    • PE960 - corresponds with EN 1125 technical requirements for panic doors, set includes: panic bar
    • EP960 - corresponds with EN 179 and  EN 1125 technical requirements for emergency exit and panic doors, set includes: lever handle + panic bar
    • suitable for use only with certified handle sets

Advantages
    • all emergency exit functions have a single central lock type
    • all auxiliary lock cases have the same size
    • suitable also for fire safety doors
    • adjustable security level
    • set does not require a freewheel cylinder meaning a wider range of cylinders to choose from
    • 5 locking points - main lock bolt and auxiliary lock round bolts and hooked bolts
    • the tight seal provides reduced noise and better heat insulation
    • high protection against prising the door open
    • door tightening ensures an optimal seal to prevent draughts
    • the hooks lock from the bottom up thus preventing the door from warping
    • locking function B, D, E

Security features
    • round horizontal steel bolt prevents intruders from prising the door open
    • hooked bolts provide high back-pressure protection
    • tempered steel elements notably improve lock durability
    • main lock deadbolt is secured against sawing and thus hinders break-in attempts
    • corresponds with EN 179 and EN 1125 requirements for emergency exit doors

Milling sizes
Cutter type  A
Total length (mm)
 B
Distance from handle centre to lower part centre  (mm)
 C
Distance from handle centre to upper part centre (mm)
 G
Distance from handle centre to bottom (mm)
 I
Max face plate shortening from top (mm)
 K
Max face plate shortening from bottom (mm)
 B001  2170  760  730  1020  290  130
 B002  2170  760  730  1050  260  160
 B003  2400  760  980  1020  270  130
 B166  1855  760  730   952   43   62
 B298  2170  760  605  1020  415  130
 B327  2170  760  605  1050  385  160
 B602  2400  760  855  1020  385  130
 B608  2400  885  730  1020  520 -
 K002  1754  760  730   892 - -
 K029*  1754  760  730   892 - -
 K036  2170  560  930   820  290  130
 K041  2170  885  355  1600  85  585


Set
Separate strike plates
  • central 15-530E + upper/lower 3615-530Q/31
  • central 19-503 V + upper/lower 3619-503V-31

Locking rails

  • locking rail BD25-2-230ERQH/31 B001
  • keep bolt BS60-230ERQH/31

Handle spindles

B and D function locks are compatible with a split handle spindle depending on the model of the handle:
  • for FSB handles - ANTI-PANIK split handle spindle 0125 (9 mm)
  • for DIECKMANN handles - ANTIK-PANIK split handle spindle 0562 (9 mm)
  • for SUEDMETALL handles - ANTI-PANIK split handle spindle 10.32.0322 (8/9/8 mm)
  • for JNF handles - ANTI-PANIK split handle spindle IN.08.CP (8/9/8 mm)

All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity

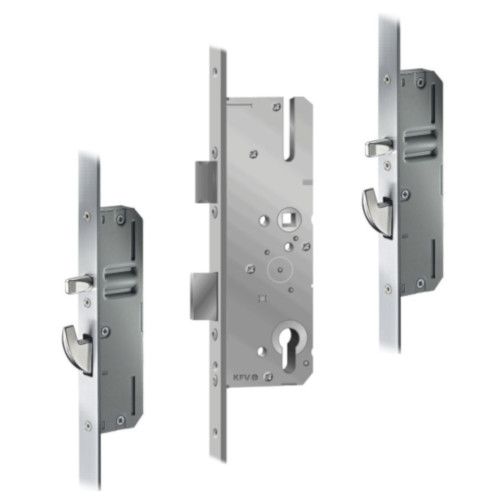

  1. Multi point lock for panic doors EP960 BFSXF/20-55-92-9-N9B001S, B001
    Multi point lock for panic doors EP960 BFSXF/20-55-92-9-N9B001S, B001
    Code: SB00003888
    Art. Nr.: 49 484605
    Price:
    From €720.05
    In Stock: 0 pc.
bolt projection 20 mm
centre distance PZ 72 / 92 mm
class as per EN 12209 (DIN 18251) class 3 according to DIN 18251-3 / class 6 according to EN 12400
compatibility standard German (DIN)
door direction universal use for DIN right and left hand doors
evacuation function B/D/E
face plate width 16 / 20 / 24 mm
face plate finish nerūsējošais tērauds
face plate length 1754 - 2400 mm
face plate shape square or U-profile
fire safety complies with EN standard fire safety requirements
handle square spindle size 9 mm
hook bolt projection 21 mm
installation type mortise
latch key-retractable (central lock/E function)
latch type hooks/bolts
leaf material for wooden, metal and framed doors
load capacity high
lock bolt double turn (central lock)
lock case galvanised closed
lock cutter type B001 / B003 / B298 etc.
lock operation mechanical
lock operation type with key
lock type multi-point lock for hinged doors
locking elements polished nickel-coated
locking function PZ - with profile cylinder hole
Manufacturer KFV
number of locking points 5
possible spindle depth 35 - 65 mm
purpose for exterior doors
round bolt diameter 11 mm
round bolt projection 20 mm
sound insulation yes
suitable for emergency exits complies with 179 and EN 1125 - emergency/panic door equipment
Kas ir evakuācijas durvju slēgšanas funkcijas?
Evakuācijas un trauksmes durvis, kurās iebūvētas pēc EN 179 vai EN 1125 atbilstošas slēdzenes vai vairākpunktu slēdzenes, evakuācijas virzienā bez atslēgas var atvērt vienmēr - arī - aizslēgtā stāvoklī. Evakuācijas funkcija nosaka evakuācijas durvju ...
