Security handles ALPHA ES1 K1 ZA M

Product code
MB00008918
DIECKMANN View catalogue of manufacturer
main product photo
All prices include VAT
From €63.91
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Fast delivery
Delivery by our transport, a courier, or to a parcel locker
Consultations
with industry profesionals
Book a consultation
Secure payments
Online banking, credit cards, REVOLUT,
Google Pay / Apple Pay / Click to Pay
Service
Manufacturers' catalogues, product documentation etc.

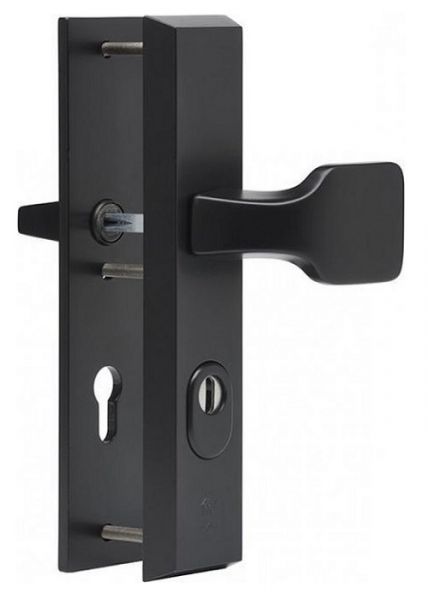

Black aluminium security handle with door knob and cylinder guard ALPHA ES1 K1
Manufacturer - DIECKMANN (Germany)

    • security backplate set with inactive door knob K7 on the outside
    • conforms with security class ES1
    • solid all-metal backplates on door exterior and interior
    • partial 2mm steel core, surface hardened, on exterior plate
    • concealed triple connecting M6 screws, accessible from inside of door
    • M6 positioning studs, drill-resistant, Ø10 mm
    • cylinder projection for cylinder security disc: 12 - 17 mm
    • standard set suitable for door thickness 35-45 mm / 75-85 mm
    • exterior backplate thickness: 15 mm
    • interior backplate thickness: 6 mm
    • centre distance: 72 / 92 mm
    • spindle: 8 / 10 mm
    • backplate length: 240 mm, width: 52 mm
    • door knob width: 93 mm
    • material: black aluminium (RAL9005)

Montāžas instrukcija
Alpha montāžas instrukcija Alpha montāžas instrukcija

Dokumentācija
Sertifikāts ES1 Sertifikāts ES1

    •
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. ALPHA Security backplate set handle/knob K1, PZ 8/72mm, with cylinder security disc, black F14
    ALPHA Security backplate set handle/knob K1, PZ 8/72mm, with cylinder security disc, black F14
    Code: SB00011405
    Art. Nr.: 7650/0000/14
    Price:
    From €63.91
    In Stock: 0 set
    Visma Quote
  2. ALPHA Security backplate set handle/knob K1, PZ 8/92mm, with cylinder security disc, black F14
    ALPHA Security backplate set handle/knob K1, PZ 8/92mm, with cylinder security disc, black F14
    Code: SB00011408
    Art. Nr.: 7652/0000/14 78
    Price:
    From €63.91
    In Stock: 0 pc.
    Visma Quote
  3. ALPHA Security backplate set handle/knob K1, PZ 8/72mm, with cylinder security disc, door thickn. 78mm, black F14
    ALPHA Security backplate set handle/knob K1, PZ 8/72mm, with cylinder security disc, door thickn. 78mm, black F14
    Code: SB00011406
    Art. Nr.: 7650/0000/14 78
    Price:
    From €63.91
    In Stock: 0 set
    Visma Quote

Additional products

  • Products
  • Price
  • In Stock
  • Quantity

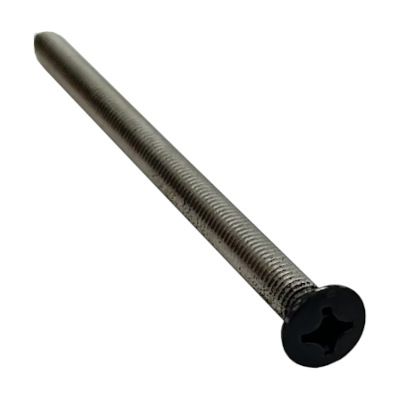

  1. Screw M6x 100mm, black
    Screw M6x 100mm, black
    Code: SB00025002
    Art. Nr.: 9110/0000/F14
    Price:
    From €3.58
    In Stock: 39 pc.
Manufacturer DIECKMANN
Series ALPHA
material aluminium anodised
purpose for exterior doors and doors with increased intruder resistance requirements
leaf material for wooden and metal doors
construction lever handle / inactive door knob
security class ES1
cylinder guard yes
fire safety not suitable for fire safety doors
door thickness 35-85 mm
compatibility standard German (DIN)
door direction universal use for DIN right and left hand doors
centre distance PZ 72 / 85 / 92 mm
backplate/rose size 52 x 240 mm
backplate/rose shape square
outer backplate thickness 15 mm
inner backplate thickness 6 mm
handle length 115 mm
handle square spindle size 8 / 10 mm
distance from rose surface to outer edge of handle 57 mm
door knob shape square
fastening type connecting screws, accessible from inside of door
fastening elements included in set
