Door closer GEZE TS 4000 S with HOLD-OPEN arm - ARRANGEMENT 2 Hold-Open

Product code
TS4000S-SH2-HO
GEZE
main product photo
From €159.30

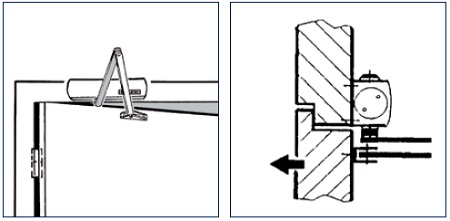

ARRANGEMENT 2 Hold-Open - Installation opposite hinge side, door closer on the frame.

Mounting accessories and auxiliary tools are listed in the section 'Additional products' of our Online shop.
Reset selection
Door closer profile TS 4000 S   €121.79
Hold-open link arm for door closer TS 2000/4000 V BC   €37.51

Price as configured €159.30

kit
The selected product is currently out of stock.
Questions and answers
Ražotāju BIM dati

Door closer GEZE TS 4000 S with hold-open arm
ARRANGEMENT 2 Hold-Open

Manufacturer - GEZE (Germany)


  • door closer with hold-open link arm and delayed closing function
  • suitable for interior and exterior doors with single leaf
  • not suitable for use in fire safety doors
  • door leaf width up to 1400 mm
  • installed opposite hinge side - closer profile screwed onto frame
  • suitable for both left and right hand doors opening either inwards or outwards
  • max opening angle 180°
  • hydraulic latching action which accelerates the door shortly before it is closed
  • visual closing force display for easy control of the setting
  • adjustable closing force - sizes 1 - 6 according to EN 1154 A:
    • size '1'- for leaf width up to 750 mm
    • size '2'- for leaf width up to 850 mm
    • size '3'- for leaf width up to 950 mm
    • size '4'- for leaf width up to 1100 mm
    • size '5'- for leaf width up to 1250 mm
    • size '6'- for leaf width up to 1400 mm
  • adjustable closing speed
  • latching action adjustable via link arm
  • all functions can be set from front (except for latching action)
  • integrated back check function
  • safety valve in opening and closing directions
  • adjustable delayed closing function to set closing speed up to opening angle of 80°
  • profile size: 287 x 46 x 60 mm
  • colours: silver tone, black RAL9005, white RAL9016, brown
  • Auxiliary tools

    Closer profile mounting plate
silver tone
Product code: SB00004574		 white RAL9016
Product code: SB00004598		 brown
Product code: SB00004578		 back RAL9005
Product code: SB00004159

All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Door closer TS 4000 S without link arm, black RAL9005
    Door closer TS 4000 S without link arm, black RAL9005
    Code: SB00004253
    Art. Nr.: 119562
    Price:
    From €172.30
    In Stock: 0 pc.
  2. Door closer TS-4000 S without link arm, brown
    Door closer TS-4000 S without link arm, brown
    Code: SB00004550
    Art. Nr.: 107746
    Price:
    From €172.30
    In Stock: 6 pc.
  3. Door closer TS-4000 S without link arm, silver
    Door closer TS-4000 S without link arm, silver
    Code: SB00004549
    Art. Nr.: 107745
    Price:
    From €121.79
    In Stock: 3 pc.
  4. Door closer TS-4000 S without link arm, white
    Door closer TS-4000 S without link arm, white
    Code: SB00004624
    Art. Nr.: 107747
    Price:
    From €172.30
    In Stock: 3 pc.
  5. Hold Open arm engageable/disengageable for door closer 2000/4000, black
    Hold Open arm engageable/disengageable for door closer 2000/4000, black
    Code: SB00004224
    Art. Nr.: 109545
    Price:
    From €37.51
    In Stock: 5 pc.
  6. Hold Open arm engageable/disengageable for door closer 2000/4000, brown
    Hold Open arm engageable/disengageable for door closer 2000/4000, brown
    Code: SB00004221
    Art. Nr.: 102446
    Price:
    From €37.51
    In Stock: 4 pc.
  7. Hold Open arm engageable/disengageable for door closer 2000/4000, silver
    Hold Open arm engageable/disengageable for door closer 2000/4000, silver
    Code: SB00004220
    Art. Nr.: 102445
    Price:
    From €37.51
    In Stock: 0 pc.
  8. Hold Open arm engageable/disengageable for door closer 2000/4000, white
    Hold Open arm engageable/disengageable for door closer 2000/4000, white
    Code: SB00004222
    Art. Nr.: 102447
    Price:
    From €37.51
    In Stock: 11 pc.

Additional products

  • Products
  • Price
  • In Stock
  • Quantity
  1. Mounting plate for door closer TS 4000/5000, black RAL9005
    Mounting plate for door closer TS 4000/5000, black RAL9005
    Code: SB00004159
    Art. Nr.: 076508
    Price:
    From €7.56
    In Stock: 5 pc.
  2. Mounting plate for door closer 4000/5000, silver
    Mounting plate for door closer 4000/5000, silver
    Code: SB00004574
    Art. Nr.: 049185
    Price:
    From €4.36
    In Stock: 130 pc.
  3. Mounting plate for door closer 4000/5000, brown
    Mounting plate for door closer 4000/5000, brown
    Code: SB00004578
    Art. Nr.: 052351
    Price:
    From €6.96
    In Stock: 43 pc.
  4. Mounting plate for door closer 4000/5000, white
    Mounting plate for door closer 4000/5000, white
    Code: SB00004598
    Art. Nr.: 068627
    Price:
    From €6.96
    In Stock: 150 pc.
application for hinged doors
back check hydraulically adjustable
closer operating type hydraulic closer
closer type with a link arm
closing force size 1-6 according to EN 1154
closing force adjustment continuous control with valve
closing force adjustment position from front
delayed closing function integrated, adjustable
doorstop no
fire safety not suitable for fire safety doors
hold open if combined with fixing arm
installation type opposite hinge side / profile on frame
latching action adjustable with arm link
maximum door width up to 1400 mm
Manufacturer GEZE
