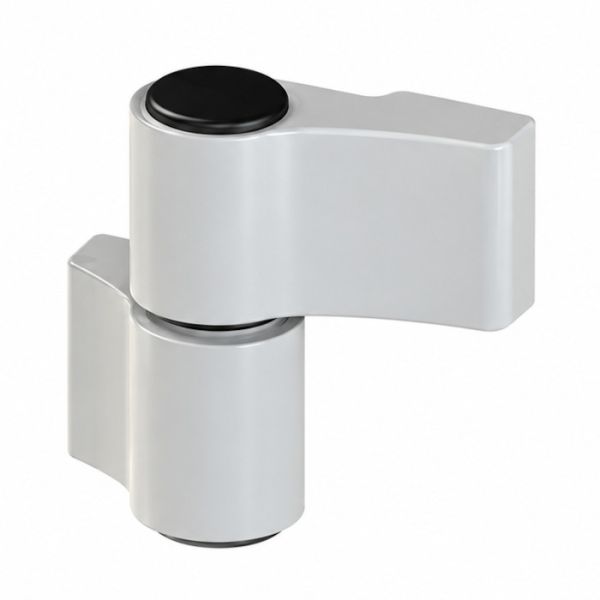

DOMINA HP 2-wings hinges for aluminium doors

2-wings hinges for aluminium doors DOMINA HP

Manufacturer  - GIESSE (Italy)

• frontal application hinges for doors with aluminium profiles
• suitable for installation on high-weight and high-traffic doors in public buildings
• CE certification according to EN1935: use category 4 - heavy duty use
• durability grade 7 - 200 000 test cycles
• SKG anti-burglar certification
• load capacity:
  • 160 kg - with 2 hinges on 1 leaf
  • 180 kg - with 3 hinges on 1 leaf
• micrometic adjustment in 3 directions:
  • lateral: +/- 2,5 mm
  • height: 0 + 4 mm
  • compression: +/- 0,5 mm
• can be adjusted even after the door has been installed
• easy and quick installation - 2 groups of components with high pre-assembling grade
• extruded aluminium shims for application on non- flush profile
• 3 types of fixing systems
• milling diameter: 11 mm
• center-to-center distance between screws: 62.5 mm / 70.5 mm
• finish: silver (other finishes are available on request)

Domina HP hinges can be combined with three different fixing system:

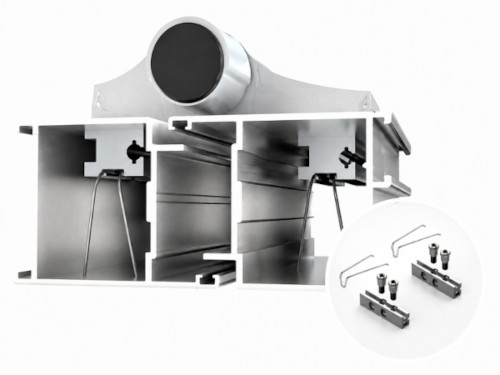

• traditional fixing with counterplates

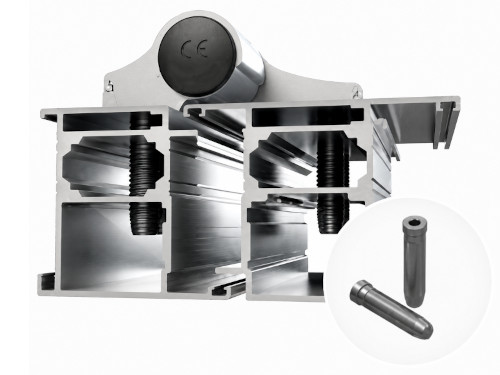

• direct M12 screw for quick fitting (for thermal break profiles)

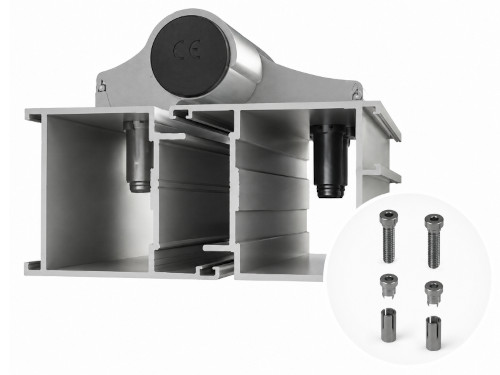

• expansion dowels (for single-groove profiles)

The fixing system is to be chosen depending on the performance required and the type of application.

Both rapid fixing systems M12 screws and expansion dowels are ideal for replacing and / or adding hinges on doors already installed, since they can be used on doors already mounted and on closed perimeter frames.

Both fixing systems don’t need any special machining on the profile, but standard 11 mm drilling that can also be done with the specific templates.

TECHNICAL DOCUMENTATION

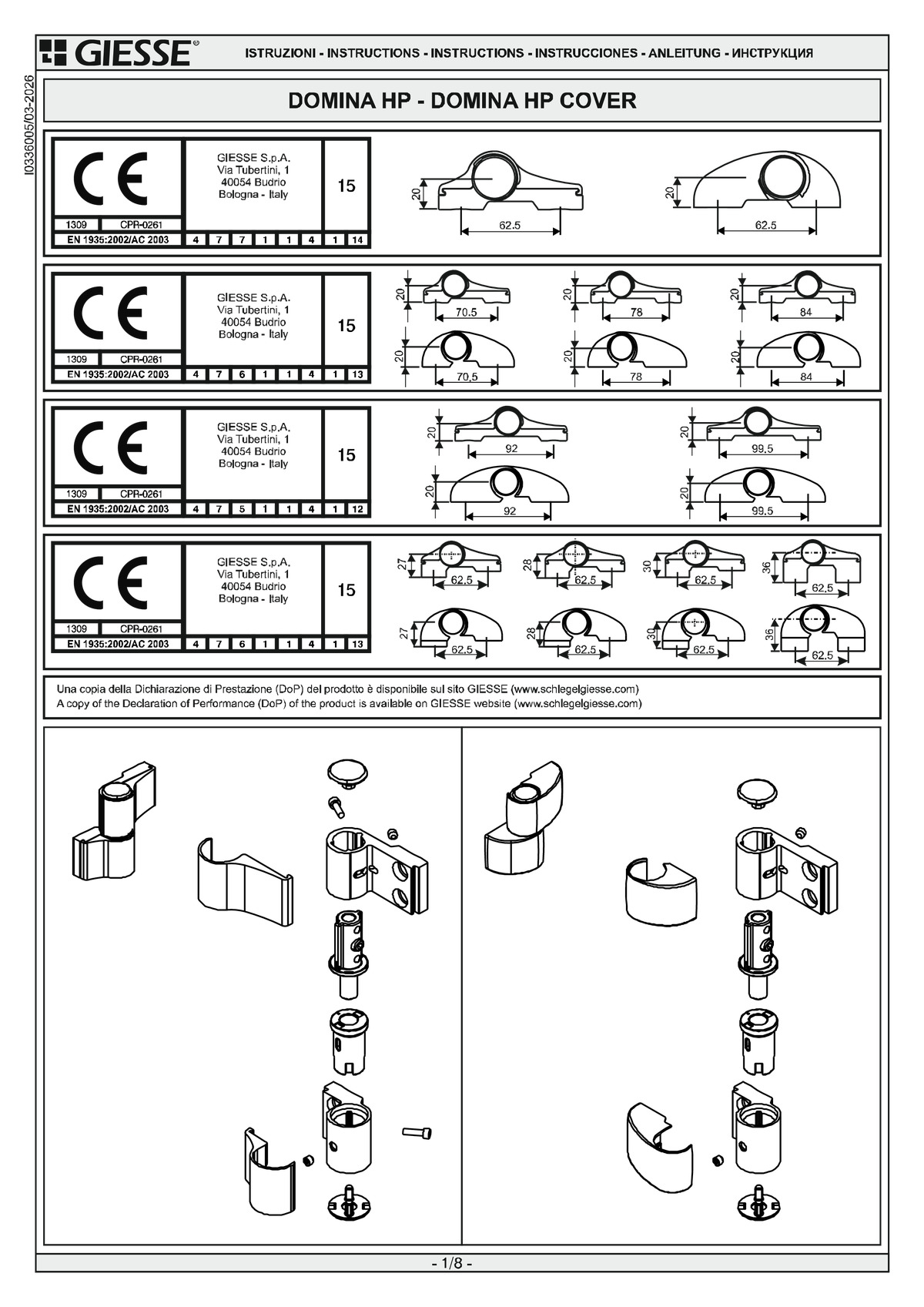

DOMINA HP installation instructions
