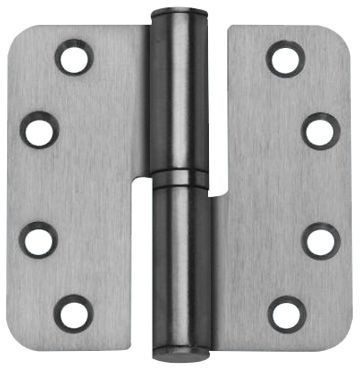

Lift off butt hinges 807
Product code
MB00000259
All prices include VAT
From
€6.53
From
€6.53
In Stock
Only %1 left
Lift off butt hinges 807
Manufacturer - Argenta (Belgium)
Manufacturer - Argenta (Belgium)
-
- fixed stainless steel axle with ball bearing
- stainless steel ring
- please indicate door swing direction upon order
- hinge height: 89 mm
- total width: 89 mm
- roll diameter: 16 mm
- axle diameter: 10 mm
- material thickness: 3 mm
- rounded corners: R 10 mm
- leaf weight: up to 65 kg (3 hinges)
- material: stainless steel
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
RD807 hinge89x89, stainless steel, leftCode: SB00016696Art. Nr.: 855 807/89 NT KRPrice:From €6.53In Stock: 614 pc. -
RD807 hinge 89x89, stainless steel, rightCode: SB00016697Art. Nr.: 855 807/89 NT LAPrice:From €6.53In Stock: 600 pc.
| width | 89 mm |
|---|---|
| adjustment | not adjustable |
| anti-corrosion resistance | not sertified |
| anti-corrosion resistance in accordance with EN 1935 | depends on finish |
| anti-intruder protection | no |
| base assortment | Yes |
| class as per EN 1935 | not certified |
| corner radius | R10 |
| door construction | for non-rebated doors |
| door direction | when ordering please indicate door swing direction |
| fastening elements | must be ordered separately |
| fire safety | suitable for fire and smoke safety doors |
| groove for leaf seal | no |
| height | 89 mm |
| hinge shape | rounded |
| hinge type | standard hinge |
| installation template | available for sale or rent |
| knuckle diameter | 16 mm |
| leaf maximum weight | 65 kg |
| leaf material | wood |
| load capacity | middle |
| maintenance | not required (self-lubricating bearings) |
| Manufacturer | ARLU |
| material | stainless steel |
| material thickness | 3 mm |
| sound insulation | no |
| spindle diameter | 11 mm |
| suitable for aluminium frames | suitable |
| suitable for industrial frames | suitable |
| suitable for steel frames | suitable |
| suitable for timber frames | suitable |
