Concealed hinges for wall panel doors with recessed frame facings TECTUS TE 541 3D FVZ

Name: Concealed hinges for wall panel doors with recessed frame facings TECTUS TE 541 3D FVZ
SKU: MB00000105
Price: 118.56 EUR
Availability: InStock

Product code

MB00000105

View catalogue of manufacturer

Skip to the end of the images gallery

Skip to the beginning of the images gallery

All prices include VAT

From €118.56

Only %1 left

Reset selection

Would like different processing and/or package?

Another surface finish and/or set:

Quantity:

The selected product is currently out of stock.

Description

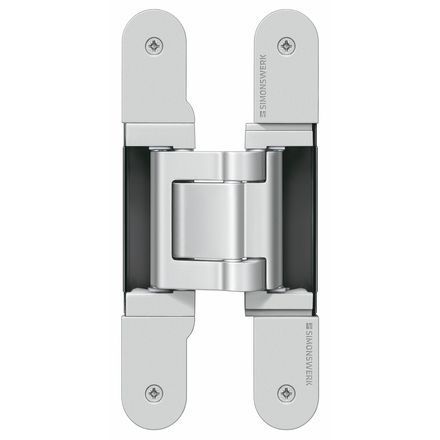

Concealed hinges for wall panel doors with recessed frame facings TECTUS TE 541 3D FVZ
Manufacturer - SIMONSWERK (Germany)

- recessed frame facings up to 14 mm
- suitable for wooden frames, casing frames and aluminium/metal frames
- 3-dimensional adjustability: side (+/- 3 mm), depth (+/- 1 mm) and height (+/- 3 mm)
- opening angle: 180º
- height: 185 mm
- width: 28/32 mm (leaf part), 28/33 mm (frame part)
- milling Ø: 24 mm
- max load: 100 kg (leaf 1000 x 2000 mm with 2 hinges; distance between 1st and 2nd hinge reference line: 1435 mm)
- may be adjusted without removing the door from its frame
- maintenance-free bearings
- winner of design award 2003
- IFT certified, UL certified
- wall material (plasterboard, timber, etc) is offset to the leaf part thus concealing the frame
- material:

- - plastic coating F1 tone
  - plastic coating F2 tone
  - black
  - stainless steel tone

Classification code according to DIN EN 1935
4 7 5 1 1 ^*1 0 12
*depending on surface finish

E-shop

Show only in-stock products

All prices include VAT

Products
Price
In Stock
Quantity

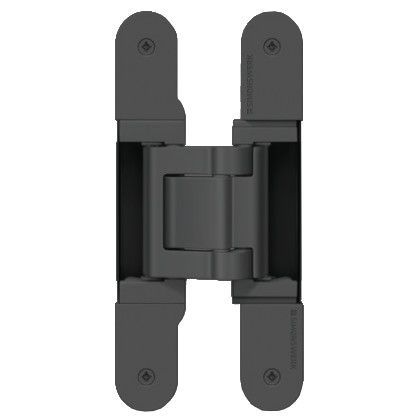

TECTUS TE541 3D FVZ concealed hinge, black RAL9005
Code: SB00008933

Art. Nr.: 500003834

Price:

From €118.56

In Stock: 10 pc.

Quantity:

TECTUS TE541 3D FVZ concealed hinge F1
Code: SB00008934

Art. Nr.: 500003835

Price:

From €118.56

In Stock: 29 pc.

Quantity:

Technical details

Manufacturer	SIMONSWERK
hinge type	concealed hinge
hinge shape	rounded
door construction	for non-rebated doors
door direction	universal use for DIN right and left hand doors
class as per EN 1935	class 4
fire safety	suitable for fire and smoke safety doors
purpose	for functional doors with cladding
leaf material	wood
load capacity	high
leaf maximum weight	100 kg
suitable for aluminium frames	suitable using additional mounting parts
suitable for steel frames	suitable using additional mounting parts
suitable for industrial frames	suitable using additional mounting parts
suitable for timber frames	suitable
anti-corrosion resistance	certified according to EN 1935 - depending on finish
adjustment	adjustable
adjustment type	may be adjusted without removing door from its frame
groove for leaf seal	yes
anti-intruder protection	yes, protected hinge design
cutter diameter	24 mm
collar ring	30 mm
height	185 mm
maintenance	not required (self-lubricating bearings)
installation template	available for sale or rent
fastening elements	included in set
material	ZAMAK
Series	TECTUS
