Electromagnetic solenoid lock EL560/EL561

Electromagnetic solenoid lock EL560/EL561

Product code

MB00001455

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

All prices include VAT

From €684.21

From €684.21

Only %1 left

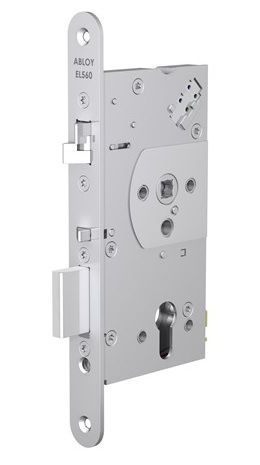

Electromagnetic solenoid lock EL560/EL561
Manufacturer - ABLOY

- mechanical automatic locking
- anti-intruder protection with deadlock (throw 20 mm)
- suitable for fire safety doors
- adaptable exterior handle function
- integrated micro-contacts provide various door and lock positions
- solenoid lock
- lock type: PZ
- self-locking handle-operated lock for wood or metal doors
- suitable for doors with medium usage, with access control system
- lock operation possible also via access control or other remote control systems
- certified for use in fire safety doors, and in emergency and panic doors according to EN179 and EN1125
- not suitable for use with automatic systems
- split spindle: 9 mm
- easily replaceable with standard lock
- connects to only one power source
- compatible with roses or long security backplates
- double action latch
- bolt throw: 20 mm
- operating voltage: 12-24 VDC
- nominal power consumption:
  - 12 V DC standby mode 240 mA, in operation 550 mA
  - 24 V DC standby mode 130 mA, in operation 300 mA
- micro-contact capacity: max 0.5 A 30 V AC/DC resist, 10 W
- temperature limits: from -25 °C to +70 °C
- spindle 55 / 60 / 65 / 80 / 100 mm
- face plate width: 20 or 24 mm
- face plate material:

- - stainless steel

Functionality

- electric operation only for external handle
- lock EL560 interior handle always releases the lock - guaranteed panic exit, lock EL561 interior handle is with electronic function control
- can always be opened mechanically from both sides with a key
- as the door closes, the lock bolt automatically projects, the latch blocks and the door is securely locked in 2 points
- suitable for door with medium usage and access control system, especially where handle locking has to match mechanical safety requirements
- safer alternative for electric strikes

Show only in-stock products

All prices include VAT

Products
Price
In Stock
Quantity

EL560 solenoid lock
Code: SB00009285

Art. Nr.: EL560_100170

Price:

From €684.21

In Stock: 1 pc.

Quantity:

EL560 solenoid lock PZ 55/72-24
Code: SB00019242

Art. Nr.: EL560_100150

Price:

From €721.64

In Stock: 0 pc.

Quantity:

Additional products

Products
Price
In Stock
Quantity

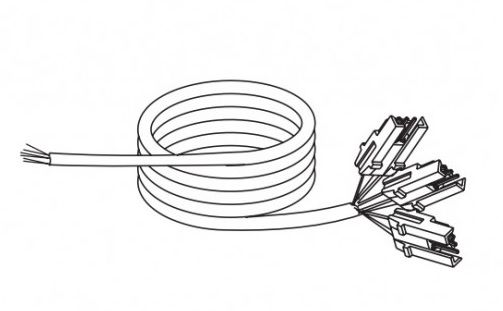

EA218 cable, 6m, for EL solenoids
Code: SB00009270

Art. Nr.: EA218_000000

Price:

From €39.72

In Stock: 1 pc.

Quantity:

Cable connector EA280
Code: SB00009273

Art. Nr.: EA280_100000

Price:

From €30.49

In Stock: 24 pc.

Quantity:

Cable connector EA281
Code: SB00009274

Art. Nr.: EA281

Price:

From €37.70

In Stock: 10 pc.

Quantity:

Technical details

bolt projection	20 mm
bundling options	not compatible with automatic door drives
centre distance PZ	72 mm
class as per EN 12209 (DIN 18251)	class 3 according to EN 122209 / DIN 18251
compatibility standard	German (DIN)
door direction	universal use for DIN right and left hand doors
evacuation function	other
face plate width	20 / 24 mm
face plate finish	stainless steel
face plate length	235 mm
face plate shape	rounded
fire safety	complies with EN standard fire safety requirements
handle square spindle size	9 mm
installation type	mortise
latch	double action latch
leaf material	for wooden and metal doors
load capacity	high
lock operation	solenoid
lock type	single-point lock for hinged doors
locking function	PZ - with profile cylinder hole
Manufacturer	ABLOY
nominal current consumption	240-550 mA (12 V DC) / 130-300 mA (24 V DC)
operating voltage	12-24 VDC
operational temperature range	from -25 °C to +70 °C
possible spindle depth	55/60/65/80/100 mm
purpose	for interior doors / for exterior doors
sound insulation	no
suitable for emergency exits	complies with 179 and EN 1125 - emergency/panic door equipment
