Overhead door closer TS 1000C

Product code
MB00000108
GEZE
main product photo
All prices include VAT
From €37.82
From €37.82
In Stock
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Fast delivery
We cooperate with OMNIVA, VENIPAK and LATVIJAS PASTS
Consultations
with industry profesionals
Reserve consultation time
Secure payments
Online banking, credit cards, Paypal
Service
Manufacturers' catalogues, product documentation etc.
Door closer TS 1000C
Manufacturer - GEZE (Germany)

    • suitable for light interior doors
    • leaf or frame-mounted
    • suitable for left or right hand door opening either inwards or outwards
    • max leaf width - up to 950 mm (1100 mm)
    • adjustable closing speed
    • adjustable hydraulic latching action
    • closing force up to size '3' ('4') according to EN 1154
    • closing force adjustable by turning the link arm’s power shoe:
      • closing force "Weak" - for leaf width up to 850 mm (size '2' according to EN 1154)
      • closing force "Strong" - for leaf width up to 950 mm (size '2' according to EN 1154)
    • increased closing force (requires different installation) - for leaf width up to 1100 mm (size '4' according to EN 1154, opening angle approx. 110º)

Auxiliary tools
    • hold-open link arm allowing the closer to hold doors open between 70° and 150°
    • mounting plate for doors where direct mounting is not possible
    • mounting bracket for link arm

Assembly instructions (LV/ENG)
Door closer 1000/1500/2000/4000 hold-open linkage assembly Door closer 1000/1500/2000/4000 hold-open linkage assembly
Durvju aizvērēja TS 1000 C montāža un regulēšana Durvju aizvērēja TS 1000 C montāža un regulēšana
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity

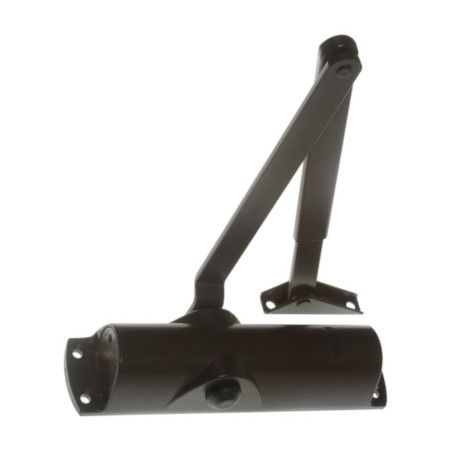

  1. Door closer TS-1000C with link arm, brown
    Door closer TS-1000C with link arm, brown
    Code: SB00004602
    Art. Nr.: 50 71994
    Price:
    From €37.82
    In Stock: 5 pc.
  2. Door closer TS-1000C with link arm, silver tone
    Door closer TS-1000C with link arm, silver tone
    Code: SB00004601
    Art. Nr.: 50 101765
    Price:
    From €37.82
    In Stock: 5 pc.

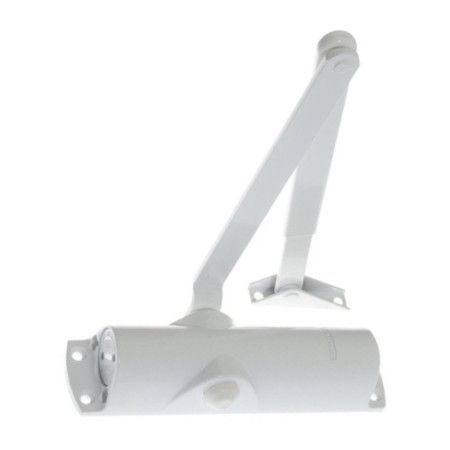

  3. Door closer TS-1000C with link arm, white
    Door closer TS-1000C with link arm, white
    Code: SB00004603
    Art. Nr.: 50 71995
    Price:
    From €37.82
    In Stock: 3 pc.
application for hinged doors
back check no
body dimensions 215 x 52 x 44 mm
closer operating type hydraulic closer
closer type door closer with a link arm
closing force size 2/3 according to EN 1154
closing force adjustment by installation
closing force adjustment position installation position
closing speed adjustable
delayed closing function no
door direction universal use for DIN right and left hand doors
door leaf installation hinge side yes
door leaf installation opposite hinge side yes
doorstop no
hold open if combined with fixing arm
installation type to be screwed on door leaf/frame
latching action adjustable with valve
maximum door width up to 950 mm
maximum opening angle 110°
Manufacturer GEZE
transom installation hinge side no
transom installation opposite hinge side yes
