Door closer GEZE TS 2000 NV BC with standard link arm and lintel casing bracket - ARRANGEMENT KL

Product code
TS2000-NVBC-SH-KL
GEZE
main product photo
From €68.12
ARRANGEMENT KL - Installation door push side, door closer body installed on the bottom of the frame with a lintel casing bracket.

Mounting accessories and auxiliary tools are listed in the section 'Additional products' of our E-shop.
Reset selection
Door closer body TS 2000 NV BC   €38.12
Standard link arm for door closer TS 2000/4000 V BC   €8.23
Lintel casing bracket for door closer TS 2000 NV   €21.78

Price as configured €68.12

kit
The selected product is currently out of stock.
Questions and answers
Ražotāju BIM dati

Door closer GEZE TS 2000 NV BC with standard link arm and lintel casing bracket
ARRANGEMENT KL

Manufacturer - GEZE (Germany)


  • top-mounted door closer body with standard link arm
  • integrated back check that cannot be deactivated
  • suitable for interior and exterior doors with single leaf
  • door leaf width up to 1100 mm
  • installed door push side - closer body screwed on the bottom of the frame with a lintel casing bracket
  • suitable for both left and right hand doors opening either inwards or outwards
  • functions can be set from front (force adjustment from side)
  • adjustable closing speed
  • integrated back check slows the closer down in a set angle - it becomes more difficult to open in order to prevent the door from swinging open at too wide an angle
  • back check activates at ~80° opening angle, the angle is not adjustable
  • hydraulic latching action, adjustable via valve
  • closing force can be adjusted via valve, fitting to sizes 2-4 according to EN 1154
  • max opening angle: 180º
  • suitable use in fire and smoke safety doors
  • closer body size: 226 x 48 x 60 mm
  • colours: silver, black RAL9005, white RAL9016, dark brown


Additional components required for installation
  • Lintel casing bracket
    Closer body can be screwed on the bottom of the door frame
silver tone
Product code: SB00022215		 white RAL9016
Product code: SB0022226		 dark brown
Product code: SB00022216		 black RAL9005
Product code: SB00022227


All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Door closer body TS 2000 NV BC, white
    Door closer body TS 2000 NV BC, white
    Code: SB00022143
    Art. Nr.: 124946
    Price:
    From €38.12
    In Stock: 9 pc.
  2. Door closer body TS 2000 NV BC, dark brown
    Door closer body TS 2000 NV BC, dark brown
    Code: SB00022144
    Art. Nr.: 124945
    Price:
    From €38.12
    In Stock: 2 pc.
  3. Door closer body TS 2000 NV BC, black RAL9005
    Door closer body TS 2000 NV BC, black RAL9005
    Code: SB00022145
    Art. Nr.: 205332
    Price:
    From €39.93
    In Stock: 0 pc.
  4. Door closer body TS 2000 NV BC, silver tone
    Door closer body TS 2000 NV BC, silver tone
    Code: SB00020803
    Art. Nr.: 124944
    Price:
    From €38.12
    In Stock: 90 pc.

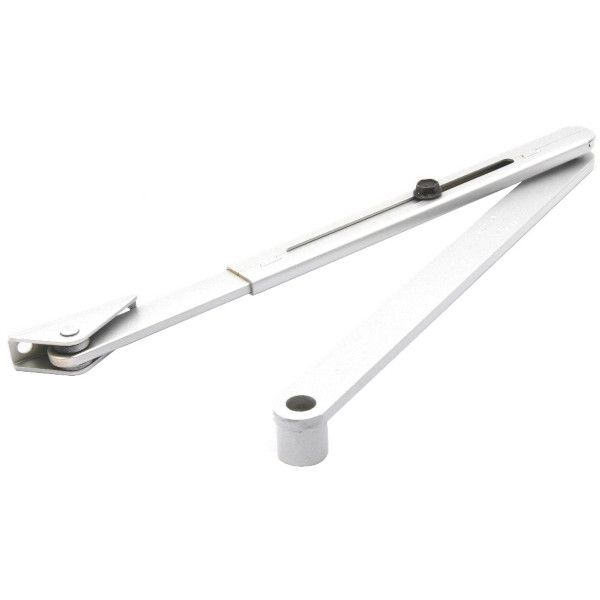

  5. Standard link arm for door closer 2000/4000 white
    Standard link arm for door closer 2000/4000 white
    Code: SB00004614
    Art. Nr.: 102423
    Price:
    From €8.23
    In Stock: 51 pc.

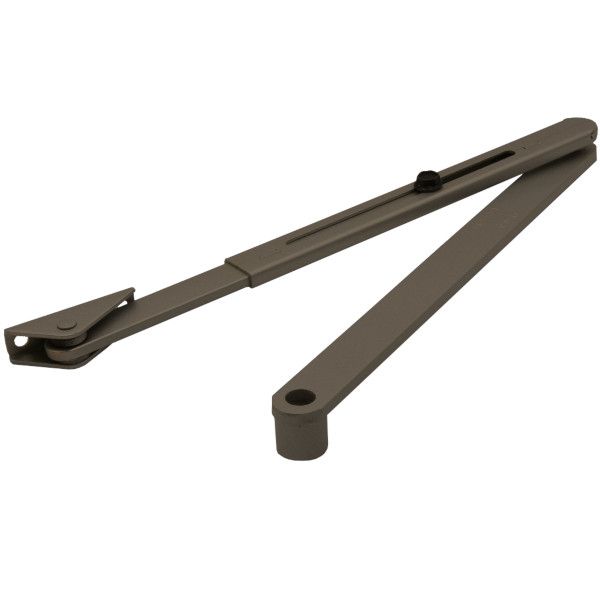

  6. Standard link arm for door closer TS-2000/4000 dark brown
    Standard link arm for door closer TS-2000/4000 dark brown
    Code: SB00004613
    Art. Nr.: 102422
    Price:
    From €8.23
    In Stock: 0 pc.

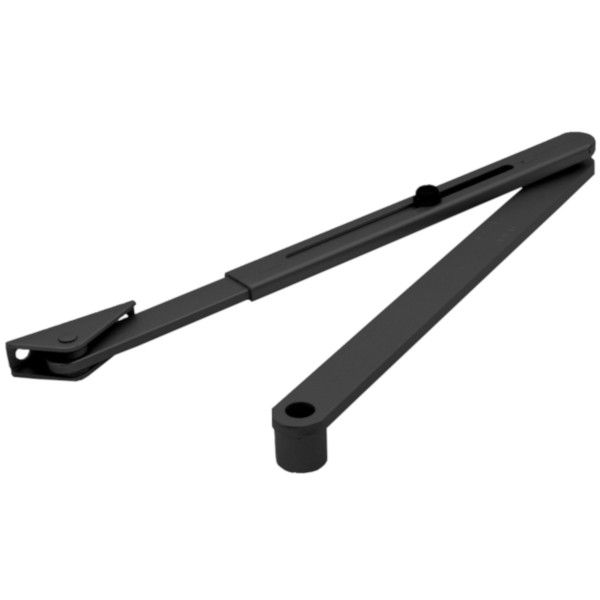

  7. Standard link arm for door closer TS 2000/4000, black RAL9005
    Standard link arm for door closer TS 2000/4000, black RAL9005
    Code: SB00004219
    Art. Nr.: 109544
    Price:
    From €8.23
    In Stock: 257 pc.

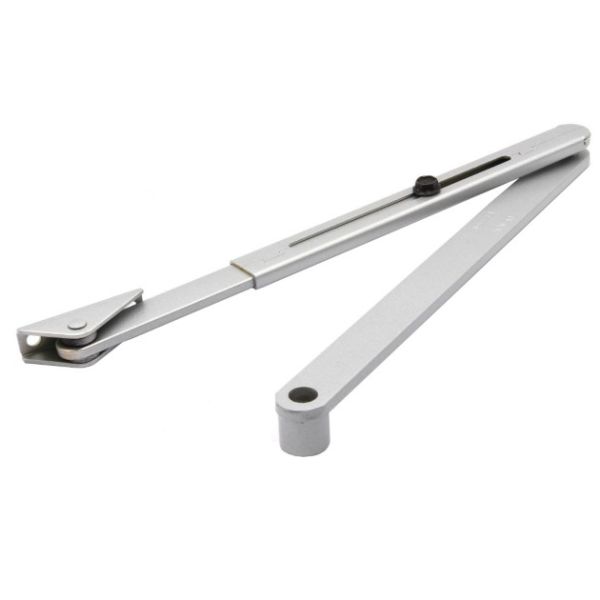

  8. Standard link arm for door closer TS-2000/4000 silver coloured
    Standard link arm for door closer TS-2000/4000 silver coloured
    Code: SB00004612
    Art. Nr.: 102421
    Price:
    From €8.23
    In Stock: 40 pc.

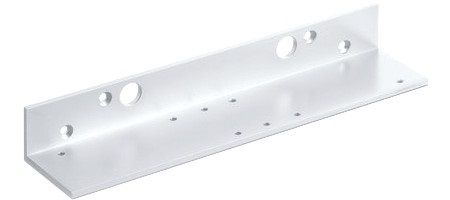

  9. Lintel casing bracket for door closer TS 2000 NV, white RAL9016
    Lintel casing bracket for door closer TS 2000 NV, white RAL9016
    Code: SB00022226
    Art. Nr.: 127433 RAL9016
    Price:
    From €21.78
    In Stock: 0 pc.

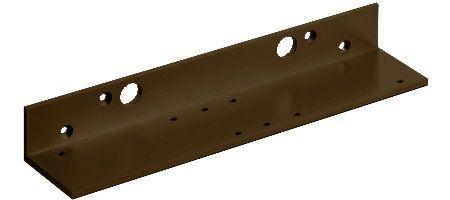

  10. Lintel casing bracket for door closer TS 2000 NV, dark brown
    Lintel casing bracket for door closer TS 2000 NV, dark brown
    Code: SB00022216
    Art. Nr.: 127433 BROWN
    Price:
    From €21.78
    In Stock: 2 pc.
  11. Lintel casing bracket for door closer TS 2000 NV, black RAL9005
    Lintel casing bracket for door closer TS 2000 NV, black RAL9005
    Code: SB00022227
    Art. Nr.: 127433 RAL9005
    Price:
    From €21.78
    In Stock: 0 pc.

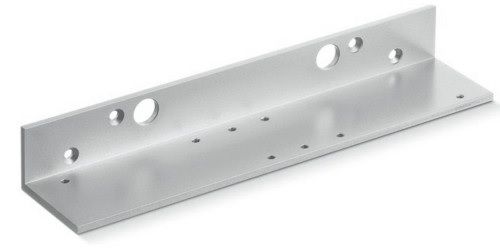

  12. Lintel casing bracket for door closer TS 2000 NV, silver tone
    Lintel casing bracket for door closer TS 2000 NV, silver tone
    Code: SB00022215
    Art. Nr.: 127432
    Price:
    From €21.78
    In Stock: 13 pc.
Manufacturer GEZE
application for hinged doors
closing force size 2-4 according to EN 1154
back check hydraulically adjustable
maximum single leaf width up to 1100 mm
latching action adjustable with valve
doorstop no
closing force adjustment position from the side
closing force adjustment continuous control with valve
closer operating type hydraulic closer
closer type with a link arm
installation type opposite hinge side / profile on frame
link arm type Hold-Open WITH on/off switch
fire safety suitable for fire safety doors
installation type to be screwed on door leaf/frame
Vērtņu skaits 1 vērtne
Series TS 2000
hold open no
