Door closer GEZE TS 2000 NV BC with HOLD-OPEN link arm and mounting bracket - ARRANGEMENT RL Hold-Open

Product code
TS2000-NVBC-SH-RL-HO
GEZE

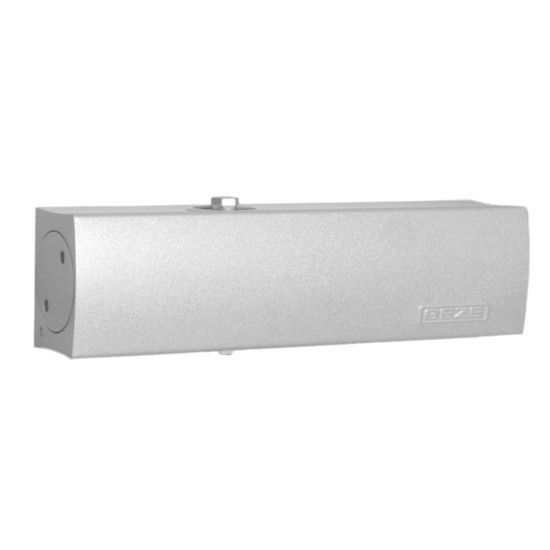

main product photo
From €85.12
ARRANGEMENT RL Hold-Open - Installation door push side, the door closer body on the leaf, the link arm installed on the bottom of the frame with a mounting bracket.
In a closed position, the link arm is parallel to the door.

Mounting accessories and auxiliary tools are listed in the section 'Additional products' of our E-shop.
Reset selection
Door closer body TS 2000 NV BC   €39.51
Hold-open link arm for door closer TS 2000/4000 V BC   €39.45
Mounting bracket for link arm TS 2000/4000   €6.17

Price as configured €85.12

kit
The selected product is currently out of stock.
Questions and answers
Ražotāju BIM dati

Door closer GEZE TS 2000 NV BC with hold-open link arm and mounting bracket
ARRANGEMENT RL Hold-Open

Manufacturer - GEZE (Germany)


  • top-mounted door closer body with hold-open link arm
  • integrated back check that cannot be deactivated
  • suitable for interior and exterior doors with single leaf
  • door leaf width up to 1100 mm
  • installed door push side - closer body screwed on the leaf, link arm screwed on the bottom of the frame with mounting bracket
  • in closed position, link arm is parallel to door
  • suitable for both left and right hand doors opening either inwards or outwards
  • functions can be set from front (force adjustment from side)
  • adjustable closing speed
  • integrated back check slows the closer down in a set angle - it becomes more difficult to open in order to prevent the door from swinging open at too wide an angle
  • back check activates at ~80° opening angle, the angle is not adjustable
  • hydraulic latching action, adjustable via valve
  • closing force can be adjusted via valve, fitting to sizes 2-4 according to EN 1154
  • max opening angle: 180º
  • mechanical hold-open arm with on/off switch
  • adjustable hold-open angle: 70º - 150º
  • not suitable for use in fire and smoke safety doors
  • closer body size: 226 x 48 x 60 mm
  • colours: silver, black RAL9005, white RAL9016, dark brown

Additional components required for installation
  • Mounting bracket for link arm
    Link arm can be mounted on the bottom of the frame

silver tone
Product code: SB00004626		 white RAL9016
Product code: SB00004153		 dark brown
Product code: SB00004625



Auxiliary tools
  • Closer body mounting plate, galvanised
    Closer can be secured on the surface in more places other than the 3 screws on the closer's body.
    Product code: SB00022195
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Door closer body TS 2000 NV BC, white
    Door closer body TS 2000 NV BC, white
    Code: SB00022143
    Art. Nr.: 124946
    Price:
    From €39.51
    In Stock: 78 pc.

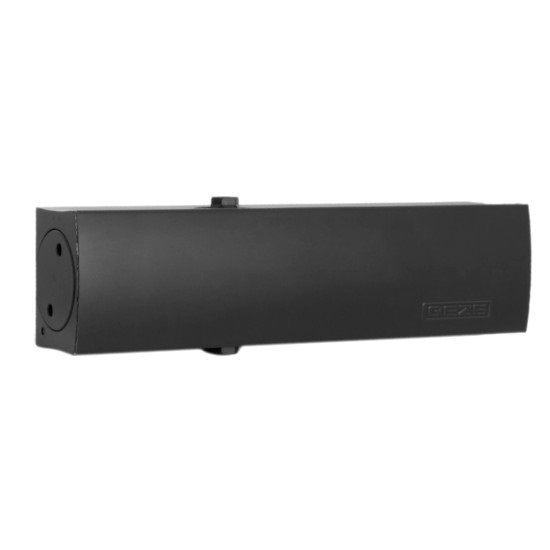

  2. Door closer body TS 2000 NV BC, black RAL9005
    Door closer body TS 2000 NV BC, black RAL9005
    Code: SB00022145
    Art. Nr.: 205332
    Price:
    From €41.38
    In Stock: 1 pc.
  3. Door closer body TS 2000 NV BC, silver tone
    Door closer body TS 2000 NV BC, silver tone
    Code: SB00020803
    Art. Nr.: 124944
    Price:
    From €39.51
    In Stock: 197 pc.
  4. Door closer body TS 2000 NV BC, dark brown
    Door closer body TS 2000 NV BC, dark brown
    Code: SB00022144
    Art. Nr.: 124945
    Price:
    From €39.51
    In Stock: 112 pc.

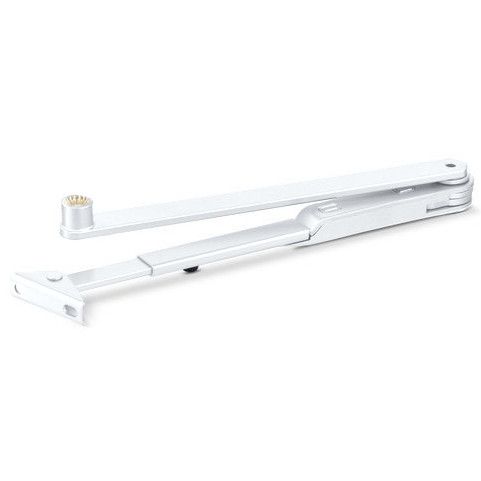

  5. Hold Open arm engageable/disengageable for door closer 2000/4000, white
    Hold Open arm engageable/disengageable for door closer 2000/4000, white
    Code: SB00004222
    Art. Nr.: 102447
    Price:
    From €39.45
    In Stock: 20 pc.

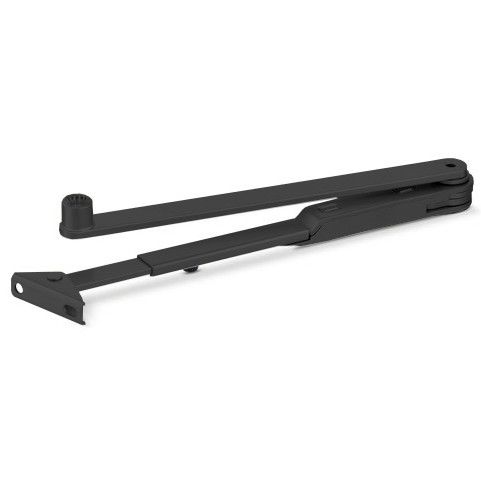

  6. Hold Open arm engageable/disengageable for door closer 2000/4000, black
    Hold Open arm engageable/disengageable for door closer 2000/4000, black
    Code: SB00004224
    Art. Nr.: 109545
    Price:
    From €39.45
    In Stock: 4 pc.

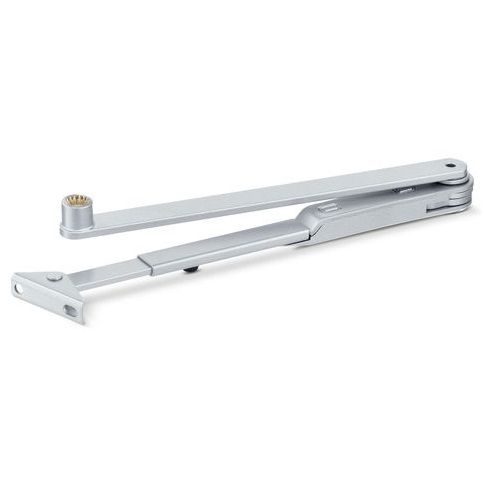

  7. Hold Open arm engageable/disengageable for door closer 2000/4000, silver
    Hold Open arm engageable/disengageable for door closer 2000/4000, silver
    Code: SB00004220
    Art. Nr.: 102445
    Price:
    From €39.45
    In Stock: 33 pc.
  8. Hold Open arm engageable/disengageable for door closer 2000/4000, dark brown
    Hold Open arm engageable/disengageable for door closer 2000/4000, dark brown
    Code: SB00004221
    Art. Nr.: 102446
    Price:
    From €39.45
    In Stock: 12 pc.

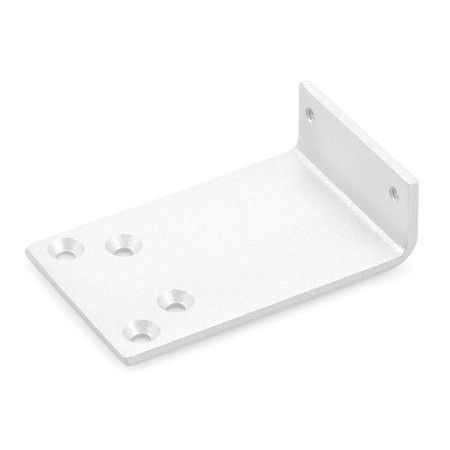

  9. Monting bracket for link arm TS 2000/4000, white RAL9016
    Monting bracket for link arm TS 2000/4000, white RAL9016
    Code: SB00004153
    Art. Nr.: 027460
    Price:
    From €13.92
    In Stock: 2 pc.

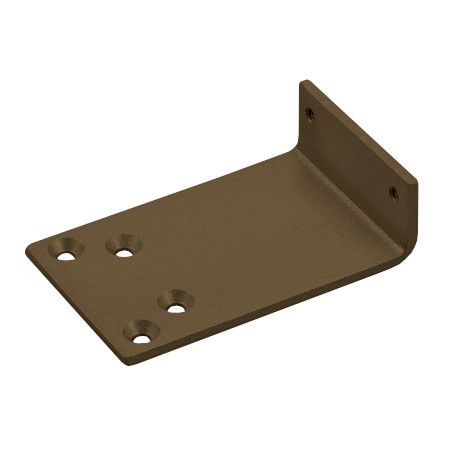

  10. Monting bracket for link arm 4000/2000, dark brown
    Monting bracket for link arm 4000/2000, dark brown
    Code: SB00004625
    Art. Nr.: 053319
    Price:
    From €18.28
    In Stock: 0 pc.

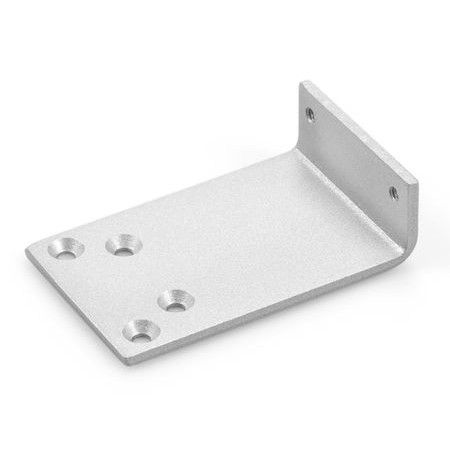

  11. Monting bracket for link arm 4000/2000, silver
    Monting bracket for link arm 4000/2000, silver
    Code: SB00004626
    Art. Nr.: 053318
    Price:
    From €6.17
    In Stock: 29 pc.

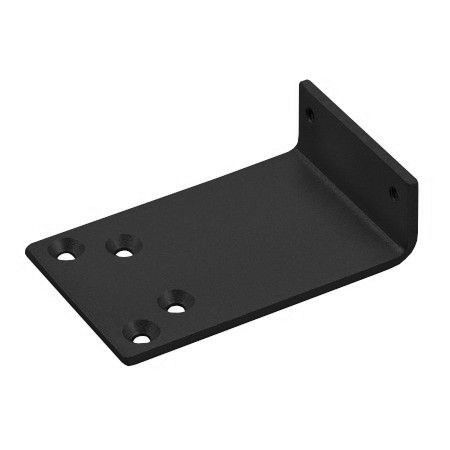

  12. Monting bracket for link arm 4000/2000, black RAL9005
    Monting bracket for link arm 4000/2000, black RAL9005
    Code: SB00026017
    Art. Nr.: 027460 RAL9005
    Price:
    From €13.78
    In Stock: 5 pc.

Additional products

  • Products
  • Price
  • In Stock
  • Quantity
  1. Mounting plate for door closer TS 2000 NV, galvanized
    Mounting plate for door closer TS 2000 NV, galvanized
    Code: SB00022195
    Art. Nr.: 126234
    Price:
    From €5.93
    In Stock: 0 pc.
Manufacturer GEZE
Series TS 2000
closer operating type hydraulic closer
closer type with a link arm
link arm type Hold-Open WITH on/off switch
application for hinged doors
installation type to be screwed on door leaf/frame
installation type opposite hinge side / profile on leaf
Vērtņu skaits 1 vērtne
fire safety not suitable for fire safety doors
closing force size 2-4 according to EN 1154
closing force adjustment continuous control with valve
closing force adjustment position from the side
back check hydraulically adjustable
maximum single leaf width up to 1100 mm
latching action adjustable with valve
hold open yes, with fixing arm
doorstop no
