Door closer GEZE TS 3000 V with guide rail T-STOP BG TS 5000/3000 and mounting bracket - ARRANGEMENT BG-SL

Product code
TS3000-V-BG-L-TS
From €160.93
ARRANGEMENT BG-SL - with BG guide rail and mounting bracket
Installation door push side, the door closer body on the leaf, and the guide rail installed onto the bottom of the frame with a mounting bracket.

Mounting accessories and auxiliary tools are listed in the section 'Additional products' of our Online shop.
Reset selection
Door closer body GEZE TS 3000V   €70.18
Guide rail T-STOP BG TS 5000/3000   €58.69
Mounting bracket for guide rail T-STOP TS-3000/5000   €32.07

Price as configured €160.93

kit
The selected product is currently out of stock.

Door closer GEZE TS 3000 V with guide rail T-STOP BG TS 5000/3000 and mounting bracket
ARRANGEMENT BG-SL - with mounting bracket

Manufacturer - GEZE (Germany)


  • top-mounted door closer body with guide rail T-STOP BG TS 5000/3000 and mounting bracket
  • suitable for interior and exterior doors with single leaf
  • door leaf width up to 1100 mm
  • installed door push side - closer body screwed onto leaf
  • guide rail screwed on the bottom of the frame with a mounting bracket
  • suitable for both left and right hand doors opening either inwards or outwards
  • front adjusted thermo-constant closing speed
  • front adjusted hydraulic latching action speed
  • closing force adjustable via valve on side of profile
  • adjustable closing force - sizes 1 - 4 according to EN 1154 A
    size '1'- for leaf width up to 750 mm
    size '2'- for leaf width up to 850 mm
    size '3'- for leaf width up to 950 mm
    size '4'- for leaf width up to 1100 mm
  • max opening angle: 180º
  • not certified for use in fire and smoke safety doors
  • closer body size: 226 x 46 x 60 mm
  • colours: silver, white RAL9016, dark brown, black RAL9005

Types of guide rails

Standard guide rail
  • with click-in controller
  • not suitable for heavy impact
  • opening restrictor available separately
  • size (length x width x height): 448.5 x 30.5 x 20.5 mm

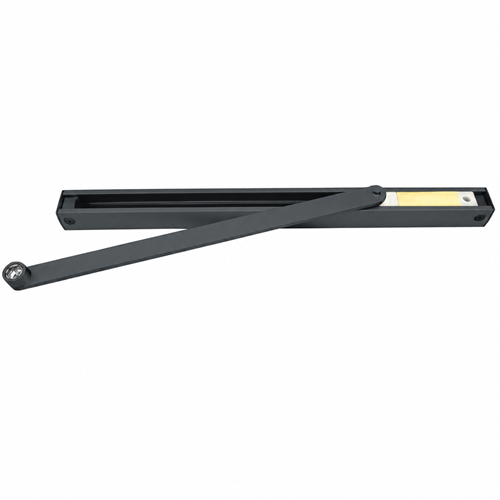

T-STOP guide rail

  • extra durable guide rail with screwed-in, non-removable controller
  • resistant against lateral wind pressure against exterior doors
  • suitable for heavy usage indoors
  • integrated opening restrictor
  • size (length x width x height): 452.5 x 33 x 30 mm



Both guide rails have identical fastening with 2 screws and identical mounting points against the door closer profile. Thus, the rails are easily interchangeable without changing the fastening.



Additional components required for installation

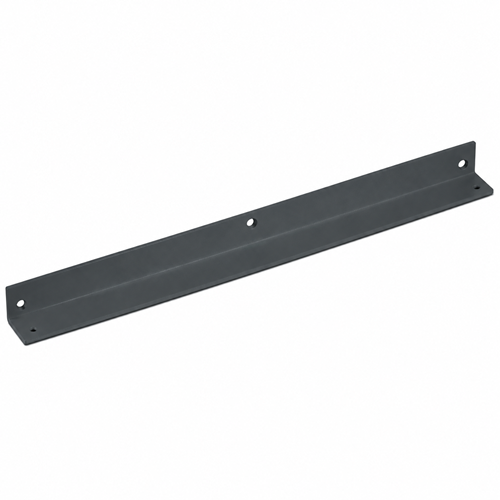

  • Mounting bracket for guide rail
    Guide rail can be mounted onto the bottom of the frame
silver tone / standard guid rail
Product code: SB00004543
white RAL9016 / standard guid rail
Product code: SB00004165
dark brown / standard guid rail
Product code: SB00004562
black RAL9005 / standard guid rail
Product code: SB00004139

silver tone / T-STOP guid rail
Product code: SB00022455
white RAL9016 / T-STOP guid rail
Product code: SB00022456
dark brown / T-STOP guid rail
Product code: SB00022457
black RAL9005 / T-STOP guid rail
Product code: SB00022458


Auxiliary tools
  • Closer body mounting plate 226 x 60 x 5 mm
    Closer can be secured on the surface in more places other than the 3 screws on the closer's body.
silver tone
Product code: SB00004265
white RAL9016
Product code: SB00004266
dark brown
Product code: SB00004102
black RAL9005
Product code: SB00004103


  • Integrated opening restrictor
    Alternative to doorstops.
    Product code: SB00004599


  • Integrated mechanical Hold-Open device
    Holds the door in an open position. Only for use in doors without fire safety requirements!
    Product code: SB00004600




All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. Door closer body GEZE TS 3000 V without guide rail, black RAL9005
    Door closer body GEZE TS 3000 V without guide rail, black RAL9005
    Code: SB00004158
    Art. Nr.: 119583
    Price:
    From €70.18
    In Stock: 13 pc.
  2. Door closer body TS-3000 V without guide rail, dark brown
    Door closer body TS-3000 V without guide rail, dark brown
    Code: SB00004552
    Art. Nr.: 028349
    Price:
    From €70.18
    In Stock: 5 pc.
  3. Door closer body TS-3000 V without guide rail, silver
    Door closer body TS-3000 V without guide rail, silver
    Code: SB00004551
    Art. Nr.: 028348
    Price:
    From €70.18
    In Stock: 101 pc.
  4. Door closer body TS-3000 V without guide rail, white
    Door closer body TS-3000 V without guide rail, white
    Code: SB00004553
    Art. Nr.: 028350
    Price:
    From €70.18
    In Stock: 0 pc.
  5. Guide rail for door closer T-STOP BG TS 5000/3000, white RAL9016
    Guide rail for door closer T-STOP BG TS 5000/3000, white RAL9016
    Code: SB00004256
    Art. Nr.: 108482
    Price:
    From €58.69
    In Stock: 0 pc.
  6. Guide rail for door closer T-STOP BG TS 5000/3000, black RAL9005
    Guide rail for door closer T-STOP BG TS 5000/3000, black RAL9005
    Code: SB00022136
    Art. Nr.: 102368 RAL 9005
    Price:
    From €58.69
    In Stock: 2 pc.
  7. Guide rail for door closer T-STOP BG TS 5000/3000, silver tone
    Guide rail for door closer T-STOP BG TS 5000/3000, silver tone
    Code: SB00004216
    Art. Nr.: 102366
    Price:
    From €58.69
    In Stock: 3 pc.
  8. Guide rail for door closer T-STOP BG TS 5000/3000, dark brown
    Guide rail for door closer T-STOP BG TS 5000/3000, dark brown
    Code: SB00004217
    Art. Nr.: 102368 Dark Bronze
    Price:
    From €58.69
    In Stock: 1 pc.
  9. Mounting bracket for guide rail T-STOP BG, white RAL9016
    Mounting bracket for guide rail T-STOP BG, white RAL9016
    Code: SB00022456
    Art. Nr.: 115007 white RAL 9016
    Price:
    From €32.07
    In Stock: 1 pc.
  10. Mounting bracket for guide rail T-STOP BG, dark brown
    Mounting bracket for guide rail T-STOP BG, dark brown
    Code: SB00022457
    Art. Nr.: 115007 dark Bronze
    Price:
    From €32.07
    In Stock: 0 pc.
  11. Mounting bracket for guide rail T-STOP BG, black RAL9005
    Mounting bracket for guide rail T-STOP BG, black RAL9005
    Code: SB00022458
    Art. Nr.: 115007 black RAL 9005
    Price:
    From €32.07
    In Stock: 1 pc.
  12. Mounting bracket for guide rail T-STOP BG, silver
    Mounting bracket for guide rail T-STOP BG, silver
    Code: SB00022455
    Art. Nr.: 115006
    Price:
    From €32.67
    In Stock: 0 pc.

Additional products

  • Products
  • Price
  • In Stock
  • Quantity
  1. Mounting plate for door closer TS-3000, silver
    Mounting plate for door closer TS-3000, silver
    Code: SB00004265
    Art. Nr.: 011230
    Price:
    From €5.26
    In Stock: 41 pc.
  2. Mounting plate for door closer TS-3000, white
    Mounting plate for door closer TS-3000, white
    Code: SB00004266
    Art. Nr.: 011233
    Price:
    From €7.38
    In Stock: 0 pc.
  3. Mounting plate for door closer TS-3000, dark brown
    Mounting plate for door closer TS-3000, dark brown
    Code: SB00004102
    Art. Nr.: 011232
    Price:
    From €7.38
    In Stock: 3 pc.
  4. Mounting plate for door closer, black RAL9005
    Mounting plate for door closer, black RAL9005
    Code: SB00004103
    Art. Nr.: 135237
    Price:
    From €9.08
    In Stock: 4 pc.
  5. Opening restrictor for GEZE BOXER guide rails 20,7 mm
    Opening restrictor for GEZE BOXER guide rails 20,7 mm
    Code: SB00004599
    Art. Nr.: 069780
    Price:
    From €15.49
    In Stock: 46 pc.
  6. Guide rail locking unit for GEZE standard door closers - compatible with T-stop guide rail / Boxer 20.7 mm guide rail
    Guide rail locking unit for GEZE standard door closers - compatible with T-stop guide rail / Boxer 20.7 mm guide rail
    Code: SB00004600
    Art. Nr.: 071924
    Price:
    From €15.73
    In Stock: 26 pc.
application for hinged doors
back check no
closer operating type hydraulic closer
closer type with a track
closing force size 1-4 according to EN 1154
closing force adjustment continuous control with valve
closing force adjustment position from the side
doorstop built-in
fire safety suitable for fire safety doors
hold open built-in
installation type opposite hinge side / profile on leaf
latching action adjustable with valve
maximum single leaf width up to 1100 mm
Manufacturer GEZE
Series TS 3000
Vērtņu skaits 1 vērtne
