Door closer GEZE TS 5000 L with standard guide rail TS 5000/3000 - ARRANGEMENT L

Door closer GEZE TS 5000 with standard guide rail TS 5000/3000
ARRANGEMENT L

Manufacturer - GEZE (Germany)

• top-mounted door closer body with standard guide rail TS 5000/3000
• suitable for interior and exterior doors with single leaf
• door leaf width up to 1400 mm
• installed door pull side - closer body installed on frame, guide rail on leaf
• suitable for both left and right hand doors opening either inwards or outwards
• front adjusted thermo-constant closing speed
• front adjusted hydraulic latching action speed, thermo-constant closing speed and soft close mechanism
• adjustable closing force - sizes 2 - 6 according to EN 1154 A
  • size '2'- for leaf width up to 850 mm
  • size '3'- for leaf width up to 950 mm
  • size '4'- for leaf width up to 1100 mm
  • size '5'- for leaf width up to 1250 mm
  • size '6'- for leaf width up to 1400 mm
• max opening angle: 180º
• not certified for use in fire and smoke safety doors
• closer body size: 287 x 47 x 60 mm
• colours: silver, white RAL9016, dark brown, black RAL9005

• with click-in controller
• not suitable for heavy impact
• opening restrictor available separately
• size (length x width x height): 448.5 x 30.5 x 20.5 mm

• extra durable guide rail with screwed-in, non-removable controller
• resistant against lateral wind pressure against exterior doors
• suitable for heavy usage indoors
• integrated opening restrictor
• size (length x width x height): 452.5 x 33 x 30 mm

• Closer body mounting plate 287 x 60 x 5 mm
  Closer can be secured on the surface in more places other than the 3 screws on the closer's profile.


silver tone Product code: SB00004574	white RAL9016 Product code: SB00004598	dark brown Product code: SB00004578	black RAL9005 Product code: SB00004159

• Guide rail mounting plate 40 x 448.5 mm
  Guide rail can be installed further away from the edge of frame or leaf.

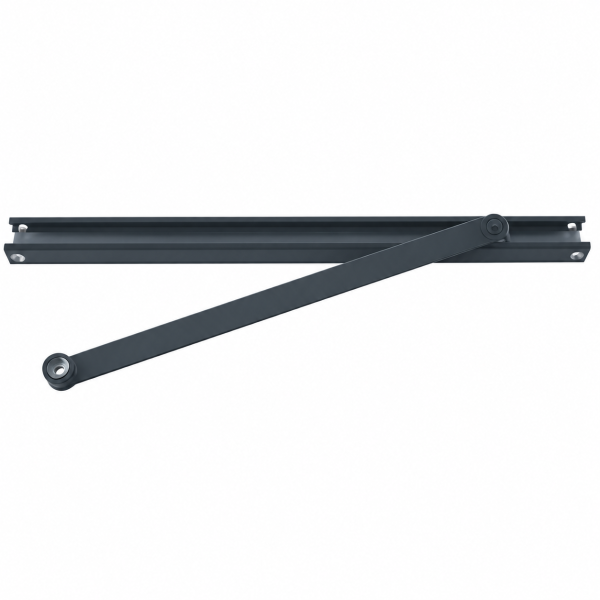

silver tone Product code: SB00004336	white RAL9016 Product code: SB00004337	dark brown Product code: SB00004339	black RAL9005 Product code: SB00004338

• Integrated opening restrictor
  Alternative to doorstops.
  Product code: SB00004599

• Integrated mechanical Hold-Open device
  Holds the door in an open position. Only for use in doors without fire safety requirements!
  Product code: SB00004600

• Guide rail controller
  Service component - for replacement of a broken plastic controller.
  Product code: SB00004258
