Closing system for double doors GEZE TS 5000L E-ISM BG with closing sequence control and electric hold-open device

Closing system for double doors GEZE TS 5000L E-ISM BG with built-in hold-open device

Manufacturer - GEZE (Germany)

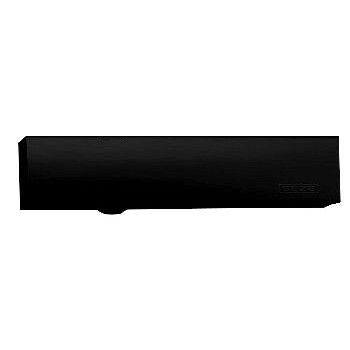

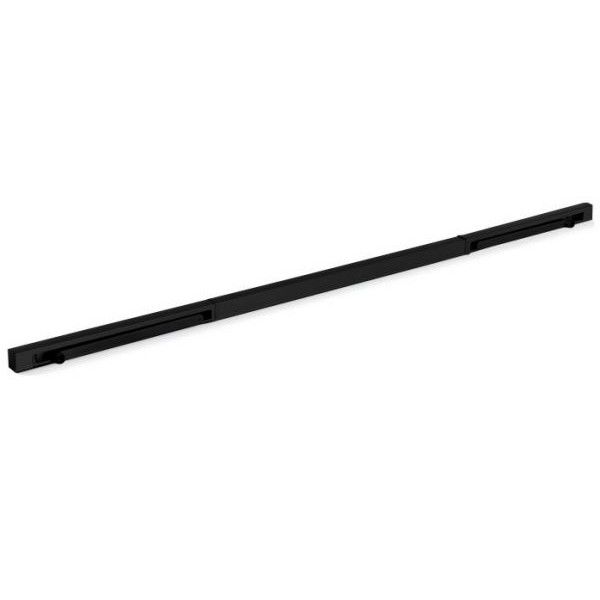

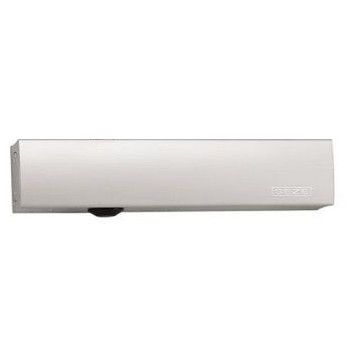

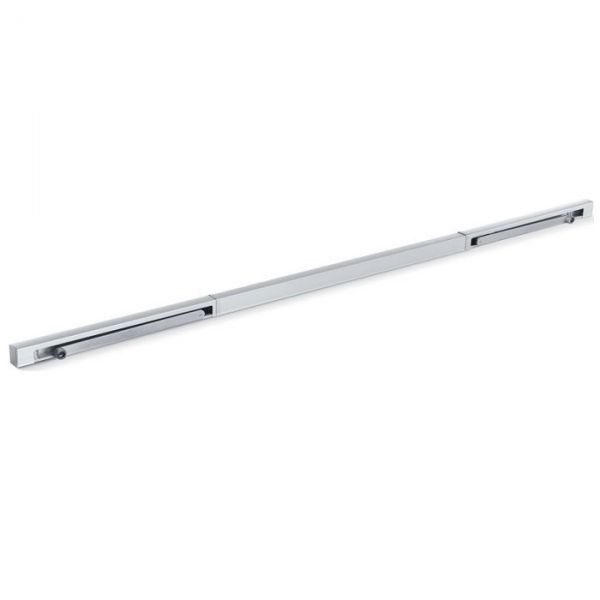

• door closer for double doors with two closer profiles and a guide rail with a built-in door closing coordinator and a hold-open device for both door leaves
• door closing coordinator ensures correct closing order of door leaves – passive leaf first, then the active one
• suitable for double fire safety doors that must remain open:
  • the guide rail feeds 24V power from the fire detection and alarm system, and the door remains in an open position
  • in case of an emergency, the power supply is interrupted, and the door automatically closes in the correct order
  • it is recommended to install a local switch near the door to switch the power off manually and release the door from the hold-open position

Technical data

• built-in electric hold-open device for fixing the door in an open position
• adjustable hold-open force
• hold-open range: from 80°
• operating voltage: 24 V DC
• corresponds with fire safety door requirements with an emergency opening function for the passive leaf, according to EN 1125
• certified for use in fire and smoke safety doors if the closing force is set to 3 or higher
• closer profile is screwed on the door leaf on the push or pull side
• suitable for left and right hand doors opening inwards or outwards
• max. opening angle: 130°
• max. door leaf width: 1400 mm
• distance between hinges: 1360 - 2800 mm
• min. inactive door leaf width: 380 mm
• valve control of closing speed, latching action and soft close, adjusted from the front
• closing force adjustable from the front; sizes 2-6 according to EN 1154 A

  • size '2'- for leaf width up to 850 mm
  • size '3'- for leaf width up to 950 mm
  • size '4'- for leaf width up to 1100 mm
  • size '5'- for leaf width up to 1250 mm
  • size '6'- for leaf width up to 1400 mm
• visual closing force indicator
• valve for overload control
• temperature compensating valves
• profile size: 287 x 47 x 60 mm
• rail size: 2665 x 55 x 30 mm
• rail has anti-vandal protection with a flexible Bowden cable
• elongated holes ensure horizontal adjustment of 4 mm
• standard tones: silver, white RAL9016, black RAL9005
• any RAL tone and stainless steel tone are available on individual request

Auxiliary tools

• Mounting plate for door closer 287 x 60 x 5 mm
  Closer can be secured on the surface in more places other than the 3 screws on the closer's body.
  Requires 2 pc.!


silver tone code: SB00004574	black RAL9005 code: SB00004159

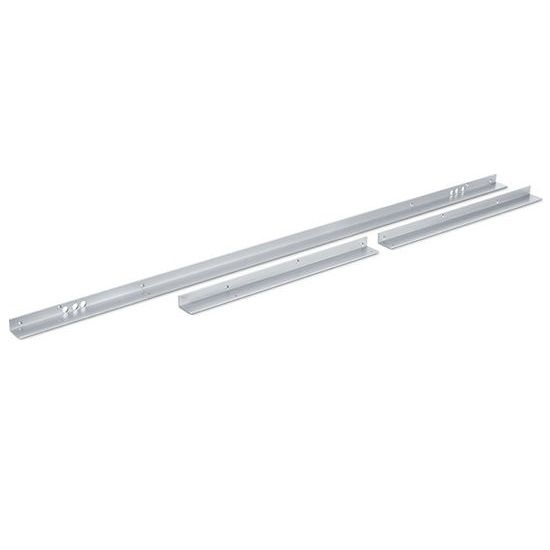

• Set of mounting brackets for guide rail
  Guide rail can be mounted onto the bottom of the frame.
  code: SB00004431

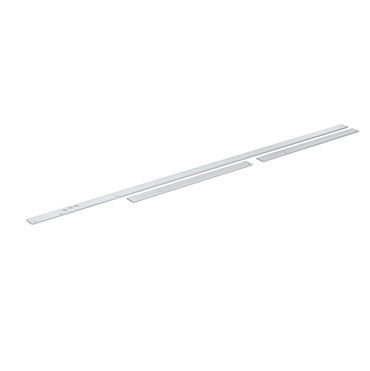

• Mounting plate
  The rail can be screwed on the rebate from the inside.
  code: SB00004432



• Integrated opening restrictor
  Alternative to doorstops.
  code: SB00004445 (1 or 2 pc. as required)

• Guide rail controller
  Service component - for the replacement of a broken plastic controller
  code: SB00004525

Assembly instructions

Assembly instructions for door closer TS 5000 L ISM

GEZE TS 5000 E-ISM BG guide rail
