Closing system for double leaf doors GEZE TS 5000L ISM BG

Closing system for double leaf doors GEZE TS 5000L ISM BG

Manufacturer - GEZE (Germany)

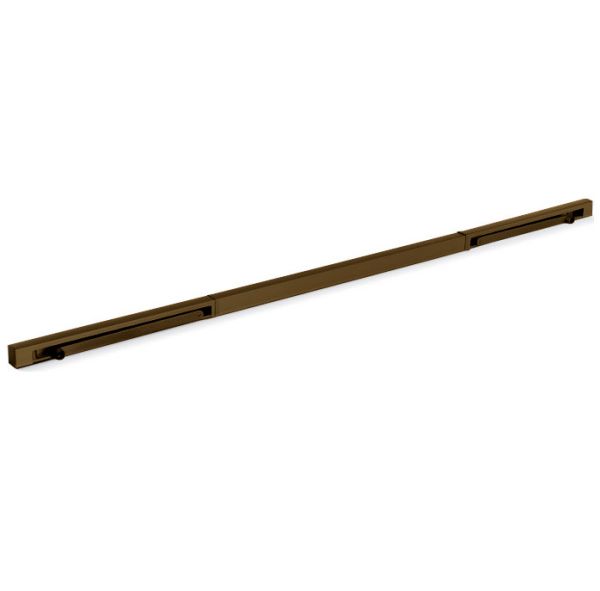

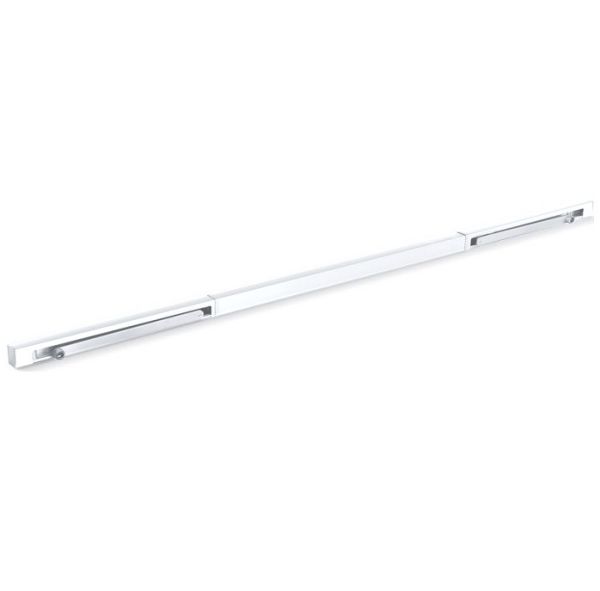

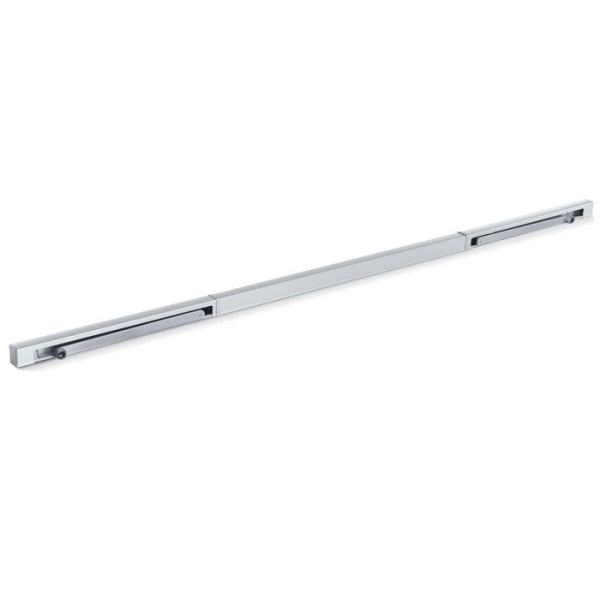

• closing system consisting of 2 door closers integrated into leaf and frame, and guide rail with integrated door closing coordinator
• door closing coordinator ensures correct closing order of door leaves – passive leaf first, then the active one
• corresponds with fire safety door requirements with emergency opening function for the passive leaf, according to EN 1125
• certified for use in fire and smoke safety doors on the condition that closing size is set on 3 or higher
• installed push side - closer body screwed onto leaf, guide rail onto frame
• suitable for both left and right hand doors opening either inwards or outwards
• max opening angle: 130°
• max width of one leaf: 1400 mm
• hinge clearance: 1360 - 2800 mm
• min passive leaf width: 380 mm
• front adjusted hydraulic latching action speed, thermo-constant closing speed and soft close mechanism
• front adjusted thermo-constant closing force
• adjustable closing force - sizes 2-6 according to EN 1154 A

  • size '2'- for leaf width up to  850 mm
  • size '3'- for leaf width up to  950 mm
  • size '4'- for leaf width up to  1100 mm
  • size '5'- for leaf width up to  1250 mm
  • size '6'- for leaf width up to  1400 mm
• visual closing force display

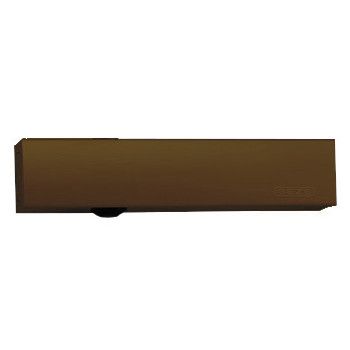

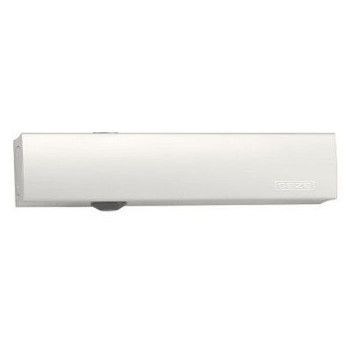

• body dimensions: 287 x 47 x 60 mm
• guide rail dimensions: 2730 x 55 x 30 mm
• horizontally adjustable in the installation position by 4 mm through elongated holes
• standad finishes: silver, white RAL9016, black RAL9005, dark brown

• Closer body mounting plate 287 x 60 x 5 mm
  Closer can be secured on the surface in more places other than the 3 screws on the closer's body.
  Requires 2 pc.!


silver tone Product code: SB00004574	white RAL9016 Product code: SB00004598	dark brown Product code: SB00004578	black RAL9005 Product code: SB00004159

• Set of guide rail casing brackets
  The guide rail can be screwed onto the bottom of the door frame.
  Product code: SB00004431

• Integrated opening restrictor
  Alternative to doorstops.
  Product code: SB00004445 (1 or 2 pc. as needed)



• Integrated mechanical Hold-Open device
  Holds the door in an open position. Only for use in doors without fire safety requirements!
  Product code: SB00004304

• Guide rail controller
  Service component - for replacement of a broken plastic controller
  Product code: SB00004525

Assembly instructions

Assembly instructions for door closer TS 5000 L ISM

GEZE TS 3000/5000 ISM BG - guide rail assembly instructions
