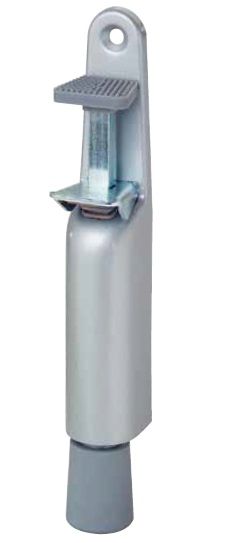

Doorstop KWS 1034 MS
Function
Installation
-
- vertical throw: 50 mm
- without side screws (concealed bottom screws)
- suitable also for doors with door closer
- max door weight: 40 kg
- max door size: 900 x 2000
- doorstop height: 210 mm
- fastening width: 30 mm
- rubber diameter: 28 mm
- matt or polished brass profile / brass bolt
- locking seal: grey rubber
Function
- Door can be held open at any opening angle by pushing down the bolt until locking seal sticks on the floor
- To release the door, gently push on the check plate.
Installation
- The door holder is screwed on the door leaf with 3 screws at the greatest possible distance from the door hinge.
- The distance from bottom edge of door to foot has to be 5 - 10 mm.
- It is recommended to use the positioning template included in the set.
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-
Doorstop, polished brassCode: SB00007326Art. Nr.: 1034.66Price:From €99.73In Stock: 0 pc.
| Manufacturer | KWS |
|---|---|
| purpose | for interior doors / for exterior doors |
| mode of operation | mechanical |
| installation type | to door leaf |
| diameter | 28 mm |
| throw | 50 mm |
| fastening type | concealed screws |
| fastening type | concealed screw fitting |
| leaf width | maks. 900 mm |
| leaf height | maks. 2000 mm |
| width | 30 mm |
| height | 210 mm |
| leaf material | universal |
| shape | rounded |
| leaf maximum weight | 40 kg |
| fastening elements | included in set |
| material (other) | bulta - misiņš |
| material | brass |
