Door handle CHEVRON M248

Product code
MB00001095
All prices include VAT
From €262.10
From €262.10
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Door handle CHEVRON M248
Manufacturer - OLIVARI (Italy)
Design: Zaha Hadid, 2015

Door handle Chevron, created by architect Zaha Hadid, combines her distinctive expressiveness with refined unobtrusiveness, as well as the continuity and natural elliptical shapes found in contemporary architecture. The square rose and the bold, straight end creates a singular contrast with the masterful curves of the grip. Clever juxtapositions between matt and polished structures make up the effect of continuous movement.


    • keyhole options: PZ, BAC
    • integrated handle spring
    • spindle square: 8 mm
    • handle length: 153 mm
    • rose size: 51 x 51 mm
    • rose thickness: 5 mm
    • special surface finish US with high resistance to humidity, salt, acid rain, temperature changes and UV rays
    • suitable for outdoors, including seaside areas, and in high traffic zones such as hotels and public buildings
    • material:
      • brass chrome-plated matt (CO)
      • brass chrome-plated polished (CR)
      • satin brass in anthracite SUPERANTHRACITE - with ultra-resistant surface finish (US)
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1. CHEVRON handle/rose set.PZ, superathracite satined
    CHEVRON handle/rose set.PZ, superathracite satined
    Code: SB00017904
    Art. Nr.: M248RY8B US
    Price:
    From €344.25
    In Stock: 0 set
  2. CHEVRON handle/rose set.BAC, superathracite satined
    CHEVRON handle/rose set.BAC, superathracite satined
    Code: SB00017901
    Art. Nr.: M248RSB8B US
    Price:
    From €320.78
    In Stock: 0 set

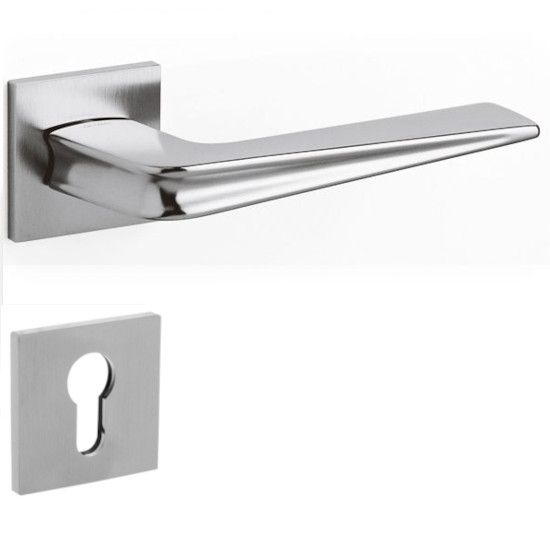

  3. CHEVRON handle/rose set.PZ, matt chrome
    CHEVRON handle/rose set.PZ, matt chrome
    Code: SB00017902
    Art. Nr.: M248RY8B CO
    Price:
    From €304.36
    In Stock: 0 set

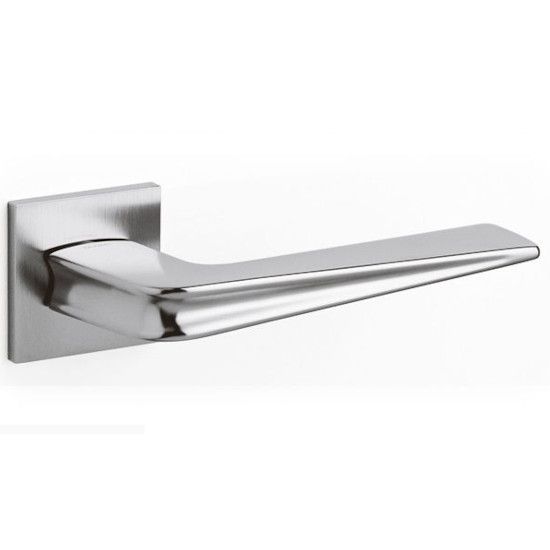

  4. CHEVRON handle/rose set.BAC, matt chrome
    CHEVRON handle/rose set.BAC, matt chrome
    Code: SB00017899
    Art. Nr.: M248RSB8B CO
    Price:
    From €280.89
    In Stock: 0 set

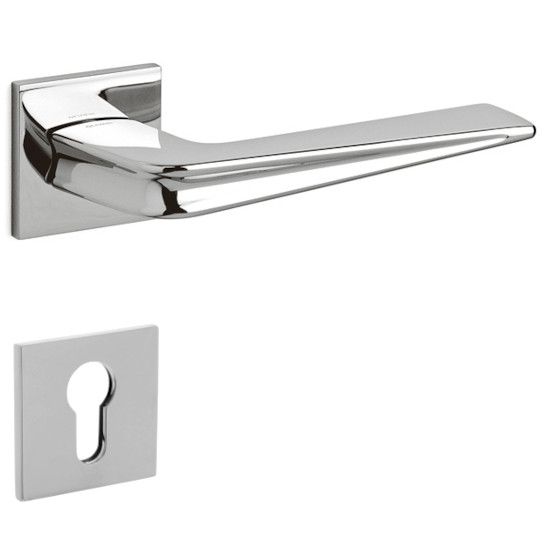

  5. CHEVRON handle/rose set.PZ, polished chrome
    CHEVRON handle/rose set.PZ, polished chrome
    Code: SB00017903
    Art. Nr.: M248RY8B CR
    Price:
    From €285.57
    In Stock: 0 set

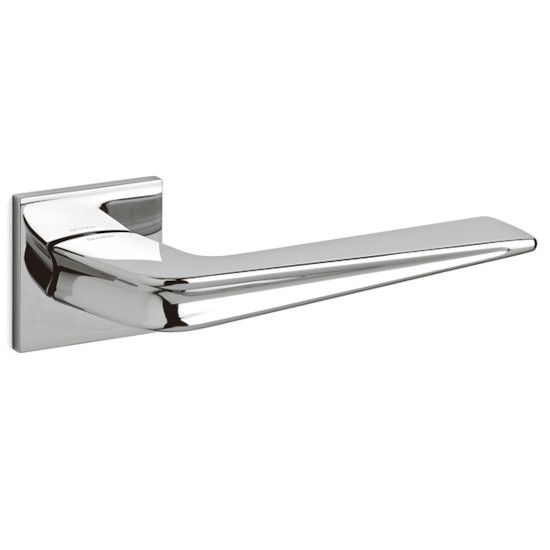

  6. CHEVRON handle/rose set.BAC, polished chrome
    CHEVRON handle/rose set.BAC, polished chrome
    Code: SB00017900
    Art. Nr.: M248RSB8B CR
    Price:
    From €262.10
    In Stock: 0 set

Additional products

  • Products
  • Price
  • In Stock
  • Quantity
  1. 4-week delivery for OLIVARI products
    4-week delivery for OLIVARI products
    Code: OLIPIEG
    Please add this surcharge if the total value of the OLIVARI products in your cart is below €750 (+VAT) and you wish to receive your order within 4 weeks.
    Price:
    From €60.50
    In Stock: 0 pc.
backplate/rose shape square
backplate/rose size 51 x 51 mm
backplate/rose thickness 5 mm
class as per EN 1906 not certified
compatibility standard German (DIN)
construction lever handles on both sides
designer Zaha Hadid
distance from leaf surface to outer edge of handle 68 mm
door direction universal use for DIN right and left hand doors
fastening elements included in set
fastening type concealed
fastening type covered
fastening type covered
fire safety not suitable for fire safety doors
handle square spindle size 8 mm
handle total length (from rose/backplate edge) 153 mm
installation type screw on
leaf material for wooden and metal doors
load capacity high
locking function PZ / BB / WC / BAC
Manufacturer OLIVARI
material brass
material properties (for specific finishes see tech. data) ultra resistant coating - suitable for use in aggressive environments
purpose for interior doors
set split roses
