Door handle ELIO-R
Product code
MB00009526
All prices include VAT
From
€72.00
From
€72.00
Only %1 left
Door handle ELIO-R
Manufacturer - Südmetall (Germany)
Manufacturer - Südmetall (Germany)
-
- handle/rose set for interior doors
- patented Südmetall TopSpeed construction for high usage requirements
- corresponds to grade 3 according to EN 1906
- keyhole options: PZ, BB, WC
- spindle square: 8 mm
- handle length: 130 mm
- rose diameter: 55 mm
- rose thickness: 10 mm
- handle protrusion from leaf surface: 61 mm
- integrated spring to cushion push and pull forces
- good quality, stable metal sub-construction with 7 mm fixing lugs
- metric thread connecting bolts M4
- handle fixed in rose construction
- bayonet-type rose fitting
- without grub screw
- set suitable for standard doors with leaf thickness 38 - 45 mm
- material: brass matt
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-

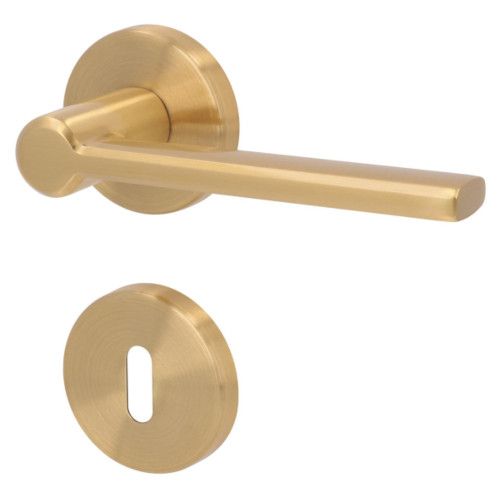

ELIO-R handle set with roses BB, brass mattCode: SB00022799Art. Nr.: 82.53.8300Price:From €72.00In Stock: 0 set -

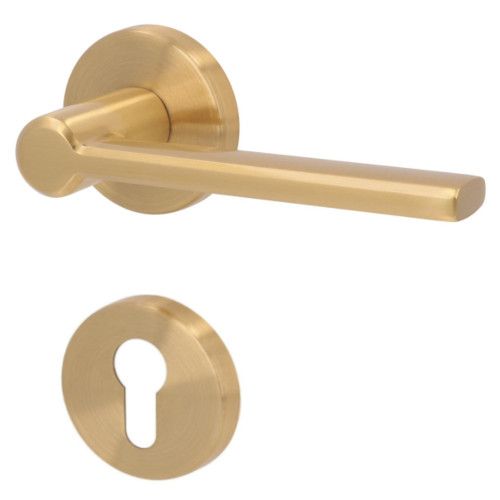

ELIO-R handle set with roses PZ, brass mattCode: SB00022800Art. Nr.: 82.53.8310Price:From €72.00In Stock: 0 set
-

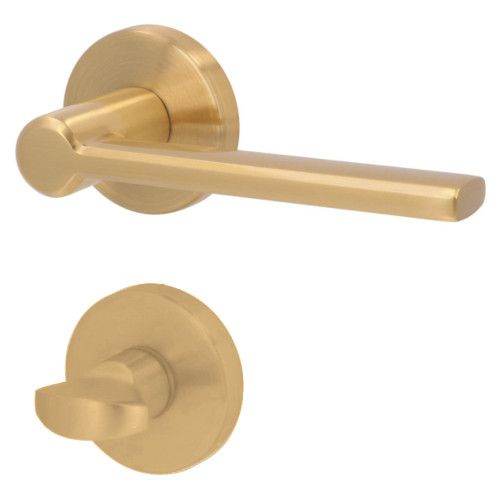

ELIO-R handle set with roses WC/8mm, brass mattCode: SB00022801Art. Nr.: 82.53.8340Price:From €81.07In Stock: 0 set
| WC ass četrkanta izmērs | 8 mm |
|---|---|
| backplate/rose shape | round |
| backplate/rose size | Ø55 mm |
| backplate/rose thickness | 10 mm |
| centring lug diameter | 7 mm |
| class as per EN 1906 | class 3 |
| compatibility standard | German (DIN) |
| construction | lever handles on both sides |
| distance from leaf surface to outer edge of handle | 61 mm |
| door direction | universal use for DIN right and left hand doors |
| fastening centre distance | 38 mm |
| fastening type | concealed screw fitting |
| fire safety | related fireproof model available |
| handle length | 130 mm |
| handle square spindle size | 8 mm |
| handle spring | integrated holding spring to cushion the push and pull forces |
| installation type | screw on |
| leaf material | for wooden and metal doors |
| load capacity | high |
| locking function | PZ / BB / WC |
| Manufacturer | SÜDMETALL |
| material: sub-construction | metal |
| material | brass |
| purpose | for interior doors |
| set | with split roses |
