Door handle FSB 1003 1735 ALU

Product code
MB00001382
All prices include VAT
From €96.05
From €96.05
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Aluminium door handle with round roses FSB 1003 1735
Manufacturer - FSB (Germany)
Design: Johannes Potente

Door handle FSB 1003, which takes the shape of a slim door, is a model for real aficionados. Johannes Potente took up the design concept and implemented it in an elegant handle in aluminium and stainless steel.


    • made for interior doors, adaptable for exterior doors
    • innovative, sturdy FSB ASL® construction with concealed handle guide ring
    • corresponds to grade 4 in use and durability according to EN 1906, suitable for heavy-duty doors and recommended for public buildings
    • construction durability tested on 1'000'000 cycles of use
    • integrated spring for lock load release with active angle of 45°
    • concealed handle guide ring
    • stainless steel reinforced sub-construction with stable fixed pivot axis
    • handle length: 130 mm
    • spindle: 8 mm
    • rose diameter: 55 mm
    • rose thickness: 7 mm
    • distance between fixed supporting lugs: 38 mm
    • standard set suitable for door thickness 39-58 mm
    • possible to order sets for door thickness 29-98 mm
    • handle is compatible also with rectangular roses, short and long rectangular backplates
    • suitable door knob can be added to all rose and backplate sets
    • keyhole options - PZ, BB, WC, BAC
    • backplate centre distance: PZ, BB - 72 mm, WC - 78 mm
    • material aluminium anodised:
      • F1-natural aluminium tone
      • F2-new silver tone
      • S4-bronze tone textured matt
      • S5-medium dark bronze tone
      • S7-dark bronze tone
      • S8-black
      • powder coated in black (RAL9005), white (RAL9016), anthracite (RAL7016) or grey-brown (RAL8019) tone.

If you wish to order a colour that is not available in our online shop, please select the relevant item and quantity to order, indicate the colour in a comment and complete your order. We will send you the information regarding the estimated delivery time and price.
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity

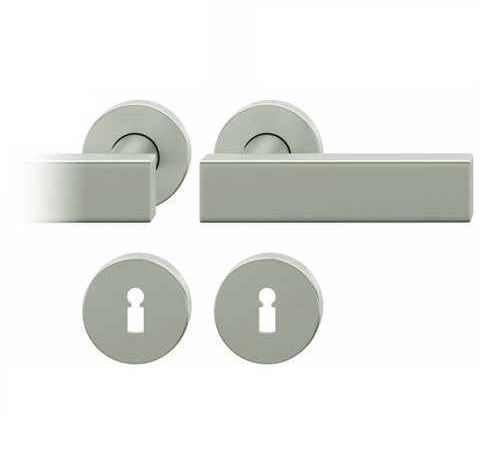

  1. Handle set on round roses BB, aluminium F1
    Handle set on round roses BB, aluminium F1
    Code: SB00000823
    Art. Nr.: 2 12 1003 01302 F1
    Price:
    From €112.69
    In Stock: 0 set

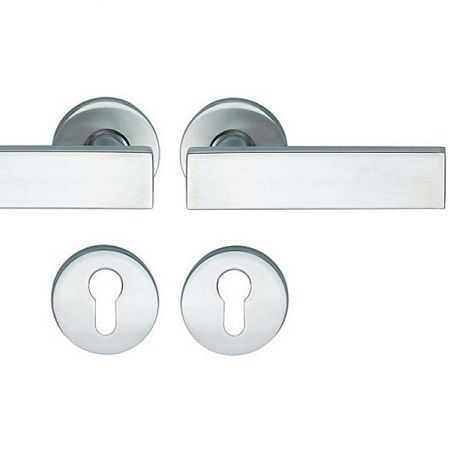

  2. Handle set on round roses PZ, aluminium F1
    Handle set on round roses PZ, aluminium F1
    Code: SB00000825
    Art. Nr.: 2 12 1003 01310 F1
    Price:
    From €112.69
    In Stock: 0 set

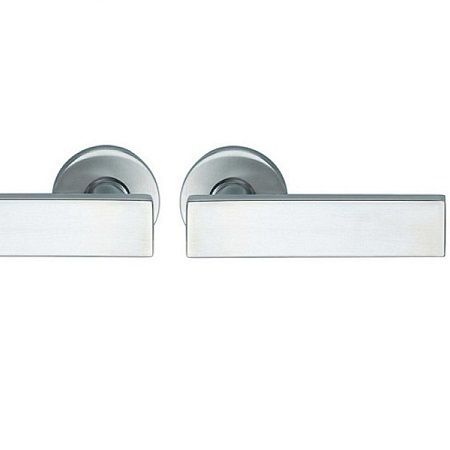

  3. Handle set on round roses BAC, aluminium F1
    Handle set on round roses BAC, aluminium F1
    Code: SB00000828
    Art. Nr.: 2 12 1003 01320 F1
    Price:
    From €96.05
    In Stock: 0 set
  4. Handle set on round roses WC, aluminium F1
    Handle set on round roses WC, aluminium F1
    Code: SB00000830
    Art. Nr.: 2 12 1003 01954 F1
    Price:
    From €139.98
    In Stock: 0 set

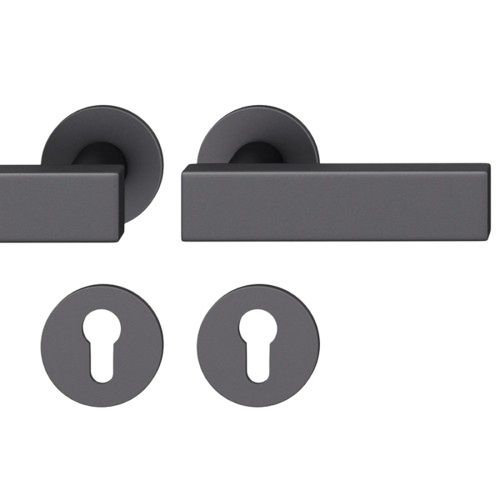

  5. Rokt./apaļo rozešu grt.PZ, DB39-58mm, alumīnijs melns 0810
    Rokt./apaļo rozešu grt.PZ, DB39-58mm, alumīnijs melns 0810
    Code: SB00000827
    Art. Nr.: 2 12 1003 01310 S8
    Price:
    From €146.49
    In Stock: 0 set
backplate/rose shape round
backplate/rose size Ø55 mm
backplate/rose thickness 7 mm
centring lug diameter 9 mm
class as per EN 1906 class 4
compatibility standard German (DIN)
construction lever handles on both sides
designer Johannes Potente
door direction universal use for DIN right and left hand doors
door thickness 39-58 mm (adaptable 29-38 mm and 59-98 mm)
fastening centre distance 38 mm
fastening type concealed screws
fastening type concealed screw fitting
fastening type concealed screws
fire safety related fireproof model available
handle construction ASL construction with stable fixed pivot axis
handle length 130 mm
handle square spindle size 8 mm
handle spring integrated holding spring to cushion the push and pull forces
installation type screw on
leaf material for wooden and metal doors
load capacity high
locking function PZ / BB / WC / BAC
Manufacturer FSB
material aluminium anodised blasted
material: sub-construction reinforced with stainless steel
purpose for interior doors / for exterior doors
set with split roses
