Door handle FSB 1003 1735 NT
Product code
MB00008639
All prices include VAT
From
€170.01
From
€170.01
Only %1 left
Stainless steel door handle with round roses FSB 1003 1735
Manufacturer - FSB (Germany)
Design: Johannes Potente
Door handle FSB 1003, which takes the shape of a slim door, is a model for real aficionados. Johannes Potente took up the design concept and implemented it in an elegant handle in aluminium and stainless steel.
PVD finishes in various tones available on request
Manufacturer - FSB (Germany)
Design: Johannes Potente
Door handle FSB 1003, which takes the shape of a slim door, is a model for real aficionados. Johannes Potente took up the design concept and implemented it in an elegant handle in aluminium and stainless steel.
-
- made for interior doors, adaptable for exterior doors
- innovative, sturdy FSB ASL® construction with concealed handle guide ring
- corresponds to grade 4 in use and durability according to EN 1906, suitable for heavy-duty doors and recommended for public buildings
- construction durability tested on 1'000'000 cycles of use
- integrated spring for lock load release with active angle of 45°
- concealed handle guide ring
- stainless steel reinforced sub-construction with stable fixed pivot axis
- handle length: 130 mm
- spindle: 8 mm
- rose diameter: 55 mm
- rose thickness: 7 mm
- distance between fixed supporting lugs: 38 mm
- standard set suitable for door thickness 39-58 mm
- possible to order sets for door thickness 29-98 mm
- handle is compatible also with rectangular roses, short and long rectangular backplates
- suitable door knob can be added to all rose and backplate sets
- keyhole options - PZ, BB, WC, BAC
- backplate centre distance: PZ, BB - 72 mm, WC - 78 mm
- material:
-
-
- stainless steel matt satin
-
PVD finishes in various tones available on request
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-

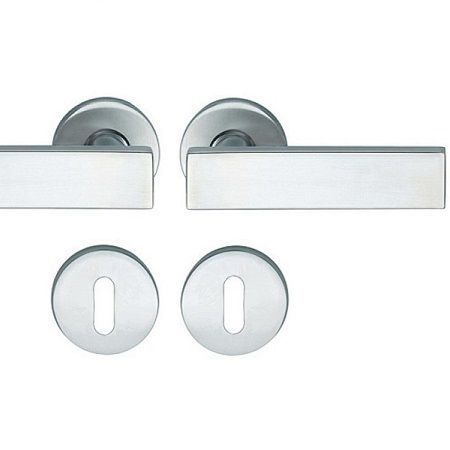

Handle set on round roses BB, stainless steel mattCode: SB00000824Art. Nr.: 2 12 1003 01302 NTPrice:From €200.50In Stock: 0 set -

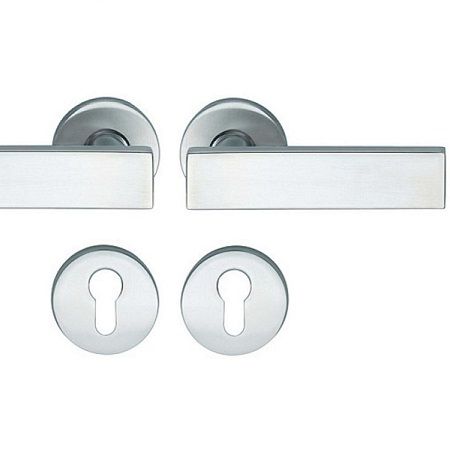

Handle set on round roses PZ, stainless steel mattCode: SB00000826Art. Nr.: 2 12 1003 01310 NTPrice:From €200.50In Stock: 0 set
-

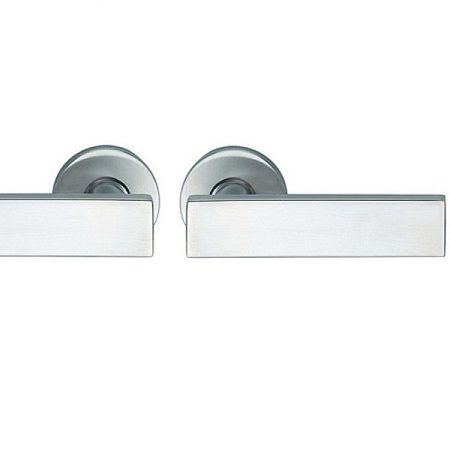

Handle set on round roses BAC, stainless steel mattCode: SB00000829Art. Nr.: 2 12 1003 01320 NTPrice:From €170.01In Stock: 0 set
| backplate/rose shape | round |
|---|---|
| backplate/rose size | Ø55 mm |
| backplate/rose thickness | 7 mm |
| centring lug diameter | 9 mm |
| class as per EN 1906 | class 4 |
| compatibility standard | German (DIN) |
| construction | lever handles on both sides |
| designer | Johannes Potente |
| door direction | universal use for DIN right and left hand doors |
| door thickness | 39-58 mm (adaptable 29-38 mm and 59-98 mm) |
| fastening centre distance | 38 mm |
| fastening type | concealed screws |
| fastening type | concealed screw fitting |
| fastening type | concealed screws |
| fire safety | related fireproof model available |
| handle construction | ASL construction with stable fixed pivot axis |
| handle length | 130 mm |
| handle square spindle size | 8 mm |
| handle spring | integrated holding spring to cushion the push and pull forces |
| installation type | screw on |
| leaf material | for wooden and metal doors |
| load capacity | high |
| locking function | PZ / BB / WC / BAC |
| Manufacturer | FSB |
| material | stainless steel |
| material: sub-construction | reinforced with stainless steel |
| material properties (for specific finishes see tech. data) | PVD coating - suitable for use in aggressive environments |
| purpose | for interior doors / for exterior doors |
| set | with split roses |
