Door handle FSB 1021 1735 NT
Product code
MB00008649
All prices include VAT
From
€238.93
From
€238.93
Only %1 left
Stainless steel door handle with round roses FSB 1021 1735
Manufacturer - FSB (Germany)
Design: FSB
The S. A. Loevy bronzeware factory's Catalogue no. 6, published in the 1930s, includes a variety of door fittings in which a round shank is combined with a flat grip section. In the 1990s, the Spanish designer Miguel Milà reinterpreted these features in the FSB 1126 model which combines elements of contemporary style with the architectural vision of the Bauhaus era.
PVD finishes in various tones available on request
Manufacturer - FSB (Germany)
Design: FSB
The S. A. Loevy bronzeware factory's Catalogue no. 6, published in the 1930s, includes a variety of door fittings in which a round shank is combined with a flat grip section. In the 1990s, the Spanish designer Miguel Milà reinterpreted these features in the FSB 1126 model which combines elements of contemporary style with the architectural vision of the Bauhaus era.
-
- made for interior doors, adaptable for exterior doors
- innovative, sturdy FSB ASL® construction with concealed handle guide ring
- corresponds to grade 4 in use and durability according to EN 1906, suitable for heavy-duty doors and recommended for public buildings
- construction durability tested on 1'000'000 cycles of use
- integrated spring for lock load release with active angle of 45°
- concealed handle guide ring
- stainless steel reinforced sub-construction with stable fixed pivot axis
- handle length: 137 mm
- spindle: 8 mm
- standard set suitable for door thickness 39-58 mm
- possible to order sets for door thickness 29-98 mm
- may be used with short or long rectangular backplates
- matching knob can be added to all rose and backplate sets
- keyhole options: PZ, BB, WC, BAC
- backplate centre distance: PZ, BB - 72 mm, WC - 78 mm
- material:
-
-
- stainless steel matt satin
-
PVD finishes in various tones available on request
All prices include VAT
- Products
- Price
- In Stock
- Quantity
-

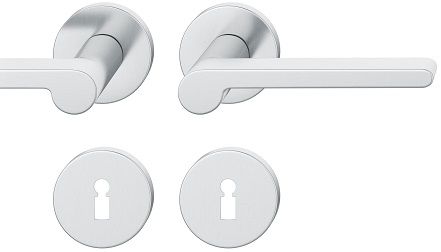

Handle set on round roses BB, stainless steel mattCode: SB00000923Art. Nr.: 2 12 1021 01302 NTPrice:From €269.41In Stock: 0 set -

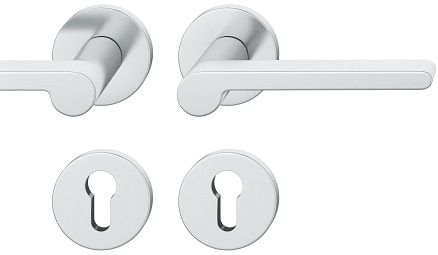

Handle set on round roses PZ, stainless steel mattCode: SB00000926Art. Nr.: 2 12 1021 01310 NTPrice:From €269.41In Stock: 0 set
-

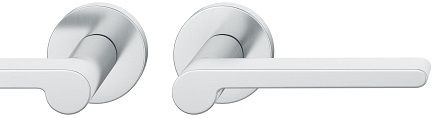

Handle set on round roses BAC, stainless steel mattCode: SB00000929Art. Nr.: 2 12 1021 01320 NTPrice:From €238.93In Stock: 0 set
| backplate/rose shape | round |
|---|---|
| backplate/rose size | Ø55 mm |
| backplate/rose thickness | 7 mm |
| centring lug diameter | 9 mm |
| class as per EN 1906 | class 4 |
| compatibility standard | German (DIN) |
| construction | lever handles on both sides |
| designer | Workshop FSB |
| door direction | universal use for DIN right and left hand doors |
| door thickness | 39-58 mm (adaptable 29-38 mm and 59-98 mm) |
| fastening centre distance | 38 mm |
| fastening type | concealed screws |
| fastening type | concealed screw fitting |
| fastening type | concealed screws |
| fire safety | not suitable for fire safety doors |
| handle construction | ASL construction with stable fixed pivot axis |
| handle length | 137 mm |
| handle square spindle size | 8 mm |
| handle spring | integrated holding spring to cushion the push and pull forces |
| installation type | screw on |
| leaf material | for wooden and metal doors |
| load capacity | high |
| locking function | PZ / BB / WC / BAC |
| Manufacturer | FSB |
| material | stainless steel |
| material: sub-construction | reinforced with stainless steel |
| material properties (for specific finishes see tech. data) | PVD coating - suitable for use in aggressive environments |
| purpose | for interior doors / for exterior doors |
| set | with split roses |
