Bronze door handle with round roses FSB 1045 1735
Manufacturer - FSB (Germany)

The FSB 1045 is based on the FSB model 1015, which was conceived in the 1930s by a company called Wehag. Given the continued use of the FSB 1015 model in commercial buildings, FSB have created a new version of this design conforming to DIN EN 179.

    • made for interior doors, adaptable for exterior doors
    • complies with EN 179 requirements for emergency door equipment
    • innovative, sturdy FSB ASL® construction with concealed handle guide ring
    • corresponds to grade 4 in use and durability according to EN 1906, suitable for heavy-duty doors and recommended for public buildings
    • construction durability tested on 1'000'000 cycles of use
    • integrated spring for lock load release with active angle of 45°
    • concealed handle guide ring
    • stainless steel reinforced sub-construction with stable fixed pivot axis
    • handle length: 132 mm
    • spindle: 8 mm
    • standard set suitable for door thickness 39-58 mm
    • possible to order sets for door thickness 29-98 mm
    • may be used with short or long rectangular backplates
    • matching knob can be added to all rose and backplate sets
    • keyhole options: PZ, BB, WC, BAC
    • backplate centre distance: PZ, BB - 72 mm, WC - 78 mm
    • material: bronze (B)
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity
  1.  Handle set on round roses PZ, light bronze

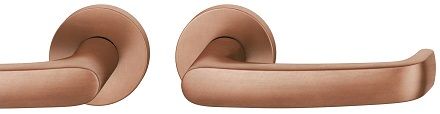

    Handle set on round roses PZ, light bronze
    Code: SB00001018
    Art. Nr.: 0 12 1045 01310 7615
    From €344.09
    In Stock: 0 set
  2.  Handle set on round roses BAC, light bronze
    Handle set on round roses BAC, light bronze
    Code: SB00001022
    Art. Nr.: 0 12 1045 01320 7615
    From €301.88
    In Stock: 0 set
backplate/rose shape round
backplate/rose size Ø55 mm
backplate/rose thickness 7 mm
centring lug diameter 9 mm
class as per EN 1906 class 4
compatibility standard German (DIN)
construction lever handles on both sides
door direction universal use for DIN right and left hand doors
door thickness 39-58 mm (adaptable 29-38 mm and 59-98 mm)
fastening centre distance 38 mm
fastening type concealed screws
fastening type concealed screw fitting
fastening type concealed screws
fire safety related fireproof model available
handle construction ASL construction with stable fixed pivot axis
handle length 132 mm
handle square spindle size 8 mm
handle spring integrated holding spring to cushion the push and pull forces
installation type screw on
leaf material for wooden and metal doors
load capacity high
locking function PZ / BB / WC / BAC
Manufacturer FSB
material bronze
material: sub-construction reinforced with stainless steel
purpose for interior doors / for exterior doors
set with split roses
suitable for emergency exits related model available, complies with EN 179 requirements
