Door handle FSB 1076 1735 NT

Product code
MB00008663
All prices include VAT
From €153.21
From €153.21
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.

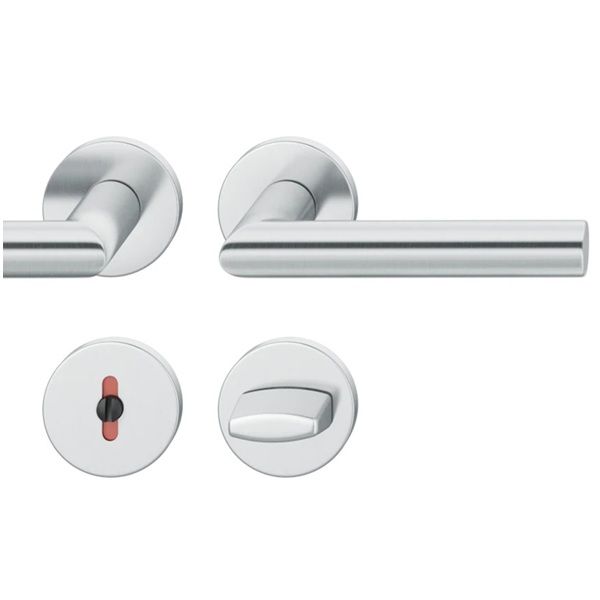

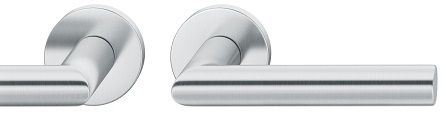

Stainless steel door handle with round roses FSB 1076 1735
Manufacturer - FSB (Germany)

Classic and discreet design. The architect Robert Mallet-Stevens (1886–1945) was the one who hit upon the idea of cutting a round tube in two and mitring the ends together again at a right angle. His creation is today known as the 'Frankfurt model'. The handle was rediscovered when the architecture museum there was rebuilt and proceeded to take the market by storm.

    • made for interior doors, adaptable for exterior doors
    • innovative, sturdy FSB ASL® construction with concealed handle guide ring
    • corresponds to grade 4 in use and durability according to EN 1906, suitable for heavy-duty doors and recommended for public buildings
    • construction durability tested on 1'000'000 cycles of use
    • integrated spring for lock load release with active angle of 45°
    • concealed handle guide ring
    • stainless steel reinforced sub-construction with stable fixed pivot axis
    • handle length: 137 mm
    • spindle: 8 mm
    • standard set suitable for door thickness 39-58 mm
    • possible to order sets for door thickness 29-98 mm
    • may be used with short or long, rectangular backplates
    • matching knob can be added to all rose and backplate sets
    • keyhole options: PZ, BB, WC, BAC
    • backplate centre distance: PZ, BB - 72 mm, WC - 78 mm
    • material:
      • stainless steel matt satin

PVD finishes in various tones available on request
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity

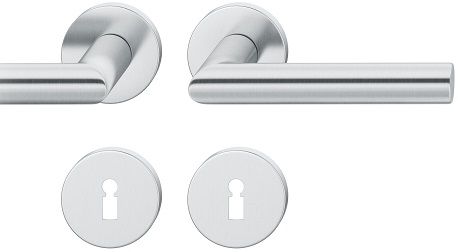

  1. Handle set on round roses BB, stainless steel matt
    Handle set on round roses BB, stainless steel matt
    Code: SB00001082
    Art. Nr.: 2 12 1076 01302 NT
    Price:
    From €182.26
    In Stock: 0 set

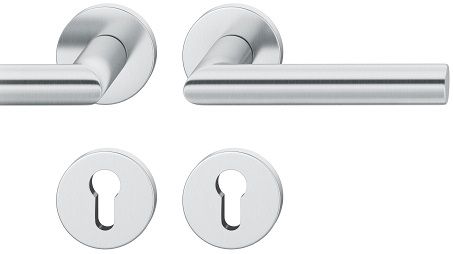

  2. Handle set on round roses PZ, stainless steel matt
    Handle set on round roses PZ, stainless steel matt
    Code: SB00001086
    Art. Nr.: 2 12 1076 01310 NT
    Price:
    From €182.26
    In Stock: 0 set
  3. Handle set on round roses BAC, stainless steel matt
    Handle set on round roses BAC, stainless steel matt
    Code: SB00001095
    Art. Nr.: 2 12 1076 01320 NT
    Price:
    From €153.21
    In Stock: 0 set
backplate/rose shape round
backplate/rose size Ø55 mm
backplate/rose thickness 7 mm
centring lug diameter 9 mm
class as per EN 1906 class 4
compatibility standard German (DIN)
construction lever handles on both sides
door direction universal use for DIN right and left hand doors
door thickness 39-58 mm (adaptable 29-38 mm and 59-98 mm)
fastening centre distance 38 mm
fastening type concealed screws
fastening type concealed screw fitting
fastening type concealed screws
fire safety related fireproof model available
handle construction ASL construction with stable fixed pivot axis
handle length 137 mm
handle square spindle size 8 mm
handle spring integrated holding spring to cushion the push and pull forces
installation type screw on
leaf material for wooden and metal doors
load capacity high
locking function PZ / BB / WC / BAC
Manufacturer FSB
material stainless steel
material: sub-construction reinforced with stainless steel
material properties (for specific finishes see tech. data) PVD coating - suitable for use in aggressive environments
purpose for interior doors / for exterior doors
set with split roses
suitable for emergency exits related model available, complies with EN 179 requirements
