Door handle FSB 1102 1735 B

Product code
MB00008669
All prices include VAT
From €446.95
From €446.95
Only %1 left
Reset selection
Would like different processing and/or package?
The selected product is currently out of stock.
Bronze door handle with round roses FSB 1102 1735
Manufacturer - FSB (Germany)
Design: Gropius / Alessandro Mendini

The FSB 1102 is rooted in Alessandro Mendini's redesign of the celebrated Gropius handle, which he created in 1986.

    • made for interior doors, adaptable for exterior doors
    • innovative, sturdy FSB ASL® construction with concealed handle guide ring
    • corresponds to grade 4 in use and durability according to EN 1906, suitable for heavy-duty doors and recommended for public buildings
    • construction durability tested on 1'000'000 cycles of use
    • integrated spring for lock load release with active angle of 45°
    • concealed handle guide ring
    • stainless steel reinforced sub-construction with stable fixed pivot axis
    • handle length: 127 mm
    • spindle: 8 mm
    • standard set suitable for door thickness 39-58 mm
    • possible to order sets for door thickness 29-98 mm
    • compatible also with round or square roses, short and long rectangular backplates
    • suitable door knob can be added to all rose and backplate sets
    • keyhole options: PZ, BB, WC, BAC
    • backplate centre distance: PZ, BB - 72 mm, WC - 78 mm
    • material: bronze (B)
    •
All prices include VAT
  • Products
  • Price
  • In Stock
  • Quantity

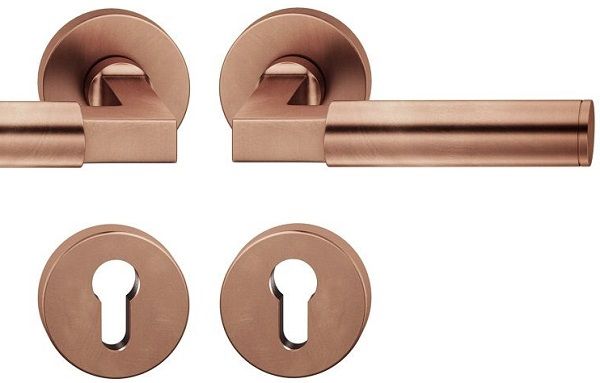

  1. Handle set with round roses PZ, door thickn.DB 39-58 mm, light bronze
    Handle set with round roses PZ, door thickn.DB 39-58 mm, light bronze
    Code: SB00001163
    Art. Nr.: 0 12 1102 01310 7615
    Price:
    From €446.95
    In Stock: 0 set

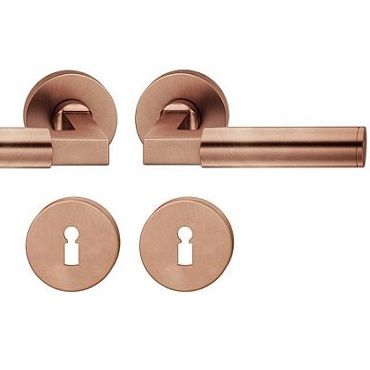

  2. Handle set with round roses BB, door thickn. DB 39-58 mm, light bronze
    Handle set with round roses BB, door thickn. DB 39-58 mm, light bronze
    Code: SB00001162
    Art. Nr.: 0 12 1102 01302 7615
    Price:
    From €446.95
    In Stock: 0 set

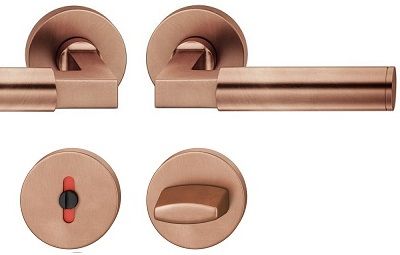

  3. Handle set with round roses WC, door thickn.DB 39-58 mm, light bronze
    Handle set with round roses WC, door thickn.DB 39-58 mm, light bronze
    Code: SB00001165
    Art. Nr.: 0 12 1102 01954 7615
    Price:
    From €508.16
    In Stock: 0 set
backplate/rose shape round
backplate/rose size Ø55 mm
backplate/rose thickness 7 mm
centring lug diameter 9 mm
class as per EN 1906 class 4
compatibility standard German (DIN)
construction lever handles on both sides
designer Gropius / Alessandro Mendini
door direction universal use for DIN right and left hand doors
door thickness 39-58 mm (adaptable 29-38 mm and 59-98 mm)
fastening centre distance 38 mm
fastening type concealed screws
fastening type concealed screws
fastening type concealed screw fitting
fire safety related fireproof model available
handle construction ASL construction with stable fixed pivot axis
handle diameter 22 mm
handle length 127 mm
handle square spindle size 8 mm
handle spring integrated holding spring to cushion the push and pull forces
installation type screw on
leaf material for wooden and metal doors
load capacity high
locking function PZ / BB / WC / BAC
Manufacturer FSB
material: sub-construction reinforced with stainless steel
material bronze
purpose for interior doors / for exterior doors
set with split roses
