Door handle FSB 1160 1735 NT
Manufacturer - FSB (Germany)
This handle has a round cross section, with the lever handle also tapering from the shank to the end of the handle following the rule of the golden ratio. Discreet and solid handle model with a secure grip.
-
- made for interior doors, adaptable for exterior doors
- innovative, sturdy FSB ASL® construction with concealed handle guide ring
- corresponds to grade 4 in use and durability according to EN 1906, suitable for heavy-duty doors and recommended for public buildings
- construction durability tested on 1'000'000 cycles of use
- integrated spring for lock load release with active angle of 45°
- concealed handle guide ring
- stainless steel reinforced sub-construction with stable fixed pivot axis
- handle length: 150 mm
- spindle: 8 mm
- standard set suitable for door thickness 39-58 mm
- possible to order sets for door thickness 29-98 mm
- may be used with short or long rounded backplates
- matching knob can be added to all rose and backplate sets
- keyhole options: PZ, BB, WC, BAC
- backplate centre distance: PZ, BB - 72 mm, WC - 78 mm
- material: stainless steel matt satin
PVD finishes in various tones available on request
- Products
- Price
- In Stock
- Quantity
-

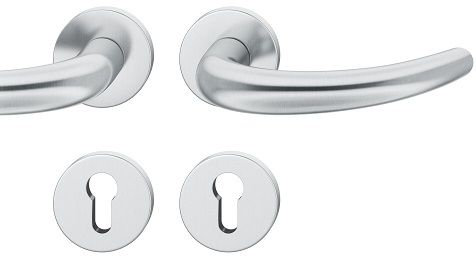

Handle set on round roses PZ, stainless steel mattCode: SB00001266Art. Nr.: 0 12 1160 01310 6204Price:From €194.99In Stock: 0 set
-

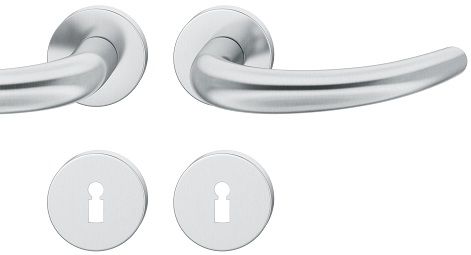

Handle set on round roses BB, stainless steel mattCode: SB00001264Art. Nr.: 0 12 1160 01302 6204Price:From €194.99In Stock: 0 set
-

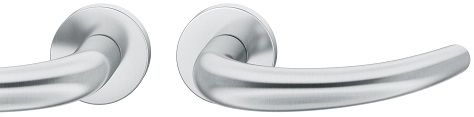

Handle set on round roses BAC, stainless steel mattCode: SB00001268Art. Nr.: 0 12 1160 01320 6204Price:From €164.52In Stock: 0 set
backplate/rose shape | round |
---|---|
backplate/rose size | Ø55 mm |
backplate/rose thickness | 7 mm |
centring lug diameter | 9 mm |
class as per EN 1906 | class 4 |
compatibility standard | German (DIN) |
construction | lever handles on both sides |
door direction | universal use for DIN right and left hand doors |
door thickness | 39-58 mm (adaptable 29-38 mm and 59-98 mm) |
fastening centre distance | 38 mm |
fastening type | concealed screws |
fastening type | concealed screw fitting |
fastening type | concealed screws |
fire safety | related fireproof model available |
handle construction | ASL construction with stable fixed pivot axis |
handle length | 150 mm |
handle square spindle size | 8 mm |
handle spring | integrated holding spring to cushion the push and pull forces |
installation type | screw on |
leaf material | for wooden and metal doors |
load capacity | high |
locking function | PZ / BB / WC / BAC |
Manufacturer | FSB |
material | stainless steel |
material: sub-construction | reinforced with stainless steel |
material properties (for specific finishes see tech. data) | PVD coating - suitable for use in aggressive environments |
purpose | for interior doors / for exterior doors |
set | with split roses |
suitable for emergency exits | related model available, complies with EN 179 requirements |
